relay turn off delay


Post ReplyPost New Topic
< Prev Topic Next Topic >
tuckie
Member - Posts: 14
Member spacespace
Joined: December 19, 2004
Location: United States
Posted: January 12, 2005 at 3:36 PM / IP Logged

I'm going to be installing a computer into my car.  For the time being, im going to be using an old dell, so a dc-dc powersupply is out.  What I want to do is wire up an inverter so that it will turn off say after 5 or so minutes (or could it be controlled through the 12v line of the computer?).  This would give time for the computer to shut down, but prevent the inverter from draining the battery.

thanks in advance!

hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: January 15, 2005 at 1:30 AM / IP Logged

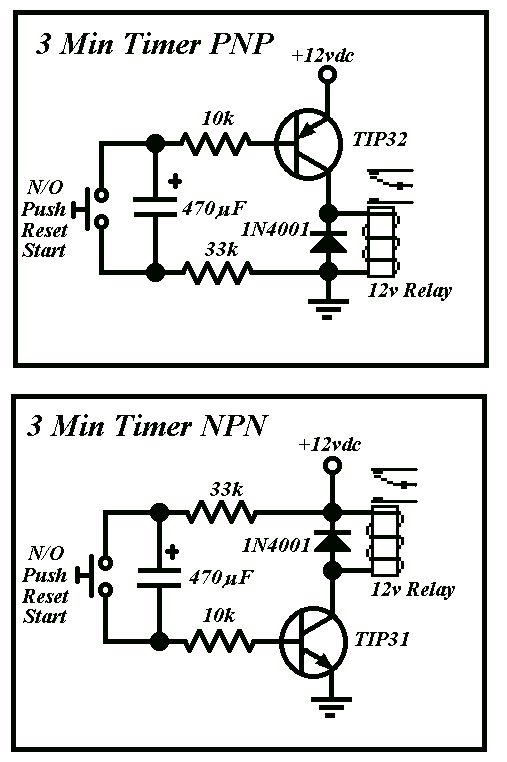

relay turn off delay -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
