daverst1982

Member - Posts: 1

Joined: March 08, 2005

Location: United Kingdom

Posted: March 08, 2005 at 1:09 PM / IP Logged

I need to wire a relay(s) for a motor that draws 20 amps so it rverses polarity for forward and reverse operated by a two position switch. Please can anyone help Thankyou

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: March 14, 2005 at 9:10 AM / IP Logged

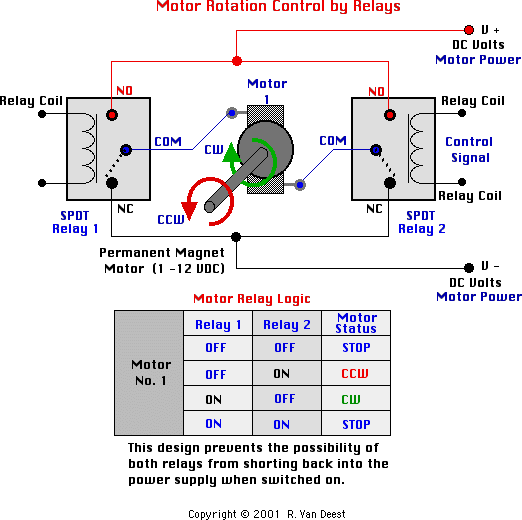

reverse 12v motor relays -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: March 14, 2005 at 9:14 AM / IP Logged

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top
