Simple relay diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
timkins
Member - Posts: 37
Member spacespace
Joined: July 21, 2004
Location: United States
Posted: May 11, 2005 at 6:25 PM / IP Logged
I am trying to put a relay in an electric fan circuit. It has a simple on/off switch in the dash. I am having a very difficult time visualizing the wiring in my head so a simple diagram showing the 12V+ and the 12V- and what wire goes where would be appreciated.  Thanks
Captanham
Silver - Posts: 365
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 18, 2004
Location: United States
Posted: May 11, 2005 at 8:15 PM / IP Logged

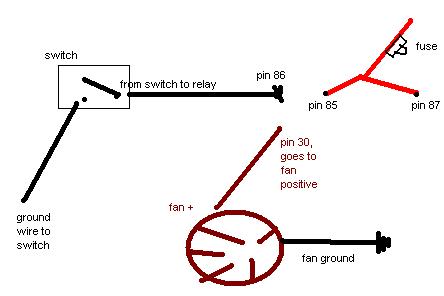

Simple relay diagram -- posted image.

hope this helps, it's a pretty simple setup, make sure you get that fused power either from the battery or somewere else that you are sure can spare the extra amperage of your fan

Bad Boys Customs
    audio - video - security
If you use it. Suport it. Donate to the 12 volt!
Captanham
Silver - Posts: 365
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 18, 2004
Location: United States
Posted: May 11, 2005 at 8:17 PM / IP Logged
btw, this setup will use a ground on the little switch, so there is no + inside the car that you would have to fuse, just bolt it to something metal or something like that
Bad Boys Customs
    audio - video - security
If you use it. Suport it. Donate to the 12 volt!
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: May 14, 2005 at 12:35 AM / IP Logged

Simple relay diagram -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: May 17, 2005 at 9:11 PM / IP Logged

HERE IS THE SAME ONE MADE SIMPLER

Simple relay diagram -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
