Wiring 3 type r's


Post ReplyPost New Topic
< Prev Topic Next Topic >
Kyel
Member - Posts: 4
Member spacespace
Joined: May 15, 2005
Location: United States
Posted: May 15, 2005 at 10:06 PM / IP Logged
Basics: 3 Alpine type r (4ohm dual voice coil)
        Viper audio 1200d (made by DEI)
Dilemma:

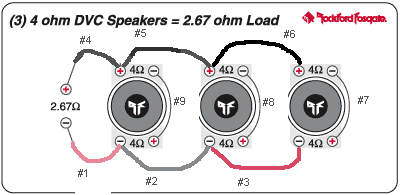

I am wiring three type r's and i am doing it as pictured. I will post pictures of my custom enclosure tomorrow.
Wiring 3 type r's -- posted image.
but my amp is a DEI (directed, viper etc) and where you connect the power, ground, remote, speaker + - it is not your average screw connecter but a seperate peice that the wire is inserted into and is than plugged into the amp.
my question is as follows.
when i run all three positive and negative wires... they will not fit in the given hole. Could i run them (12 ga) and use a butt connector to splice all three into a single (8-12 ga) wire and run that to the amp?
essentially i would be running three wires the +, or - and than turning them into one wire before entering the amp.
_____________
_____________ [splice] amp (+)
_____________
_____________
_____________ [splice] amp (-)
_____________
or would that restrict them, thanks for your time
Alpine Guy
Platinum - Posts: 2,478
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: October 18, 2003
Location: Canada
Posted: May 15, 2005 at 10:39 PM / IP Logged
if you follow the directions your showed above you will only have 1 set of wires going to your amp, , i dunno where your getting these 3 wires from.
