al3372

Member - Posts: 3

Joined: July 14, 2005

Location: United States

Posted: July 16, 2005 at 11:59 AM / IP Logged

Thanks Auex.

One more question (possibly a really dumb one but again - serious newbie here)... Am I reading the diagram correctly in that there is no connection between the car's and the radio's accessory wire? So the radio's accessory wire goes into the car's radio harness and ends there?

Thanks again.

Back to Top

al3372

Member - Posts: 3

Joined: July 14, 2005

Location: United States

Posted: July 16, 2005 at 12:02 PM / IP Logged

al3372 wrote:

So the radio's accessory wire goes into the car's radio harness and ends there?

Sorry - that last line should have read "So the CAR's accessory wire goes into the car's radio harness and ends there?"

Back to Top

12vbattery

Member - Posts: 17

Joined: June 19, 2004

Location: Canada

Posted: August 07, 2005 at 1:35 PM / IP Logged

the car's acc must be somewhere

Back to Top

12vbattery

Member - Posts: 17

Joined: June 19, 2004

Location: Canada

Posted: August 07, 2005 at 5:29 PM / IP Logged

door closed circuit closed at 12v how would i make this work

Back to Top

12vbattery

Member - Posts: 17

Joined: June 19, 2004

Location: Canada

Posted: August 07, 2005 at 10:11 PM / IP Logged

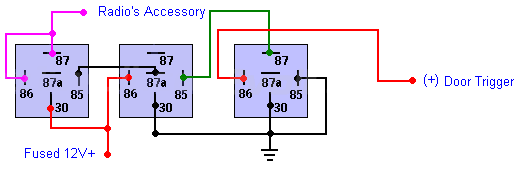

will this work?

Radio On Until Door Opened - Page 2 -- posted image.

Back to Top

auex

Platinum - Posts: 5,041

This member has made a donation to the12volt.com. Click here for more info.

Joined: December 23, 2002

Location: Arizona, United States

Posted: August 07, 2005 at 11:50 PM / IP Logged

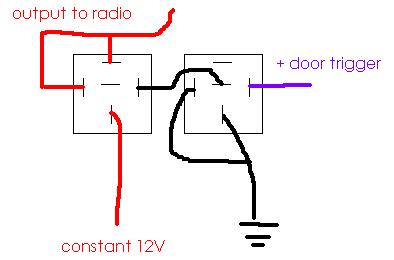

This is simpler.

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

Back to Top

auex

Platinum - Posts: 5,041

Joined: December 23, 2002

Location: Arizona, United States

Posted: August 07, 2005 at 11:53 PM / IP Logged

12vbattery wrote:

the car's acc must be somewhere

The car's acc wire goes to the fuse box, gets distributed. The wire goes from the fuse directly to the radio and is in the wiring harness. Now this depends on the vehicle. Some new vehicles have databus that turns the radio on.

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

Back to Top

12vbattery

Member - Posts: 17

Joined: June 19, 2004

Location: Canada

Posted: August 08, 2005 at 9:01 AM / IP Logged

thanmk auex "IPODs are still stupid!!!" yeah they are

Back to Top
