I am looking for information about the location of the VSS wire(s) for a 2005 Acura TSX without the navigation system.

Thanks.

teke0611

Member - Posts: 3

Joined: July 09, 2005

Location: United States

Posted: July 09, 2005 at 5:54 PM / IP Logged

Unfortunately, the TSX transmission does not have a VSS at all. VSS - 05 Acura TSX no Nav -- posted image.

Vehicle speed is calculated by the ecu from the input on the mainshaft sensor in the transmission, like the K series Accord and brand new RSX.

eschamp

Member - Posts: 4

Joined: June 27, 2005

Posted: July 09, 2005 at 7:50 PM / IP Logged

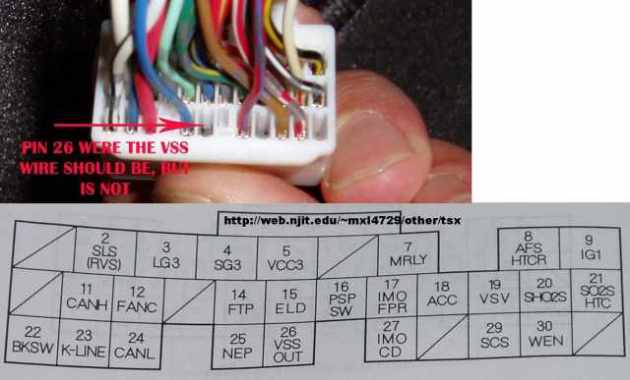

A member of a different forum sent me a picture of the connector where the VSS signal terminates on a non-navi car. I think it's in the ECU connector, at pin 26. I don't know how to upload a picture here so if you send me your email address (Or tell me how to upload the pic), I'll be happy to share it with you.

Thanks.

eschamp

Member - Posts: 4

Joined: June 27, 2005

Posted: July 09, 2005 at 8:01 PM / IP Logged

Here's the picture.

teke0611

Member - Posts: 3

Joined: July 09, 2005

Location: United States

Posted: July 10, 2005 at 11:00 PM / IP Logged

According to the Honda diagram, E26 is only in the harness on navigation-equipped cars. It is a VSS output from the main computer. I haven't tried, but it is possible that the ecu in a non-navi car will still send the pulse to this pin.

Here's a link to a PDF for a 2005 Accord ecu at this pin, which has the same pinout. http://www.billshonda.com/reference/2005_Accord_AC0305023003A.pdf

Maybe that helps a bit. ?

eschamp

Member - Posts: 4

Joined: June 27, 2005

Posted: July 11, 2005 at 11:19 AM / IP Logged

That's a much better diagram than what's in the Acura service manual!

Aha! I discovered the pinout diagram on page 11-25 (the Fuel and Emissions section -- silly me was looking at Electrical!). And it says that pin 26 of connector E is VSS OUT (with no notes about nav or non-nav! :-)

Thanks.

teke0611

Member - Posts: 3

Joined: July 09, 2005

Location: United States

Posted: July 23, 2005 at 4:27 PM / IP Logged

Hope that helped out a little. Best luck!
