Routing power wire on 98 Jimmy


Post ReplyPost New Topic
< Prev Topic Next Topic >
sharkrider770
Member - Posts: 2
Member spacespace
Joined: July 08, 2005
Posted: July 23, 2005 at 9:04 PM / IP Logged
I would like to hook up my amp in my 98 Jimmy 4 door SLT. The only problem I'm having is locating a good location to route the 8 gauge power wire through the firewall. My first choice is to stay completely away from drilling new holes. If anyone else has wired a Jimmy/Blazer similar or knows a good location that would kick. (Any pictures available would also help!) Thanks in advance.
zezebiah
Copper - Posts: 55
Copper spacespace
Joined: April 10, 2005
Posted: July 24, 2005 at 4:52 AM / IP Logged
well in my 95 blazer I routed through the washer fluid bushing... it was big enough to fit 4 gauge so 8 should fit easily... just dont break the tube or you lose your wiper fluid.
sharkrider770
Member - Posts: 2
Member spacespace
Joined: July 08, 2005
Posted: July 24, 2005 at 3:52 PM / IP Logged

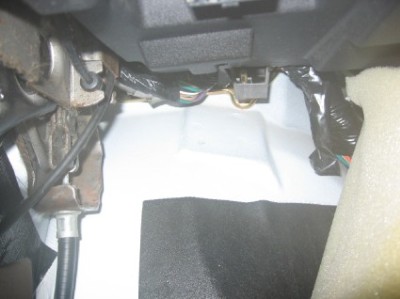

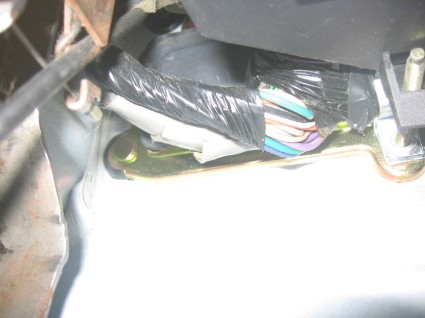

Where did you find this bushing? I've attached pictures of about the only thing I can see to the left of the steering wheel without taking parts off under the dash or pulling the carpet all the way back.
Routing power wire on 98 Jimmy -- posted image.
Routing power wire on 98 Jimmy -- posted image.

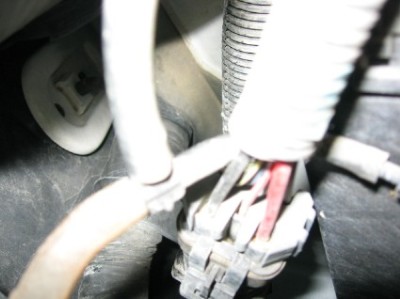

Under the hood view
Routing power wire on 98 Jimmy -- posted image.

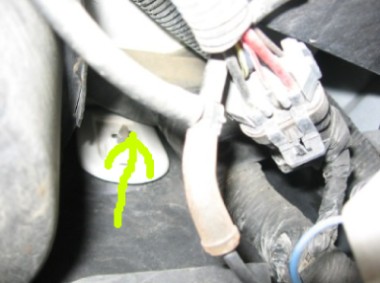

Different angle
Routing power wire on 98 Jimmy -- posted image.
Anyone else have any ideas they can share as well?
