2005 GMC Envoy


Post ReplyPost New Topic
< Prev Topic Next Topic >
cghendricks
Member - Posts: 4
Member spacespace
Joined: August 03, 2005
Location: United States
Posted: August 03, 2005 at 6:47 AM / IP Logged
Anyone know where to find the wires that control the rear window roll up/down? Any info would be greatly appreciated...Thanks
c.h.
cghendricks
Member - Posts: 4
Member spacespace
Joined: August 03, 2005
Location: United States
Posted: August 03, 2005 at 6:49 AM / IP Logged
Let me make this clearer...it is a 2005 GMC Envoy XUV
c.h.
mo12v
Platinum - Nominee - Posts: 2,748
Platinum - Nominee spaceThis member consistently provides reliable informationspace
Joined: September 30, 2003
Location: Afghanistan
Posted: August 03, 2005 at 2:43 PM / IP Logged

This vehicle is DATA Link................

Reversal Rest At Ground Type Window Circuit

LF Window up/dn dk. blue - brown  A  driver door module in door
RF Window up/dn lt. blue - tan  A  front passenger door module in door
LR Window up/dn dk. blue - brown  A  LR window switch in door
RR Window up/dn dk. blue - brown  A  RR window switch in door

MO
Don't Learn from Others Mistakes
You Might Be the One That Knows.
NowYaKnow
Gold - Posts: 1,217
Gold spacespace
Joined: December 18, 2002
Posted: August 03, 2005 at 9:57 PM / IP Logged

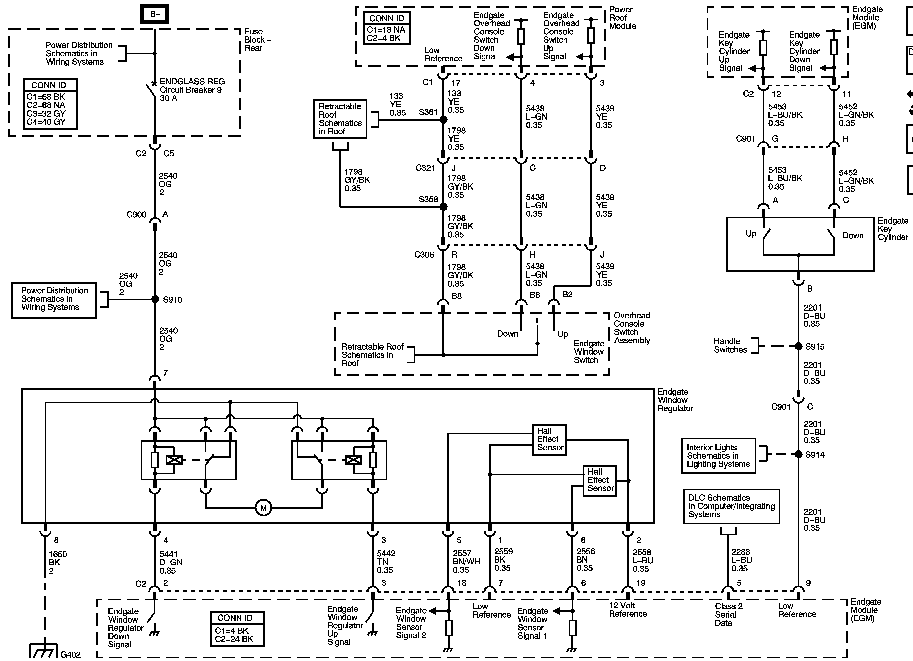

Looking at the schematic looks like there is a switch for it in the overhead console that uses a resistored output to send a signal. Same goes for the rear key cylinder.
2005 GMC Envoy -- posted image.
cghendricks
Member - Posts: 4
Member spacespace
Joined: August 03, 2005
Location: United States
Posted: August 04, 2005 at 7:41 AM / IP Logged
Thanks for the info guys... I'll let you know how it turns out when I get the car back in the shop.
c.h.
cghendricks
Member - Posts: 4
Member spacespace
Joined: August 03, 2005
Location: United States
Posted: August 09, 2005 at 6:38 AM / IP Logged
Thanks NowYaKnow! The diagram you posted was very helpful. I used the wires found at the overhead console for the rear window up/down. The only problem with controlling the window this way is that you have to power up the accessory circuit in the vehicle for it to work....no big deal for me as I had already installed a Viper 791xv so I just tapped into the ribbon cable accessory wire while grounding either of the window wires. Just be sure to diode isolate these circuits!
c.h.
