marcoux321

Member - Posts: 9

Joined: December 02, 2005

Location: Canada

Posted: December 06, 2005 at 9:37 PM / IP Logged

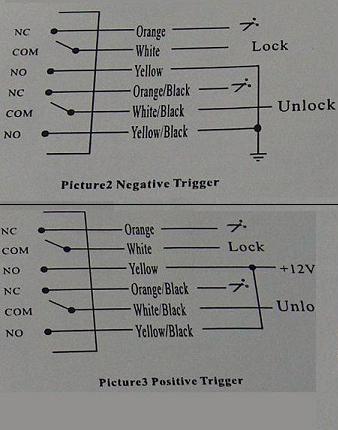

Does anyone have a diagram for 2003 mazda protege(not protege 5) manual to install remote starter? And do you know if there is a neutral wire, to say went my car is to neutral and if yes, where's he? And can you explain me, how connect my lock and unlock car door whit my kind of car. In my installation manual, I had these two diagram to plug the power on lock door.

Protege 2003 wiring Diagram -- posted image.

secureauto

Copper - Posts: 196

Joined: January 02, 2003

Location: California, United States

Posted: December 06, 2005 at 10:57 PM / IP Logged

Here's a link for your 03 Protege (not Protege5)

03 Protege

1,000 ohm resistor

Use (picture 2 Negative trigger), put a 1,000 ohm (1k)resistor in line on the white wire for lock. Use the WHITE/ black for unlock. Both wires will connect to the light GREEN/ red of your car's doorlock wire.

As far as the neutral wire is concerned, I was unable to find.

ASE Certified

marcoux321

Member - Posts: 9

Joined: December 02, 2005

Location: Canada

Posted: December 07, 2005 at 5:05 AM / IP Logged

Thanks, but I don't have to put any relay for my lock and unlock system? How can you install the system if you dont have safety neutral wire?

secureauto

Copper - Posts: 196

Joined: January 02, 2003

Location: California, United States

Posted: December 07, 2005 at 10:49 PM / IP Logged

According to the diagram your alarm has built in doorlock relays. What type of alarm are you installing?

ASE Certified

marcoux321

Member - Posts: 9

Joined: December 02, 2005

Location: Canada

Posted: December 08, 2005 at 4:49 AM / IP Logged

AOLIN, and what you thing about the neutral safety wire, how can I tell to my Alarm: I'm in neutral you can start the car.

tootsie

Member - Posts: 9

Joined: December 12, 2005

Posted: December 13, 2005 at 11:44 AM / IP Logged

Neutral safety trigger, pink green, - (while in neutral), Under battery tray from transmission.

- Its actualy in a two wire harness attached to a bracket that is on the transmission. However, the battery must be removed to have working room to get to the neutral safety wire.
