Relay stumped

Home / the12volt's Install Bay / Relays / Relay stumped (Topic Closed Topic Closed)
Welcome Guest :)

Post ReplyPost New Topic
< Prev Topic Next Topic >
josleach
Member - Posts: 2
Member spacespace
Joined: September 26, 2006
Location: United States
Posted: September 26, 2006 at 4:26 PM / IP Logged
I am on the local fire department and had some troubles with trying to use a relay.  I want to hook up 2 alternating flashing lights and I want to power it from a switch.  I was told to buy a SPDT relay but nobody can help me with what wires to hook up where.  The numbers on the relay are 30, 85, 86, 87, 87a.  Anybody out there help is greatly needed thank you.
Velocity Motors
Moderator - Posts: 12,488
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Fabrication. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 08, 2002
Location: Manitoba, Canada
Posted: September 26, 2006 at 5:56 PM / IP Logged

The relay will depend on how you want to activate it ? Ground activation or 12 volt Power activation ?

If the flasher unit is a (+) trigger then use one of the following diagrams:


Jeff
Velocity Custom Home Theater
Mobile Audio/Video Specialist
Morden, Manitoba CANADA
josleach
Member - Posts: 2
Member spacespace
Joined: September 26, 2006
Location: United States
Posted: September 26, 2006 at 7:21 PM / IP Logged
One thing I forgot to mention is that I would like the lights to alternately flash.....left light then the right light and back to left and then right.  I dont know if the setup would still be the same.
bryantobando
Copper - Posts: 64
Copper spacespace
Joined: November 29, 2005
Location: United States
Posted: September 26, 2006 at 9:36 PM / IP Logged
If you know a little bit about electronics, you can make a flasher with basic electronics components. You could get the parts at radio shack. Ill try to come up with an explanation or diagram for you.
bryantobando
Copper - Posts: 64
Copper spacespace
Joined: November 29, 2005
Location: United States
Posted: September 27, 2006 at 6:47 AM / IP Logged

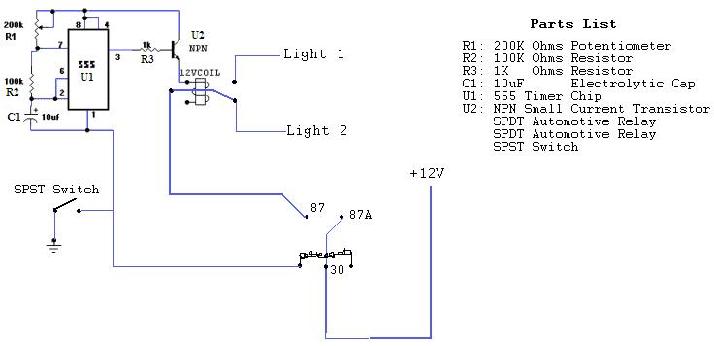

Relay stumped -- posted image.
bryantobando
Copper - Posts: 64
Copper spacespace
Joined: November 29, 2005
Location: United States
Posted: September 27, 2006 at 6:53 AM / IP Logged

If you want to have fun, you could go to radioshak and get simple electronic components to make yourself and adjustable flasher. It takes to relays. When you hit the switch, it will turn on your flasher and alllow 12V to run to the relay that is going to flash the light. Prolly the most complex part is the 555 timer chip, though it only has 4 legs. It shows what you connect to each leg. If you understand a little about electronics, it is not as difficult as it seems. IF you have any ?'s, post them up.

bryantobando
Copper - Posts: 64
Copper spacespace
Joined: November 29, 2005
Location: United States
Posted: September 27, 2006 at 6:54 AM / IP Logged
other than doing this complex flasher yourself, you could just get a regular automotive flasher.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: September 27, 2006 at 8:48 AM / IP Logged

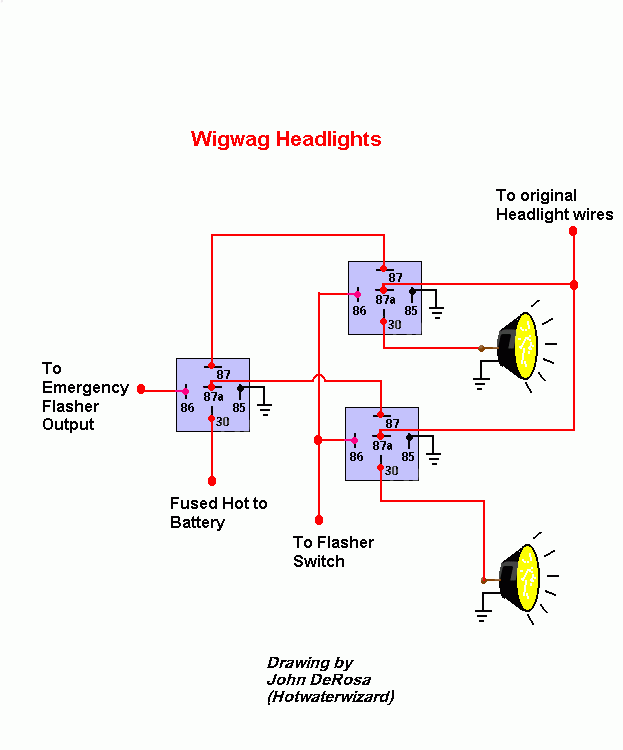

If you want to ad Wig_Wag headlights to an exsisting Vehical Here is a circuit to do just that.

Relay stumped -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: September 27, 2006 at 9:00 AM / IP Logged

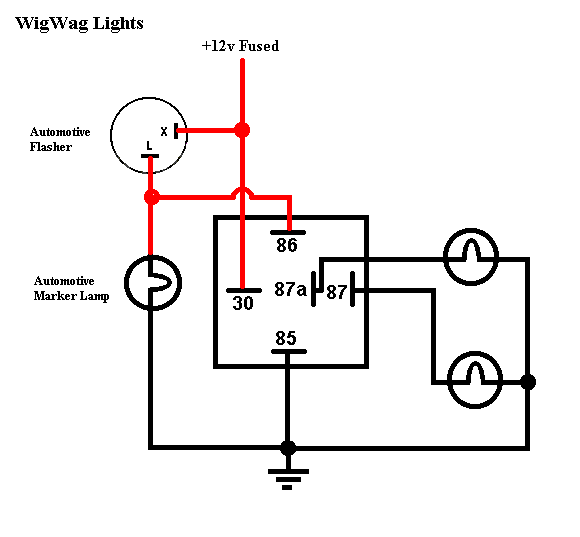

Relay stumped -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: September 27, 2006 at 9:08 AM / IP Logged

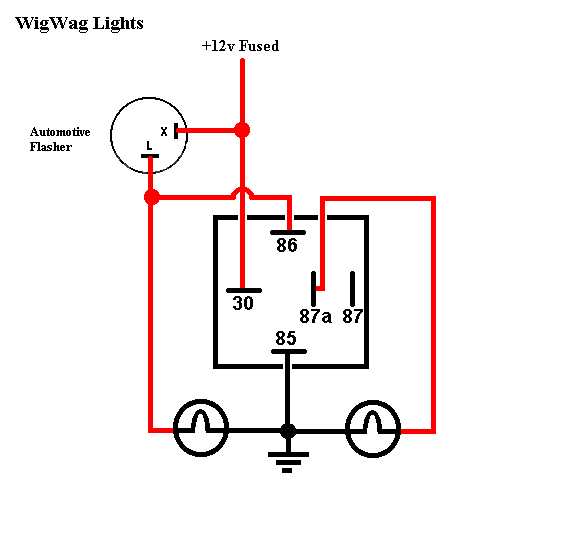

A Trailer Light Kit would be perfect for this Application.

Relay stumped -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
