Anti Grind Relay Wiring

Home / the12volt's Install Bay / Car Security and Convenience / Anti Grind Relay Wiring (Topic Closed Topic Closed)
Welcome Guest :)

Post ReplyPost New Topic
< Prev Topic Next Topic >
vwaudifreak
Member - Posts: 5
Member spacespace
Joined: February 18, 2007
Location: United States
Posted: February 22, 2007 at 8:32 AM / IP Logged

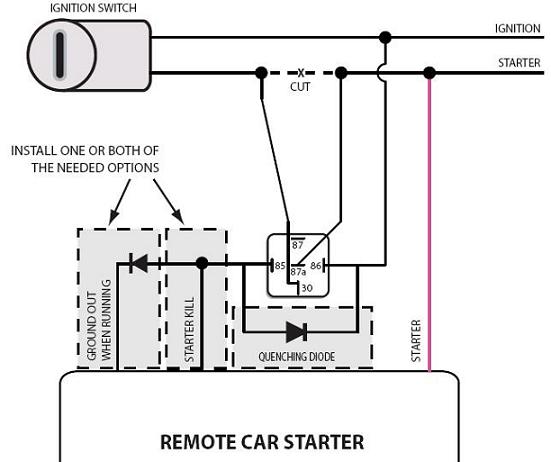

Hi, is this a good way to wire a starter kill relay (diagram found online)? do you think the starter will bump for a second since the 12V comes on at the same time the key is turned? I am just trying to make it simplier.

Anti Grind Relay Wiring -- posted image.

Twelvoltz
Platinum - Posts: 2,384
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: March 24, 2005
Location: New Jersey, United States
Posted: February 22, 2007 at 8:40 AM / IP Logged
That is the proper way to wire up a starter kill circuit. No, the starter will not 'bump' when wired like that.
Installer, IT support, and FFL. I need less hobbies.
KarTuneMan
Platinum - Posts: 7,056
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: December 14, 2004
Location: Isle Of Man
Posted: February 22, 2007 at 8:46 AM / IP Logged

Key side of the starter wire to 87a, the car side to 30.  12v to 86, ground while running to 85. Take your remote start connection to the CAR SIDE of your starter wire "past" the relay.

Anti-grind!

Hymer
Silver - Posts: 695
Silver spacespace
Joined: November 20, 2004
Location: United States
Posted: February 22, 2007 at 9:09 AM / IP Logged

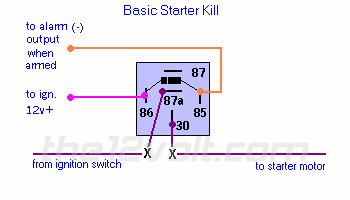

Yep, correct as usual... Look at the pics on hat link...Anti Grind Relay Wiring -- posted image. Scotchlocs, T-taps....   eeeeewwwwww
Tire Proz Stillwater Mn
High End Restyling and Comlete Repair
vwaudifreak
Member - Posts: 5
Member spacespace
Joined: February 18, 2007
Location: United States
Posted: February 22, 2007 at 9:59 AM / IP Logged
KarTuneMan wrote:

Key side of the starter wire to 87a, the car side to 30.  12v to 86, ground while running to 85. Take your remote start connection to the CAR SIDE of your starter wire "past" the relay.

Anti-grind!

Thanks. I got that, I just wanted to be sure I could connect 86 on the relay to the key side starter wire. I don't want a momentary starter enguagement as the relay clicks over.

Twelvoltz
Platinum - Posts: 2,384
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: March 24, 2005
Location: New Jersey, United States
Posted: February 22, 2007 at 10:14 AM / IP Logged
HYMER wrote:
Yep, correct as usual... Look at the pics on hat link... Scotchlocs, T-taps....   eeeeewwwwww
I should have looked at the whole page and maybe have read some of that, all I looked at was the picture showing the relay. I am with Hymer on this one....Solder all of your connections! Scotchlocks and T-Taps are NOT the way to do it.
Installer, IT support, and FFL. I need less hobbies.
cutter1122
Copper - Posts: 103
Copper spacespace
Joined: January 16, 2005
Location: Canada
Posted: February 22, 2007 at 10:14 AM / IP Logged
Anti Grind Relay Wiring -- posted image.
xtremej
Gold - Posts: 1,440
Gold spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: February 24, 2006
Location: United States
Posted: February 22, 2007 at 4:29 PM / IP Logged

Anti Grind Relay Wiring -- posted image.

As suggested hook remote starter-start wire on the starter motor side.

dualsport
Silver - Posts: 983
Silver spacespace
Joined: September 27, 2005
Location: United States
Posted: February 22, 2007 at 7:38 PM / IP Logged
One advantage of using the separate 12V Ign to switch the relay instead of the start signal is that it's better for the relay to be cold switched; the contacts will tend to last longer, and it'd be more reliable.
If the start signal is used as in the first diagram, the relay gets hot switched, because power is already present on the contacts by the time it's closed. Probably not a big deal, since the relay can handle it, but it might make a difference over the long haul.
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: February 22, 2007 at 8:30 PM / IP Logged
You mention antigrind relay in the topic, you can also connect 85 to the RS statis wire to make the relay do two duties-antigrind and starter kill.
Mike M2
Tech Manager
CS Dealer Services
Page of 2
