blackeye_cis

Member - Posts: 6

Joined: March 19, 2007

Location: Singapore

Posted: March 19, 2007 at 2:47 AM / IP Logged

Guys, need your expert advice...

Bought a 2nd hand air horn and wish to instal in my ride. How do i hook it up without dismantling the original horn.?

Do I need a relay and a toggle switch? A simple drawing much appreciated...Thx

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: March 26, 2007 at 8:35 AM / IP Logged

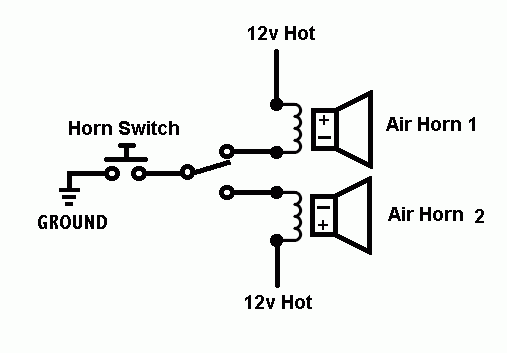

Here is the easiest way. secondary air horn -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !
