07 pontiac vibe, hornet 727t


Post ReplyPost New Topic
< Prev Topic Next Topic >
lavaspill
Member - Posts: 1
Member spacespace
Joined: August 09, 2002
Location: United States
Posted: July 16, 2007 at 6:08 PM / IP Logged
What wires would I need to install this alarm. Keeping factory fobs. Is the wiring the same as previous 06 and 05 Vibe?

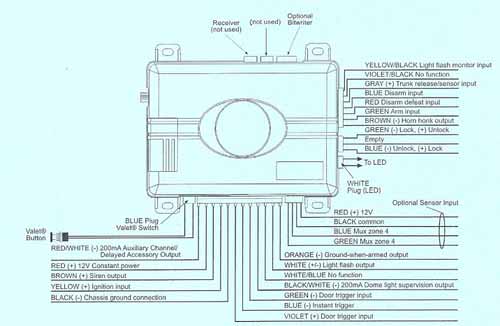

07 pontiac vibe, hornet 727t -- posted image.
peterubers
Silver - Posts: 706
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 29, 2006
Location: United States
Posted: July 17, 2007 at 5:39 PM / IP Logged
Battery BROWN AND ORANGE (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PINS 12/33 OF 40 PIN PLUG Ignition 1 YELLOW (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PIN 35 OF 40 PIN PLUG Ignition 2 LIGHT BLUE (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PIN34 OF 40 PIN PLUG Accessory 1 GREEN (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PIN 11 OF 40PIN PLUG Starter 1 BLUE (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PIN 15 OF 40 PIN PLUG Starter 2 LIGHT BLUE (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PIN 17 OF 40 PIN PLUG Anti-Theft Type UNIVERSAL TRANSPONDER Anti-Theft Descript THE KEY SENDS A RF SIGNAL TO THE BCM THROUGH A ANTENNA AROUND THE KEY CYLINDER Key Sense BLUE/WHITE (-) IGNITION SWITCH HARNESS Neutral Safety GREEN / WHITE (-) AT GEAR SELECTOR SWITCH Tachometer WHITE (AC) PIN 9 AT THE DATA CONNECTOR Speed Sense PURPLE (AC) ECU MODULE TO THE RIGHT OF GLOVE BOX PIN 14 OF A 26 PIN PLUG Parking Lights GREEN (+) AT THE BACK OF PARKING LIGHT UNDER HOOD Brake Lights RED / BLACK (+) BRAKE PEDAL Reverse Lights RED (+) ECU PIN13 Horn YELLOW (-) STEERING COLUMN HARNESS
The search function is your friend.
peterubers
Silver - Posts: 706
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 29, 2006
Location: United States
Posted: July 17, 2007 at 5:39 PM / IP Logged
Battery BROWN AND ORANGE (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PINS 12/33 OF 40 PIN PLUG Ignition 1 YELLOW (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PIN 35 OF 40 PIN PLUG Starter 1 BLUE (+) PSC/ECU MODULE TO THE RIGHT OF GLOVE BOX PIN 15 OF 40 PIN PLUG All Door Trigger BLACK/ WHITE (-) AT PLUG TOP OF FUSEBOX Domelight Super BLUE LF Latch RED (-) BECU PIN 14 OF A 16 PIN PLUG RF Latch RED (-) BECU PIN 23 OF A 28 PIN PLUG LR Latch GREEN (-) BECU PIN 11 OF A 28 PIN PLUG RR Latch BLUE (-) BECU PIN 16 OF A 16 PIN PLUG Trunk Trigger RED (-) BECU PIN 11 OF A 16 PIN PLUG Hood Trigger WHITE/ BLUE (-) HOOD PIN SWITCH UNDER HOOD Alarm Disarm ARMS WITH LOCKS Alarm Arm DISARMS WITH UNLOCK Parking Lights GREEN (+) AT THE BACK OF PARKING LIGHT UNDER HOOD
The search function is your friend.
peterubers
Silver - Posts: 706
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 29, 2006
Location: United States
Posted: July 17, 2007 at 5:39 PM / IP Logged
Power Unlock LIGHT GREEN (-) POWER MASTER SWITCH IN DRIVERS DOOR PowerLock PINK (-) POWER MASTER SWITCH IN DRIVERS DOOR
The search function is your friend.
peterubers
Silver - Posts: 706
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 29, 2006
Location: United States
Posted: July 17, 2007 at 5:40 PM / IP Logged
Should be everything you need, it is NOT like the '05/06 ... the above info is for the 2007
