rtm038

Member - Posts: 41

Joined: September 26, 2004

Location: United States

Posted: July 24, 2007 at 2:13 PM / IP Logged

Hello,

I need a 12+VDC latching relay that'll do the following:

1. 1st 12+VDC pulse= latch

2. 2nd 12+VDC pulse= unlatch

3. Power loss= unlatch

Thanks

Ryan

Back to Top

ranger svo

Copper - Posts: 70

Joined: July 04, 2007

Location: United States

Posted: July 24, 2007 at 7:54 PM / IP Logged

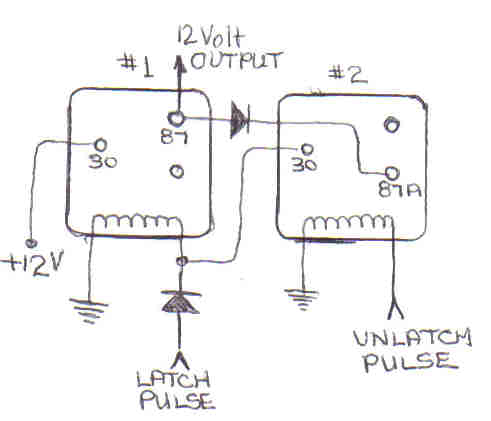

You need two relays. The first will be the latch relay, the second will shut it down latching relay -- posted image.

The moving power of mathematical invention is not reasoning but imagination.

Augustus de Morgan

Back to Top

randyre

Member - Posts: 4

Joined: July 23, 2007

Location: United States

Posted: July 25, 2007 at 1:56 PM / IP Logged

So how would you go about making the first pulse latch power on, the second activate a second relay monetary on, and the third pulse turn them all back off, and the fourth pulse start thesequence again??

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: July 26, 2007 at 8:36 AM / IP Logged

randyre wrote:

So how would you go about making the first pulse latch power on, the second activate a second relay monetary on, and the third pulse turn them all back off, and the fourth pulse start thesequence again??

That would be a complicated mind boggling circuit.

A Digital circuit would be required.

You could just buy a 4 channel remote to do the job.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

Search for other posts by hotwaterwizard

randyre

Member - Posts: 4

Joined: July 23, 2007

Location: United States

Posted: July 26, 2007 at 2:01 PM / IP Logged

Well if you say that, I'm betting thats a pretty definitive answer :) How would a remote do this? i already have a remote start installed and would be hooking into this.

Back to Top

randyre

Member - Posts: 4

Joined: July 23, 2007

Location: United States

Posted: July 26, 2007 at 2:04 PM / IP Logged

So I'm also guessing this is impossiblem since its nearly the same thing.

https://www.the12volt.com/installbay/forum_posts.asp~TID~95849~PN~1

Back to Top
