#77785: 2009 HONDA FIT 4DR HATCHBACK WITH 1.5L ENGINE AND 4-SPEAKER AUDIO SYSTEM
Security
WIRE COLOR POLARITY LOCATION
Battery WHITE (+) IGNITION SWITCH HARNESS
THIS WIRE IS FUSED AT 50 AMPS
Ignition 1 YELLOW (+) IGNITION SWITCH HARNESS
Starter 1 PINK (+) IGNITION SWITCH HARNESS
Domelight Super BLUE (-) UNDER DASH FUSEBOX
LF Latch BLUE (-) UNDER DASH FUSEBOX
RF Latch LIGHT GREEN (-) UNDER DASH FUSEBOX
LR Latch PINK (-) UNDER DASH FUSEBOX
RR Latch GREEN (-) UNDER DASH FUSEBOX
Trunk Trigger ORANGE (-) UNDER DASH FUSEBOX
RED AT TRUNK SWITCH
Hood Trigger VIOLET (-) UNDER DASH FUSEBOX
ONLY ON VEHICLES WITH FACTORY ALARM
Alarm Disarm GREEN (-) UNDER DASH FUSEBOX
TEST THIS WIRE WHILE TURNING THE KEY IN THE DRIVER DOOR LOCK CYLINDER
Alarm Arm VIOLET (-) UNDER DASH FUSEBOX
TEST THIS WIRE WHILE TURNING THE KEY IN THE DRIVER DOOR LOCK CYLINDER
Parking Lights GRAY (+) UNDER DASH FUSEBOX
Low Crr Pk Lights GRAY (-) LIGHT SWITCH HARNESS
ALSO AT UNDER DASH FUSEBOX PIN M7
Convenience
WIRE COLOR POLARITY LOCATION
Headlights-Lo RED (-) VEHICLE LIGHT SWITCH
ALSO AT UNDER DASH FUSEBOX PIN M5
All Hazrd Lights PINK (+) UNDER DASH FUSEBOX
ALSO AT VEHICLE HAZARD SWITCH
Wipers-Lo ORANGE (-) WIPER CONTROL SWITCH
ALSO AT UNDER DASH FUSEBOX PIN #M11
Wipers-Hi RED (-) WIPER CONTROL SWITCH
ALSO AT UNDER DASH FUSEBOX PIN M10
Parking Brake ORANGE (-) PARKING BRAKE SWITCH
ALSO IN HARNESS TO GAUGES
Remote Start
WIRE COLOR POLARITY LOCATION
Battery WHITE (+) IGNITION SWITCH HARNESS
THIS WIRE IS FUSED AT 50 AMPS
Ignition 1 YELLOW (+) IGNITION SWITCH HARNESS
Accessory 1 ORANGE (+) IGNITION SWITCH HARNESS
Accessory 2 RED (+) IGNITION SWITCH HARNESS
Starter 1 PINK (+) IGNITION SWITCH HARNESS
Anti-Theft Type UNIVERSAL IMMOBILIZER
Anti-Theft Descript THE KEY SENDS AN RF SIGNAL TO THE BCM MODULE THROUGH AN ANTENNA LOCATED AROUND THE IGNITION CYLINDER
Key Sense GRAY (-) UNDER DASH FUSEBOX
ALSO IN IGNITION SWITCH HARNESS
Neutral Safety ORANGE (-) UNDER DASH FUSEBOX
ON AUTOMATIC VEHICLES THIS WIRE WILL TEST (-) WHEN THE CAR IS IN PARK OR NEUTRAL, ON MANUAL VEHICLES THIS WIRE WILL TEST (-) WHEN THE CLUTCH PEDAL IS DEPRESSED
Tachometer LIGHT BLUE (AC) AT PCM MODULE UNDER HOOD
Crankshaft Sensor BLUE (AC) IN HARNESS AT PCM MODULE BETWEEN BATTERY AND FIREWALL
DO NOT DISCONNECT PCM MODULE - OBTAIN WIRE CONNECTION IN BUNDLED HARNESS GOING TO PCM OR GET THE WIRE AT THE SENSOR ON BOTTOM OF ENGINE NEAR ENGINE MOUNT UNDER A BLACK PLASTIC COVER.
Camshaft Sensor GREEN (AC) IN HARNESS AT PCM MODULE BETWEEN BATTERY AND FIREWALL
DO NOT DISCONNECT PCM MODULE - OBTAIN WIRE CONNECTION IN BUNDLED HARNESS GOING TO PCM OR GET THE WIRE AT THE SENSOR ON TOP OF ENGINE NEAR THROTTLE BODY.
Speed Sense BLUE (AC) RADIO HARNESS
ALSO AT PCM PIN A30
Parking Lights GRAY (+) UNDER DASH FUSEBOX
Low Crr. Pk Lights GRAY (-) LIGHT SWITCH HARNESS
ALSO AT UNDER DASH FUSEBOX PIN M7
Brake Lights LIGHT GREEN (+) AT SWITCH ABOVE BRAKE PEDAL
Reverse Lights GREEN (+) UNDER DASH FUSEBOX
Horn ORANGE (-) IN HARNESS TO STEERING COLUMN
Rear Defrost VIOLET
ALSO AT UNDER DASH FUSEBOX PIN K2, THIS WIRE WILL CONTROL HEATED MIRRORS IF EQUIPPED
Modules
WIRE LOCATION
Module 1 PCM - POWERTRAIN CONTROL MODULE - UNDER HOOD NEAR DRIVER SIDE FIREWALL
Module 2 ABS CONTROL MODULE - UNDER HOOD ON PASSENGER SIDE
Module 3 MICU - UNDER DRIVER SIDE OF DASH ATTACHED TO FUSE BOX
Doorlocks/Windows
WIRE COLOR POLARITY LOCATION

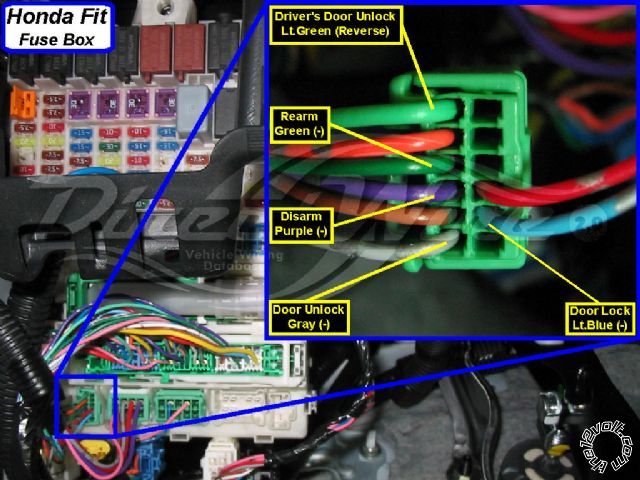

Power Unlock GRAY (-) UNDER DASH FUSEBOX
A DOUBLE PULSE ON THE FACTORY ALARM DISARM WIRE WILL ALSO UNLOCK ALL DOORS
PowerLock LIGHT BLUE (-) UNDER DASH FUSEBOX
A PULSE ON THE FACTORY ALARM ARM WIRE WILL ALSO LOCK THE DOORS
Driver Mtr Unlock LIGHT GREEN (REV) UNDER DASH FUSEBOX
Driver Mtr Lock PINK (REV) UNDER DASH FUSEBOX
Pas Mtr Unlock YELLOW (REV) UNDER DASH FUSEBOX
Pas Mtr Lock LIGHT BLUE (REV) UNDER DASH FUSEBOX
LF Window Up ORANGE (REV) MAIN POWER WINDOW SWITCH
LF Window Dn BLUE (REV) MAIN POWER WINDOW SWITCH
RF Window Up WHITE (REV) MAIN POWER WINDOW SWITCH
RF Window Dn YELLOW (REV) MAIN POWER WINDOW SWITCH
LR Window Up VIOLET (REV) MAIN POWER WINDOW SWITCH
LR Window Dn GREEN (REV) MAIN POWER WINDOW SWITCH
RR Window Up LIGHT GREEN (REV) MAIN POWER WINDOW SWITCH
RR Window Dn RED (REV) MAIN POWER WINDOW SWITCH
Note: Code Systems makes no representation or warranty with respect to the above information including its accuracy, completeness, or its freedom from third parties' proprietary rights. Code Systems disclaims all liability or responsibility for errors or omissions therein or any decision made by the recipient in reliance thereon. The installer must verify any circuitry with the proper test equipment prior to installation.
If i Can't Install it I Don't need it Joe
