Keeping a relay on for X amount of time

Home / the12volt's Install Bay / Relays / Keeping a relay on for X amount of time (

Topic Closed)

Welcome Guest :)

Members

< Prev Topic Next Topic >

blue82bu

Member - Posts: 3

Joined: December 30, 2004

Location: United States

Posted: December 30, 2004 at 5:28 PM / IP Logged

New guy here with a Q. I 've been a long time looker of the forums and this is my first post:

I need info and possibly a diagram showing how to keep a 12v relay latched for apox. 2 mins. Any help is appreciated

theronsmith

Member - Posts: 36

Joined: December 20, 2004

Location: Alberta, Canada

Posted: December 30, 2004 at 6:44 PM / IP Logged

You can buy a timer form DEI

chevy II

blue82bu

Member - Posts: 3

Joined: December 30, 2004

Location: United States

Posted: December 30, 2004 at 8:27 PM / IP Logged

Does DEI have a www? I couldn't find anything on google.

Mharvey

Copper - Posts: 76

Joined: October 27, 2004

Location: United States

Posted: December 30, 2004 at 8:45 PM / IP Logged

try pacaudio i have the tr-7 relay timer

www.pac-audio.com

gcorrea

Silver - Posts: 436

Joined: May 22, 2004

Location: United States

Posted: January 02, 2005 at 1:26 AM / IP Logged

i just saw a dei timer on ebay for about $10.00, look for it in the security section.

gcorrea

Captanham

Silver - Posts: 365

This member has made a donation to the12volt.com. Click here for more info.

Joined: December 18, 2004

Location: United States

Posted: January 02, 2005 at 11:15 AM / IP Logged

the the dei pulse timer is cheap and it will do it, pretty easy hook up, i don't rember the 55 wahtever number, i can ship you one if you want, and dei's site is directed.com, you could also do this with an aditional relay, a small resistor and a capacitor... but it's prolly a lot easier to just use the pulse timer

Bad Boys Customs

audio - video - security

If you use it. Suport it. Donate to the 12 volt!

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: January 02, 2005 at 11:03 PM / IP Logged

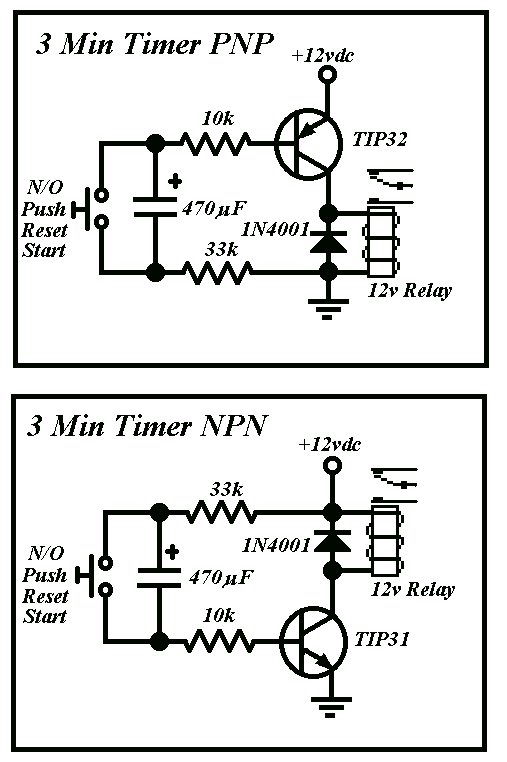

How about this?

Keeping a relay on for X amount of time -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Search for other posts by hotwaterwizard

blue82bu

Member - Posts: 3

Joined: December 30, 2004

Location: United States

Posted: January 04, 2005 at 12:50 PM / IP Logged

thank you hotwaterwizard one of those should work perfectly.

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: January 04, 2005 at 9:45 PM / IP Logged

When you push the Button, the timer begins.

If you push it again it resets the time limit.

I use this with a pressure switch on a pressure washer and it lets them wash the trucks as long as they are using the machine.

If they let off of the trigger for 3 min. the machine shuts off automaticly.

If you want a shorter time you can try a smaller capacitor or put a 50k varible resistor in place of the 33k.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !
