viper 1020gps wiring diagram

hey, i've been searching for a wiring diagram for the viper 1020 gps module, unfortunately i've had no luck but was hoping someone around here might have one laying around or might know where i could find one, any help is greatly appreciated, thanks in advance...

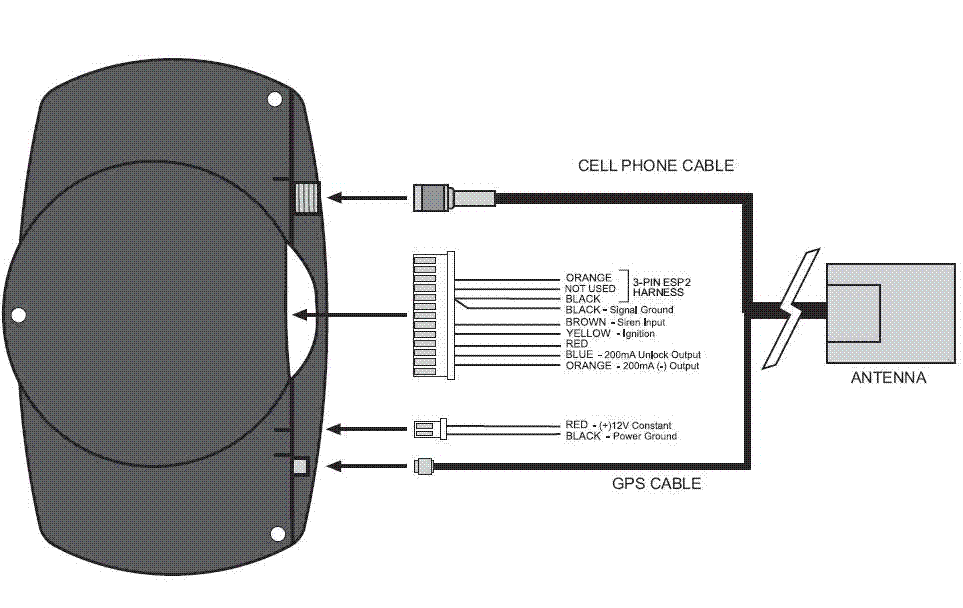

Wiring Connections NOTE: It is not necessary to use the BLUE or ORANGE wires when using the ESP2 interface. Cut the wire short and tape the ends for protection. All other wires are mandatory for normal operation. Wire Descriptions �¡ RED / ORANGE / BLACK - Bitwriter Cable is the data connection to the Directed ESP2 system. This three-pin plug goes to the three-pin BLACK port on the side of the security system. �¡ BLACK - Ground wire �¡ BROWN - (+) Siren input wire; security system siren and trigger wire regardless of ESP2 compatibility. �¡ YELLOW - Ignition input wire �¡ BLUE - (-) Unlock trigger output wire �¡ ORANGE - (-) Ground-when-armed output wire; starter interrupt trigger. Two-Pin Power Harness Connections �¡ RED - (+) 12 volt constant �¡ BLACK - Power ground 1. Using a multi meter locate a 12V constant source at the ignition harness and attach the RED wire.

your a savior, thanks man for the quick response it is greatly appreciated

one last question if you dont mind, the included starter kill has an two wires, a yellow and a pink coming from 86 on the relay, i'm not sure where the second one goes, i was going to hook it up like a normally closed starter kill relay but ran into a snag with that extra wire...any idea where it needs to go? thanks again

I believe that is so you can cut the ignition wire and solder one side to one wire and the other side to the other wire (I think). I have aways built my own just always have. 86 ignition, 85 grounded when armed, 87a starter side and 30 key side of starter.

yea makes sense now why there are two wires but like you said a normally closed relay setup will work just as well...thanks again for your help
