Could anybody please provide me which pin on the OEM radio unit is responsible for audio control input (2009/2010 Vibe GT) should come as a standard equipment?

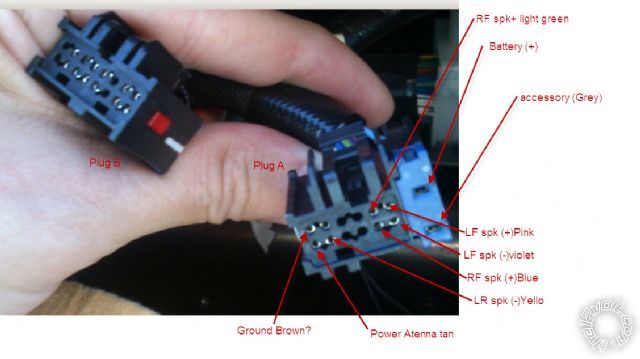

2009 pontiac vibe gt steering wheel input - Last Post -- posted image.

i am an idiot

Platinum - Posts: 13,723

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: October 19, 2012 at 9:08 AM / IP Logged

There should be instructions with whatever swc interface you are going to use.

shortcircuit161

Silver - Posts: 556

This member has made a donation to the12volt.com. Click here for more info.

Joined: August 29, 2010

Location: United States

Posted: October 19, 2012 at 9:11 AM / IP Logged

PAC and Axxess Interface (makers of audio integration modules) state the steering wheel controls would use Pins 4 & 5 on Connector 1 (Plug A)

Just like "i am an idiot" said, the instructions for what wire goes to those pins would come with the interface module.

Search for other posts by shortcircuit161

cq358

Member - Posts: 5

Joined: October 18, 2012

Location: Saskatchewan, Canada

Posted: October 19, 2012 at 12:31 PM / IP Logged

Sorry gentlemen, I should explain what is my project is all about. I am driving a base Vibe without audio control. It is a project to install the steering audio control on a base model head unit. Nobody had done that before. I understand I could go with the SWC route, perhaps I could do that at the future. Therefore I have no access to SWC installation instructions.

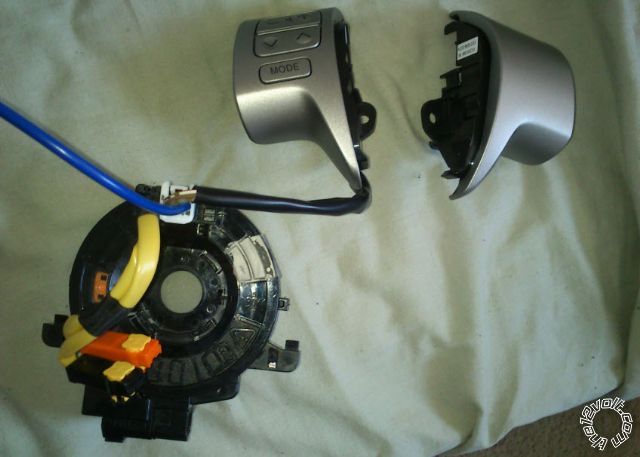

I have my new clock spring installed.Control pad ready, Now All I need is to wire properly from steering wheel control pad to the head unit.

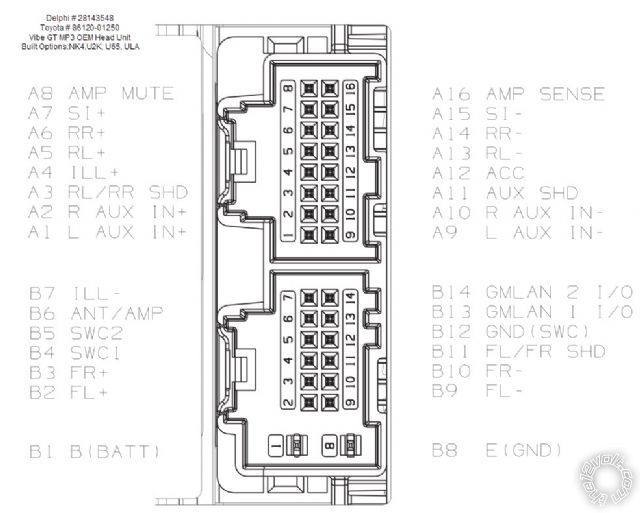

I sent a request to Delphi OEM tech support Wednesday for pin diagram. They got back to me this morning and I attached it on this tread as well for future reference. I did poke around in various site and could not find anything. My GM dealer is a brick and not willing to help me out letting me to look at their Mitchell wiring diagram.

cq358

Member - Posts: 5

Joined: October 18, 2012

Location: Saskatchewan, Canada

Posted: October 19, 2012 at 12:34 PM / IP Logged

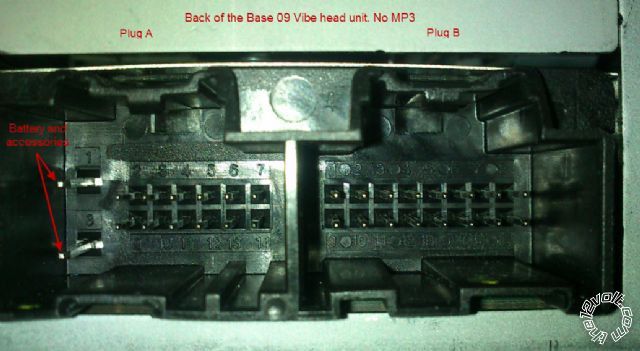

Please note that according to the earlier post. " Plug A" in my diagram is labeled at "B" on the Delphi diagram.

Thanks,

cq358

Member - Posts: 5

Joined: October 18, 2012

Location: Saskatchewan, Canada

Posted: October 19, 2012 at 12:50 PM / IP Logged

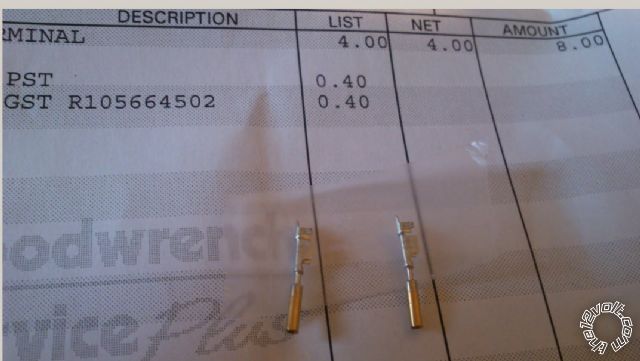

These are 10 cents Delphi terminal for Micro 64 plugs, even though they are gold plated, dealer in here marked up to 4 dollars each. 2009 pontiac vibe gt steering wheel input - Last Post -- posted image.

I ended up brought 50 pcs from Mouser Electric. With shipping only cost 13 bucks in total should be here by next week.

cq358

Member - Posts: 5

Joined: October 18, 2012

Location: Saskatchewan, Canada

Posted: October 19, 2012 at 3:12 PM / IP Logged

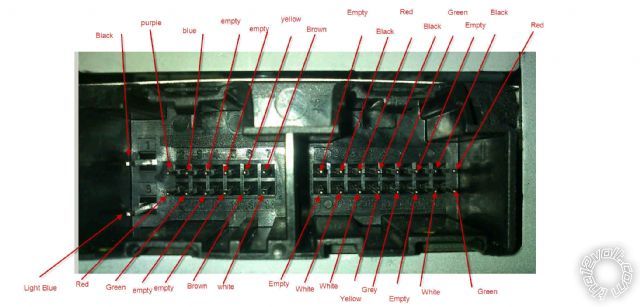

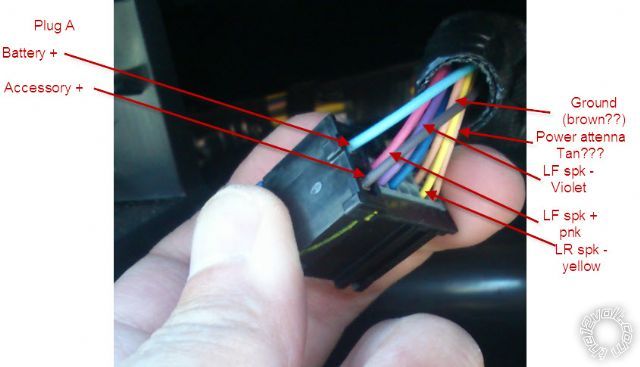

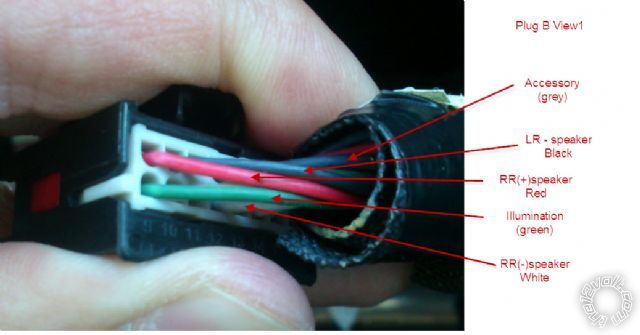

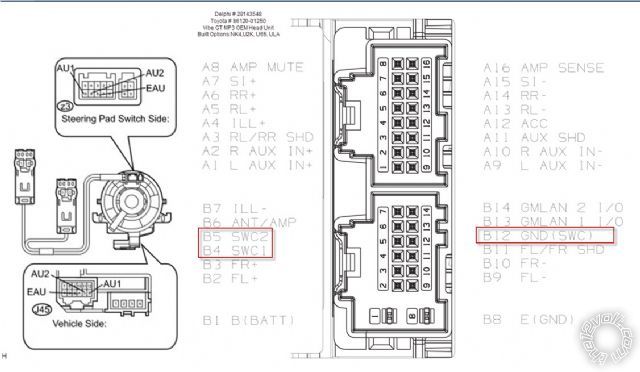

Piece everything together would be like the following.

Thanks Shortcircuit161, you are correct.

pakong

Member - Posts: 1

Joined: January 26, 2017

Location: Virginia, United States

Posted: January 26, 2017 at 1:57 PM / IP Logged

Were you able to get the project done? I'm trying to do the exact same thing with a 2010 Pontiac Vibe Base. what is the part number on the clockspring? I already have the steering wheel
