Velocity Motors wrote:

Go to the WHITE wire at the top driver's side of the engine

is this in the top plug? connect directly to wire no isolation needed correct?

the05bluredline

Member - Posts: 39

Joined: November 08, 2009

Location: Washington, United States

Posted: November 19, 2009 at 11:12 PM / IP Logged

can you post a diagram of how the door triggers would be wired. My alarm has one+ input and one- input.

Velocity Motors

Moderator - Posts: 12,488

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Fabrication. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: November 20, 2009 at 8:27 AM / IP Logged

the05bluredline wrote:

Velocity Motors wrote:

Go to the WHITE wire at the top driver's side of the engine

is this in the top plug? connect directly to wire no isolation needed correct?

Yes this is the plug right at the top of the engine with 5-6 other wires there. It's the only WHITE wire there. Solder and tape up and split tube loom for protection and run wire back to remote starter.

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

Velocity Motors

Moderator - Posts: 12,488

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: November 20, 2009 at 8:29 AM / IP Logged

the05bluredline wrote:

can you post a diagram of how the door triggers would be wired. My alarm has one+ input and one- input.

Negative Door Trigger Diode Isolation ( http://www.velocitymotorsport.com/images/install_notes/198.jpg )

Use the (-) input off the remote starter

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

the05bluredline

Member - Posts: 39

Joined: November 08, 2009

Location: Washington, United States

Posted: November 20, 2009 at 8:09 PM / IP Logged

Velocity Motors wrote:

the05bluredline wrote:

can you post a diagram of how the door triggers would be wired. My alarm has one+ input and one- input.

Negative Door Trigger Diode Isolation

Use the (-) input off the remote starter

Are you related to velocitymotorsport.com at all? the site doesn't seem to functioning properly and the email us think has a bad email.

the05bluredline

Member - Posts: 39

Joined: November 08, 2009

Location: Washington, United States

Posted: November 20, 2009 at 9:23 PM / IP Logged

not getting any more answers from people should i start a new thread?

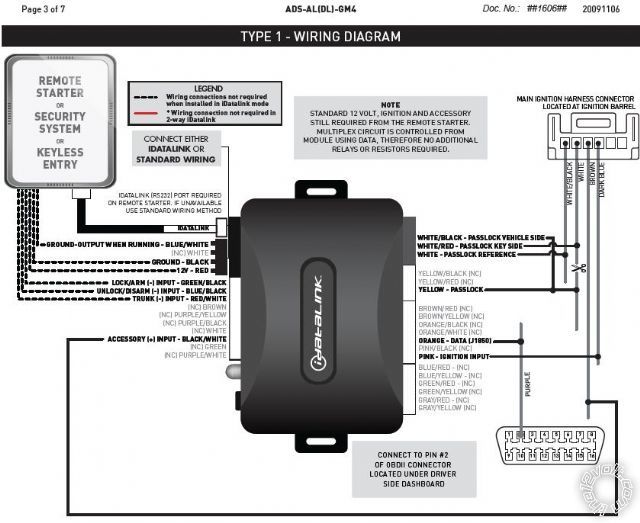

is this the correct module? (Velocity Motors) it says it doesn't control oem alarm arm/disarm

05 saturn ion redline, alarm/remote start - Page 2 -- posted image.

Velocity Motors

Moderator - Posts: 12,488

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: November 21, 2009 at 7:40 AM / IP Logged

GREEN/ BLACK and BLUE/BLACK wires are thyour lock and unlock and also your OEM alarm arm and disarm wires. This serves as a dual purpose wire on the modules,

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

Velocity Motors

Moderator - Posts: 12,488

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: November 21, 2009 at 7:43 AM / IP Logged

That is the correct website and I just tested the links and also the contact us and I get all the emails from it. I just received 10 emails from the submission form yesterday.

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

the05bluredline

Member - Posts: 39

Joined: November 08, 2009

Location: Washington, United States

Posted: November 21, 2009 at 1:31 PM / IP Logged

the05bluredline wrote:

not getting any more answers from people should i start a new thread?

is this the correct module? (Velocity Motors) it says it doesn't control oem alarm arm/disarm

So this is the correct module? Is the door Lock/Unlock wires from the alarm going the GREEN/ BLACK BLUE/BLACK wires? does this mean that the door trigger wires from the Alarm do not need to be installed if the OEM alarm will be activated? Thanks Velocity!!

the05bluredline

Member - Posts: 39

Joined: November 08, 2009

Location: Washington, United States

Posted: November 21, 2009 at 5:12 PM / IP Logged

If the Idatalink Bypass module controls the factory Alarm arm/disarm from the doors just being locked and unlocked. Wont the aftermarket alarm do the same thing without the bypass module. (all starting bypass aside) 2005 Saturn Ion Redline.
