momentary start to kill lights

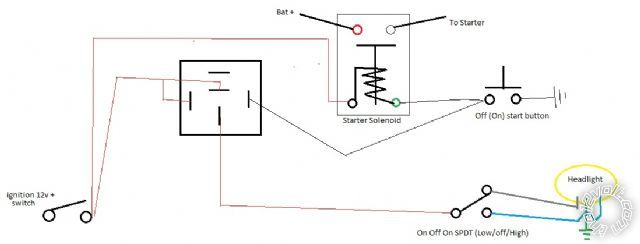

Hey everyone, 1st post here. Hopefully I'm posting in the right spot, please inform me if I'm not. I did search but didn't see anything. Hopefully this isn't to much of a newb question. Here is my situation. On a vehicle I'm building, I need the headlights on all the time, but would like them to be temporarily off when starting. I put together the below circuit which, to me, would accomplish this task quite nicely. I didn't include fuses in the drawing, but they will be included. My only question is, is there a problem grounding both the relay and the starter relay with one momentary switch? Do I need to include any diodes? Any help will be greatly appreciated!

How long do you want the time duration for the lights to be off during start ?Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

They only need to be off until the engine has started. The battery has a small capacity and I would like max voltage to the ignition and starter while starting until the charging system kicks in.

Diagramme is quite correct, diode between starter switch and relay, 1 amp in line. Jeff, I think our poster might need a timed relay to answer your question, such as a 528t replacing the left hand relay. Being my normal anal self why is the switch bottom right labelled SPDT when if it's hi-lo beam switch it should be an SPCO.

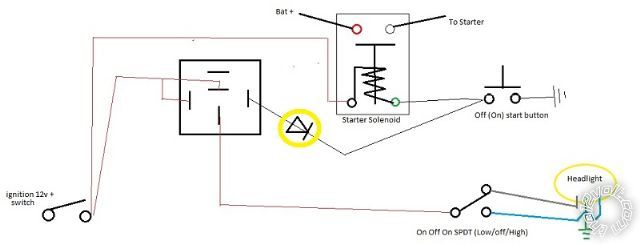

Just to be sure, the diode goes here? And about the switch, sorry, I did indeed label it wrong, it should be a SPCO

Correct.

Why not wire up the headlights to an ACC source or wire it through a relay triggered by an ACC source. The ACC circuit drops out during crank.Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

Thanks so much! I'm off to finish my wiring

Velocity Motors wrote: Why not wire up the headlights to an ACC source or wire it through a relay triggered by an ACC source. The ACC circuit drops out during crank.

This is an old motorcycle which doesn't really have an ACC circuit to be cut during cranking. That is basically what I'm trying to accomplish, (all non-vital circuits being cut while cranking).

If you want to try something different, there's a simple circuit you can use to keep the lights off until after you press and release the starter, if you want to maximize the battery. It uses the starter as a virtual ground when it's not being cranked. I can post it up if interested- Uses two relays, one power relay to switch the headlight power, and one small trigger relay. I installed it on a motorcycle that has HID lights, because I didn't want the lights cycling on when the ignition is turned on, and then going out again when cranking. This way the lights stay off when you switch the ignition on, and only come on after you crank the bike and release the starter again. At that point the bike is presumably started, so the headlights can come on.
