viper 5701, car wont start


Post ReplyPost New Topic
< Prev Topic Next Topic >
steve k
Member - Posts: 37
Member spacespace
Joined: September 29, 2010
Location: Florida, United States
Posted: September 29, 2010 at 10:25 PM / IP Logged
Hi all, I installed a 5701 Viper car alarm in my Yukon XL 1500, 2001. All is working ok and I also got the bitwriter to program the alarm. I will not use the remote start feature, just car alarm and door access. I connected the  (+) IGNITION 1 INPUT/OUTPUT to the ignition pink wire, the RED (+) FUSED (30A) IGNITION 1 INPUT to the pink going to the engine. The starter cranks but the car wont start. Please help !! like I said the remote start will not be used. Thanks.
yukon 2001
jcs091570
Copper - Posts: 155
Copper spacespace
Joined: March 23, 2009
Location: Arizona, United States
Posted: September 30, 2010 at 12:36 AM / IP Logged
If I understand correctly all we want is for the ignition kill to work. I am guessing +Pink Ignition wire of alarm to +Pink Ign wire of vehicle.. Yellow Starter wire of vehicle-motor side to violet wire of alarm, and Yellow key side to green wire of alarm. This is how I would try it. I think you made a wrong connection and the starter side is not getting energized. Hope this helps..let me know.
steve k
Member - Posts: 37
Member spacespace
Joined: September 29, 2010
Location: Florida, United States
Posted: September 30, 2010 at 4:52 AM / IP Logged
Thanks for the reply, the starter cranks, the ignition does not start the car,
yukon 2001
steve k
Member - Posts: 37
Member spacespace
Joined: September 29, 2010
Location: Florida, United States
Posted: September 30, 2010 at 5:08 AM / IP Logged

Should there be continuity between the ignition wires with the alarm power off ? thats rhe pink and red wire.

I tell ya .....I have a degree in electronicks and do electrical construction work for about 25 years ......car alarms have changed !!!! bitwriters etc got allot more complecated :)

yukon 2001
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: September 30, 2010 at 5:29 AM / IP Logged
I think you need to be using the Violet (H3/4) and the Green (H3/5) wires on your starter wire for this. Yellow may be the color, but of course test and verify.  From what I am reading you have a fused wire to your ignition that is suppose to be for 12volt(+) input to the brain.  The download section of this site has a install manual for this unit in PDF format.
When all else fails, Read the Instructions
Support the12volt.com Make a Donation
jim hunter
Silver - Posts: 351
Silver spacespace
Joined: March 23, 2006
Location: United States
Posted: September 30, 2010 at 4:09 PM / IP Logged
which wire did you cut and wire in as the kill switch( viper wires green and purple?)should be yellow wire that only shows 12volts during crank, if you cut ny other wire and tied into these wires theres a mistake. also check all your fuses you may have accidently blown an ign fuse
steve k
Member - Posts: 37
Member spacespace
Joined: September 29, 2010
Location: Florida, United States
Posted: September 30, 2010 at 4:52 PM / IP Logged

Thanks for the reply fellas, Vehicles yeloow starter wire is cut and connected to the (violet and green on Viper)

The vehicles pink ignition wire is cut and connected to the (Red and Pink on Viper)

The starter cranks, but theres no ignition.

yukon 2001
joch1314
Copper - Posts: 301
Copper spacespace
Joined: March 25, 2008
Location: Texas, United States
Posted: September 30, 2010 at 4:57 PM / IP Logged
connect the red wire on the viper to constant 12V+, i don't have a tech sheet in front of me but if i remember correclty it should be red or RED / white.  connect the pink ignition from the viper (and only that wire) to the vehicle's pink ignition wire.
...half of the truth can be worse than a lie. <----Roger Russell said that..
t&t tech
Platinum - Posts: 2,601
Platinum spacespace
Joined: October 05, 2008
Location: Trinidad and Tobago
Posted: September 30, 2010 at 5:07 PM / IP Logged
@ joch1314, i love that sig.
steve k
Member - Posts: 37
Member spacespace
Joined: September 29, 2010
Location: Florida, United States
Posted: September 30, 2010 at 5:27 PM / IP Logged

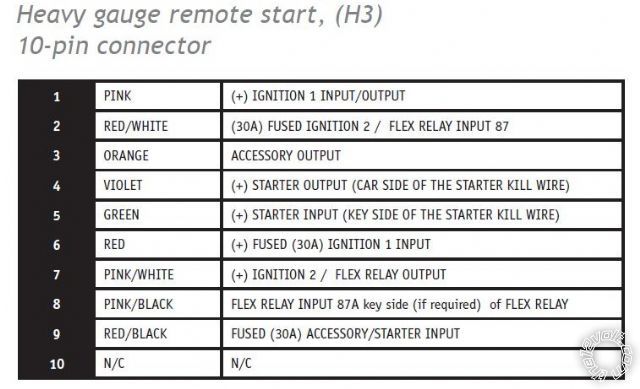

viper 5701, car wont start -- posted image.viper 5701, car wont start -- posted image.
yukon 2001
