2005 suburban dlpkgm vss3000 smartstart


Post ReplyPost New Topic
< Prev Topic Next Topic >
q-bert
Member - Posts: 3
Member spacespace
Joined: November 27, 2010
Location: Illinois, United States
Posted: December 08, 2010 at 5:04 PM / IP Logged
2005 Chevy Suburban
Attempting to install a Viper VSS3000 Smartstart with DLPKGM. The VSS3000 appears to be equivalent to
a Avital 4103 with a DSM200.
I've have literally read the forums for 3 days to try and get as much info as possible. I've run
across posts where people state that the the 2003-2006 GM fullsize trucks have been discussed hundreds
of times on the forum. See 8th
post in this thread for an example
I have searched for "suburban" "vss3000" "dlpkgm" "yukon" "tahoe" "smartstart" "vss4000" and spent
countless hours reading unrelated posts.
What I'm looking for is this:
I'd like to hook up the VSS3000 to the vehicle. Which wires are needed to be connected (assuming I'll
be using D2D with the DLPKGM).

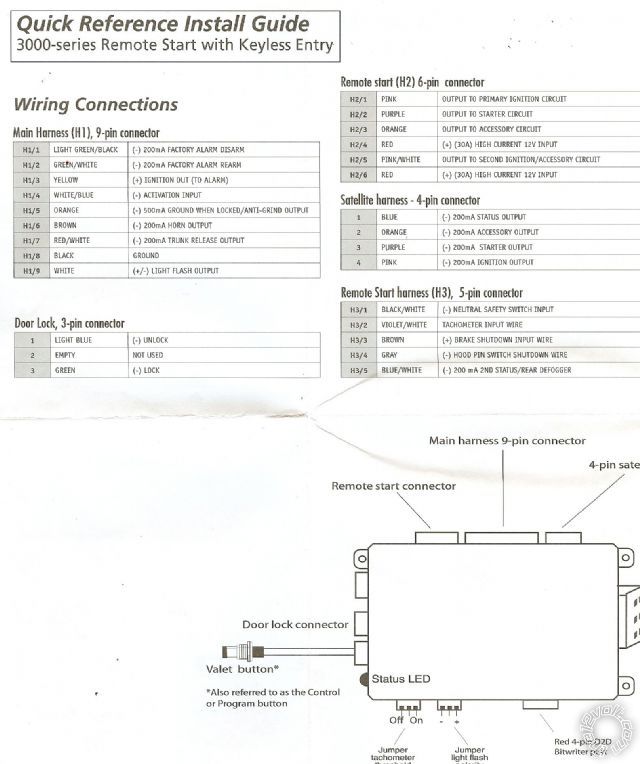

The VSS3000 has the following connections:
2005 suburban dlpkgm vss3000 smartstart -- posted image.

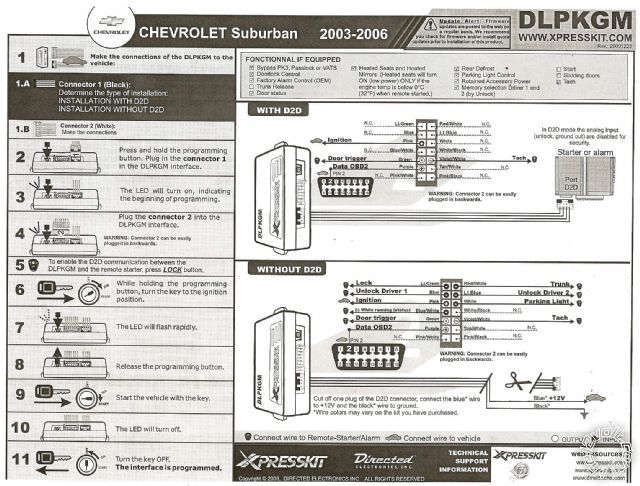

The DLPKGM has the following connections:
2005 suburban dlpkgm vss3000 smartstart -- posted image.
I'm looking at this wiring diagram:
2003-2005
Chevrolet Suburban Wiring Diagram
I'm guessing this:
Remote Start ----> Vehicle
--------------------------
H2/1 Pink    ----> Ignition 1 Pink (+) in Ignition switch harness
H2/2 Purple ----> Starter Yellow (+) in Ignition switch harness
H2/3 Orange ----> ACCESSORY /HEATER Blower 1 Orange in Ignition switch harness
H2/4 Red     ----> 12 Volt Constant Red (+) in Ignition switch harness
H2/5 Pink/White -> Ignition 2 White (+) in Ignition switch harness
H2/6 Red     ----> 12 Volt Constant Red (+) in Ignition switch harness
DLKPGM       ----> Vehicle
--------------------------
Purple       ----> OBD2-Pin 2
Pink        ----> Ignition 1 Pink (+) in Ignition switch harness
DLKPGM       ----> Remote Start
-------------------------------
Green        ----> ????? (Door trigger)
Violet/White ----> H3/2 Violet/White
D2D Port     ----> D2D Port
Is anything else required to be connected?
Does anything else really need to be hooked up when using the DLPKGM in D2D mode?
I appreciate any help that cen be provided.
q-bert
Member - Posts: 3
Member spacespace
Joined: November 27, 2010
Location: Illinois, United States
Posted: December 08, 2010 at 5:08 PM / IP Logged
Forgot 1 more connection
Remote start -----> Vehicle
H1/8 Black -----> Vehicle Ground
q-bert
Member - Posts: 3
Member spacespace
Joined: November 27, 2010
Location: Illinois, United States
Posted: December 08, 2010 at 8:35 PM / IP Logged
Ok.. maybe a couple more connections?
H1/6 Brown      ----> BLACK / YELLOW wire at steering column harness
H1/8 Black      ----> Ground
H3/1 BLACK/ White----> Ground
H3/2 Violet/White---> DLKPGM Violet/White
H3/3 Brown      ----> Brake Pedal Switch White
H3/4 Gray       ----> Hood Pin Switch
Still not sure about the DLKPGM Green wire. Does that go to pin 3 (green) on the Door Lock, 3-Pin connector of the R/S?
Thanks for any help!
that's gotta be everything?
blanx218
Silver - Posts: 654
Silver spacespace
Joined: September 23, 2008
Location: Pennsylvania, United States
Posted: December 08, 2010 at 9:47 PM / IP Logged
the green is not needed since you arent installing an alarm. the PURPLE / white connects to PURPLE / white for tach. everything else is D2D. i would also connect the parking lights (H1/9) to the brown wire in the drivers kick. i used a DLPKGM tonite and it did everything but parking lights
