556h yeah an old model

Home / the12volt's Install Bay / Car Security and Convenience / 556h yeah an old model (

Topic Closed)

Welcome Guest :)

Members

Next Page > < Prev Topic Next Topic >

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: January 13, 2011 at 12:16 PM / IP Logged

trying to get rid of this for a while but i have a 556H and have a issue with this green reference wire and where the heck it goes. http://www.directedstore.com/manuals/556HW.pdf

its a five pin plug the the wire its directing to, its NO pin there. Ive searched already and some tried to use the BROWN / black (negative) the ONLY other wire inthat harness that is not used and it didnt work. Can any one offer any expertise so i can get rid of this module?

Thanks!!

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: January 13, 2011 at 12:17 PM / IP Logged

and its for a 2002 honda accord ex

tedmond

Gold - Posts: 4,610

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: January 06, 2007

Location: Ontario, Canada

Posted: January 13, 2011 at 12:49 PM / IP Logged

connect referance wire to pin 1.

Ted

2nd Year Tier 1 Medical School

Still installing as a hobby...pays for groceries

Compustar Expert

kreg357

Platinum - Posts: 7,783

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: January 13, 2011 at 12:58 PM / IP Logged

Good question. Here is a link to the Fortin Key-Override-All for the 2002 Accord. https://ifar.ca/download/425/preview.html It is a 5 Pin connector and the colors match up but there is no pin outboard of the Ignition wire... Pin 1 in cars with a 7 Pin connector using Mode 1 is chassis ground. Might give it a try that way.

Soldering is fun!

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: January 13, 2011 at 1:09 PM / IP Logged

as always thanks guys!!!

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: January 13, 2011 at 1:29 PM / IP Logged

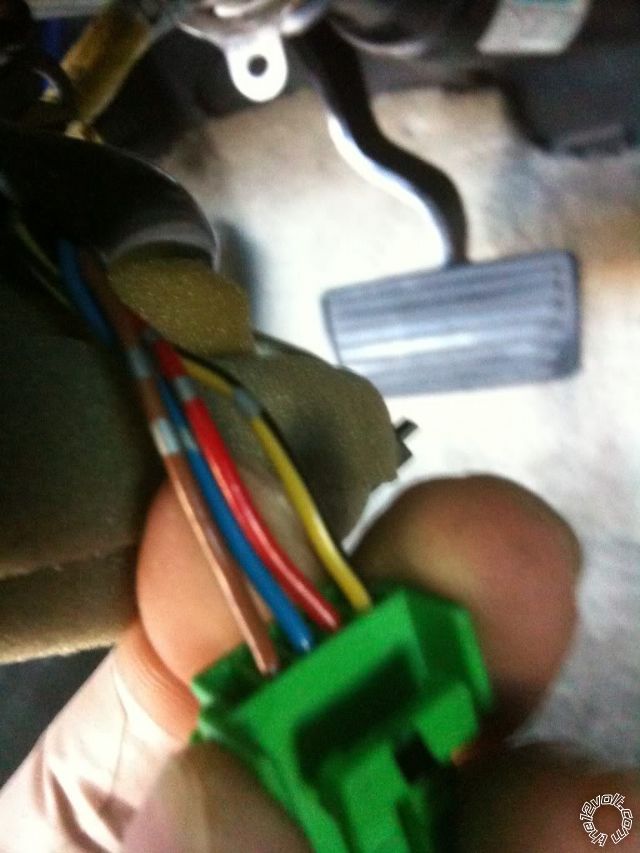

tedmond pin 1 is the ignition wire (yellow/black) Pin 4 wire is the BROWN / black (negative). is that the one you are refering to? There is no wire in pin 5.

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: January 13, 2011 at 1:32 PM / IP Logged

kreg357

Platinum - Posts: 7,783

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: January 13, 2011 at 1:44 PM / IP Logged

Did you try it going to chassis ground? (Just connected to the remote starts chassis ground wire connection.)

Soldering is fun!

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: January 13, 2011 at 1:56 PM / IP Logged

I dont have a way to DMM stuff like this since the instructions are a lil crazy . I havent tried it yet , but wanted to get second opinions who may have seen this before i just "guessed"

ayalja123

Copper - Posts: 64

Joined: September 30, 2003

Location: United States

Posted: September 06, 2011 at 4:29 PM / IP Logged

I'm having the same problem. Does anyone know where this green wire goes?
