cristu
Copper - Posts: 65
Copper spacespace
Joined: March 14, 2011
Location: Romania
Posted: March 23, 2011 at 1:57 AM / IP Logged
It's a romanian car: DACIA LOGAN, 1.5 diesel, year 2009 (made by RENAULT factory). I do not find the wiring diagram on this site. I just want to know if the isolate diodes are mounted on the right direction on the wires for (-) door switch wire and vehicle parking lights.
cristu
Copper - Posts: 65
Copper spacespace
Joined: March 14, 2011
Location: Romania
Posted: April 04, 2011 at 11:08 AM / IP Logged
Hi Howie II
I have a DEI 530T system and I want to mount it on my car. I have the user instructions and I want to know witch type of window system I have on my car.

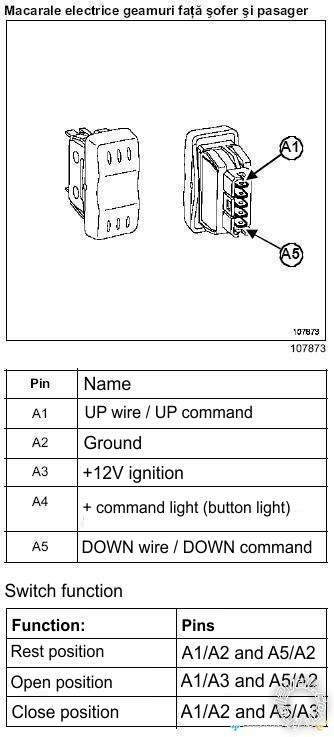

I attach you 2 images with the button diagram/wire meanings and motor.
When I turn on the engine I press the Up button > window UP and down button > window Down. The switch does not work if the engine is not running.I think is Type B - rest at +12V ignition but I'm not sure.
I appreciate if you look at the button's scheme and "light me up"
Thanks
Viper 350, 530t, 2009 Dacia Logan - Page 2 -- posted image.
Viper 350, 530t, 2009 Dacia Logan - Page 2 -- posted image.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 04, 2011 at 11:12 AM / IP Logged
Actually, that's an after market kit, Spal etc. and it rests at ground.
cristu
Copper - Posts: 65
Copper spacespace
Joined: March 14, 2011
Location: Romania
Posted: April 04, 2011 at 12:13 PM / IP Logged
You mean in my case the I have Type A window system ? rest at ground (-)
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 04, 2011 at 12:48 PM / IP Logged
Yes.
cristu
Copper - Posts: 65
Copper spacespace
Joined: March 14, 2011
Location: Romania
Posted: April 13, 2011 at 6:21 AM / IP Logged
Hi Howie II,

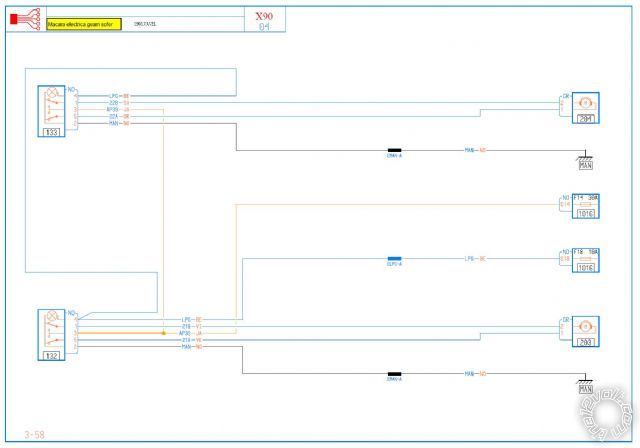

I have draw a wiring scheme to connect DEI530T to my existing wires at my car. (page 2 on the pdf file linked)
As you told me, I have Type A window system (Rest at ground )
Can you please look at my draw to see if I made all the wiring connections right ?
One more thing: Should I connect the ground wires (black and violet) to the wire the comes to window switch (A2 - ground) or should I connect it to a chassis ground (bolt or other ground location to my car)
DEI530T Wiring (PDF)
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 13, 2011 at 11:38 AM / IP Logged
Exactly right, if you're mounting in the door, use the window switch ground not any bolts.
The correct way to wire this is to mount the unit in the car and lead out to both window motors, you will then have one touch up-down operation on both windows.
cristu
Copper - Posts: 65
Copper spacespace
Joined: March 14, 2011
Location: Romania
Posted: April 13, 2011 at 11:56 AM / IP Logged
Thanks, I thought so about the location of the grounds.
The wiring scheme it's ok ? I mean do I correctly wire the leads from unit to my motor/switch wire ?
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: April 13, 2011 at 12:02 PM / IP Logged
Yes, all correct.
cristu
Copper - Posts: 65
Copper spacespace
Joined: March 14, 2011
Location: Romania
Posted: April 18, 2011 at 8:58 AM / IP Logged
Hello,
I want to install an DEI 545T Nite-Lite system to my car and I need to know witch is the polarity of the vehicle's parking light and head light circuits.
I presume it's (+) 12V switched for both parking lights and headlights but I;, not sure of that. So I write you the light switch diagram to guide me to the right polarity
Thank You
Light switch pins & function:
-----------------------------
Pin     Name
========================
A1     Fog lights
A2     N/A
A3     Back foglight
A4     Acustic warning
A5     Right signal
A6     Ground
A7     Left signal
B1     Parking lights
B2     Constant +12V parking lights
B3     Constant +12V HeadLight low-beam
B4     Headlights (double pltical unit)
B5     Headlights (simple optical unit)
B6     Constant +12V Headlight high-beam
B7     Headlights high-beam
Function:
Pin          Command
=========================
A7/A6          Left signal on
A5/A6          Right signal on
B1/B2          Parking lights on
B5/B3          Headlights low-beam on
B5/B3/B7/B6     Headlights high-beam on
A1/B2/B1/B2     Foglights on
A3/B2/B1/B2     Rear foglight lamp
A4/B6          Acustic warning
