2012 Kia Sorento Alarm/Remote Start Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
chev104275
Gold - Posts: 1,396
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: January 04, 2012 at 8:08 PM / IP Logged
Figured i would give this a try pics are kind of fuzzy (taken with my phone)
This is on a 2012 kia Sorento Regular key Using a 4103
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

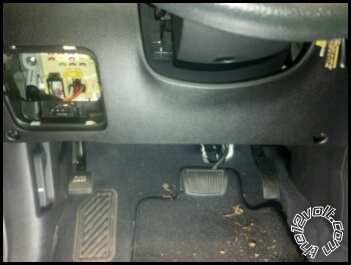

2 phillps head screws in bottom corners
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

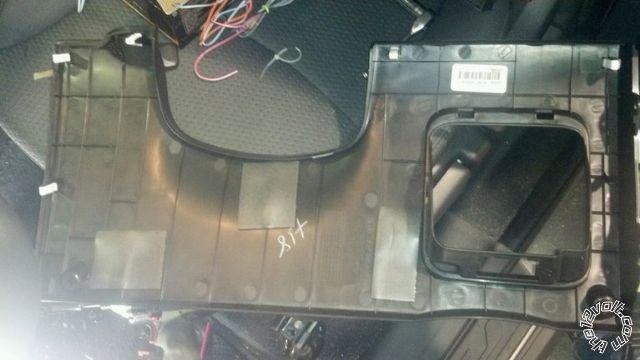

white clips on back side of dash panel very easy to break cheap plastic
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

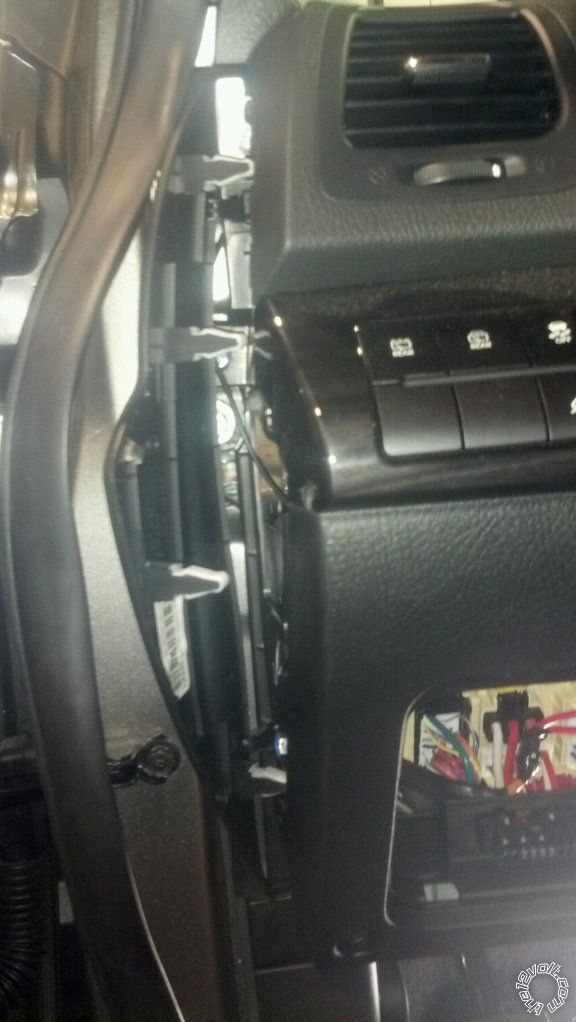

more cheap clips
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

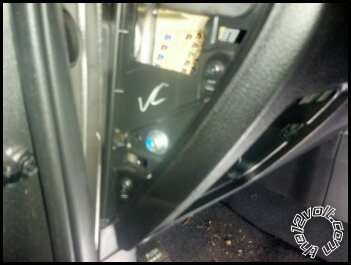

2 phlips head screws in side of front panel
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

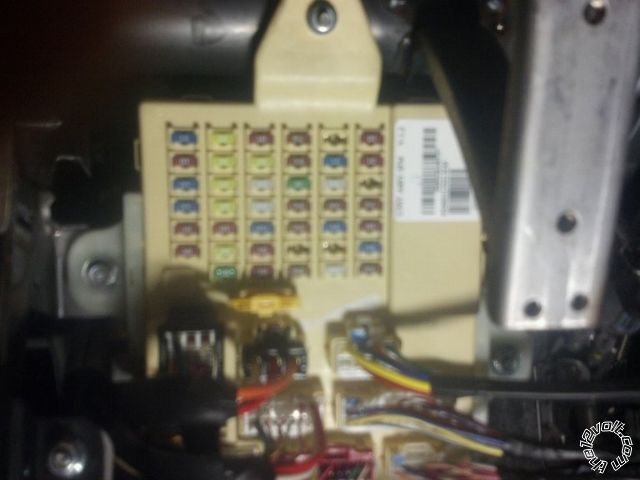

5 10mm bolts and 1 10mm nut holds this in
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

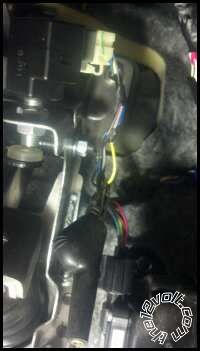

Brake-yellow wire at switch
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

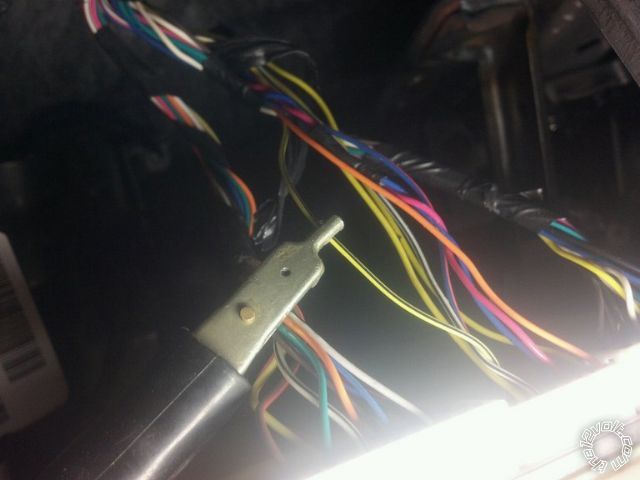

Drivers door unlock-Back of fuse box (3 10mm bolts hold fuse box in) middle plug yellow/black test using the key in the drivers door turning the key 2 times will ground this wire. Need to use this wire tied in with the unlock wire using a diode between to isolate the 2 or drivers door wont unlock (Diode band faces remote start)
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

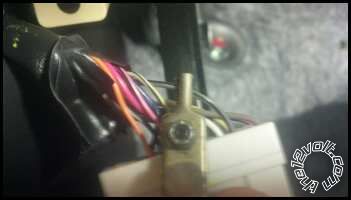

Unlock-Gray/Black ground triggered bottom connector right side of fuse box
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

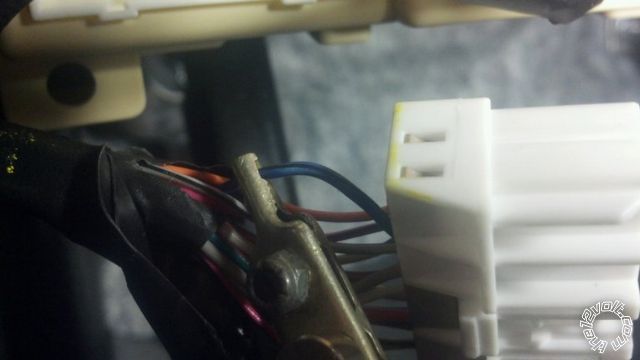

Lock-Blue/Black ground triggered same connector as unlock
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

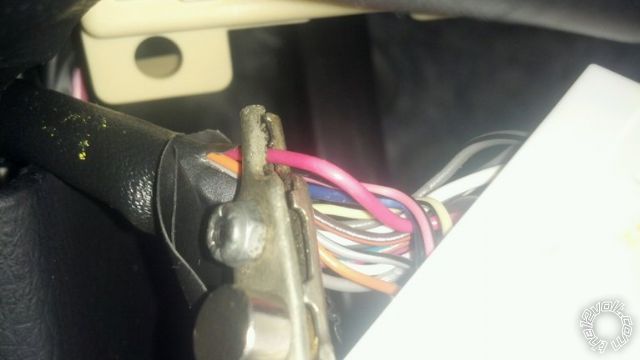

Factory alarm disarm-pink same connector as locks test using key in door
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

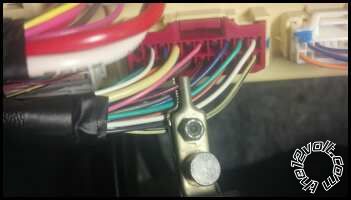

Hood trigger-RED / black in red connector front of fuse box when the hood is open wire is grounded (You can kind of see the white connector to the left of the red connector that has the locks in it)
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

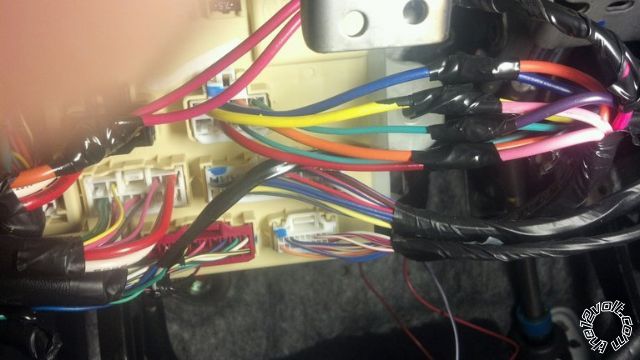

fuse box orange is ing 1,blue acc1,yellow is acc2,green is starter
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.
lrg black connector in middle orange is 12v
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

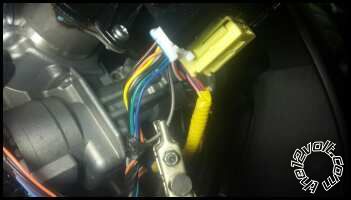

Horn-Gray/black negitive
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

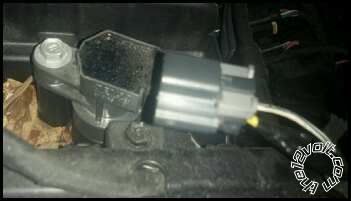

tach- yellow wire cylinder 4 coil
[2 I forgot to add]
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

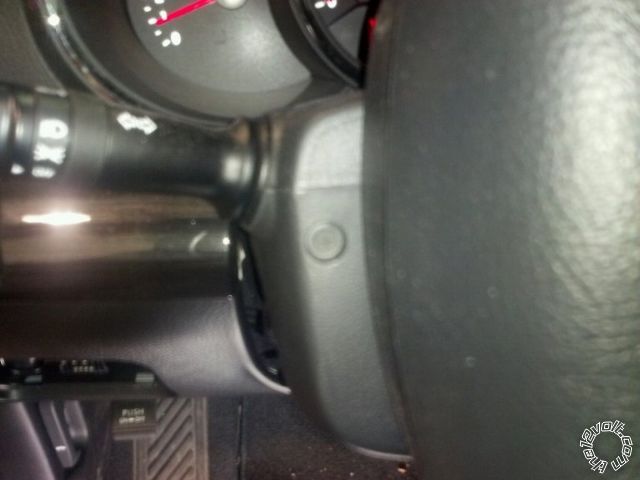

2 Phillps head screws one on each side
2012 Kia Sorento Alarm/Remote Start Pictorial -- posted image.

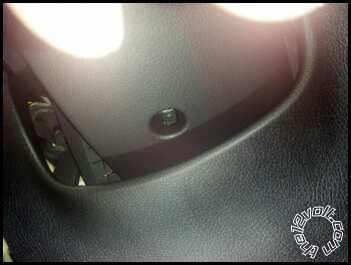

1 Phillps head under column shroud
If i Can't Install it    I Don't need it   Joe
shortcircuit161
Silver - Posts: 556
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: August 29, 2010
Location: Pennsylvania, United States
Posted: January 06, 2012 at 11:20 AM / IP Logged
Thanks for the pictorial. I did a 2011 Sorento last year with smartkey. Real nice vehicle to install in.
chev104275
Gold - Posts: 1,396
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: January 06, 2012 at 6:24 PM / IP Logged
Yea not bad at all I do alot of them
If i Can't Install it    I Don't need it   Joe
chev104275
Gold - Posts: 1,396
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: October 04, 2012 at 4:45 AM / IP Logged
Just an update the 2013 is the same truck for both the reg key and smart key
If i Can't Install it    I Don't need it   Joe
bpracin13
Member - Posts: 1
Member spacespace
Joined: January 10, 2013
Location: Vermont, United States
Posted: January 10, 2013 at 5:59 PM / IP Logged
Had a quick question on what type of diode your using on this install puttin my first one in this weekend and was wondering thanks
chev104275
Gold - Posts: 1,396
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: January 10, 2013 at 6:54 PM / IP Logged
I used a 1n4007
If i Can't Install it    I Don't need it   Joe
voltswagon
Copper - Posts: 75
Copper spacespace
Joined: November 21, 2012
Location: Iowa, United States
Posted: December 20, 2013 at 10:42 PM / IP Logged
I'm thinking of getting 2013 Sorento. Xpresskit does not have anything listed for stand key. So we dont need any bypass for these vehicles?
Dont Drive and Text, but
Do Text Then Drive
chev104275
Gold - Posts: 1,396
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: December 21, 2013 at 4:28 AM / IP Logged
If it's us built then no transponder. All the wiring is the same as the 12
If i Can't Install it    I Don't need it   Joe
mandofever
Member - Posts: 11
Member spacespace
Joined: December 09, 2010
Posted: December 30, 2013 at 3:36 PM / IP Logged
Apologies for a partial repeat question here, i just made a similar post on another thread about this before i ran across your pictorial.
You mention that the lock/unlock is ground triggered but all the wiring diagrams i've found for this vehicle show the door lock/unlock and arm/disarm wires as negative which i assume means they require positive pulse to trigger. Am I misunderstanding this?
The same question applies to the dome light and horn and trunk release which are also listed as negative on all wiring diagrams... Do these all require relays to reverse polarity and pulse positive?
Also the diagrams show the parking lights having a negative wire at the switch harness as well as two separate (L & R) positive wires at the dash fuse box. which of these should be used?
chev104275
Gold - Posts: 1,396
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: December 30, 2013 at 7:05 PM / IP Logged
All the wiring labeled negative trigger requires a ground to activate the circuit.
For parking lights use the blue at the switch ground triggered. You can also grab parking lights in the back of the fuse box same blue wire.
Make sure you test each wire with a dmm before you connect to it to avoid any expensive damage to your truck.
If i Can't Install it    I Don't need it   Joe
