door trigger?


Post ReplyPost New Topic
< Prev Topic Next Topic >
vinchinzo
Copper - Posts: 66
Copper spacespace
Joined: October 11, 2012
Location: Kentucky, United States
Posted: November 24, 2012 at 11:13 AM / IP Logged

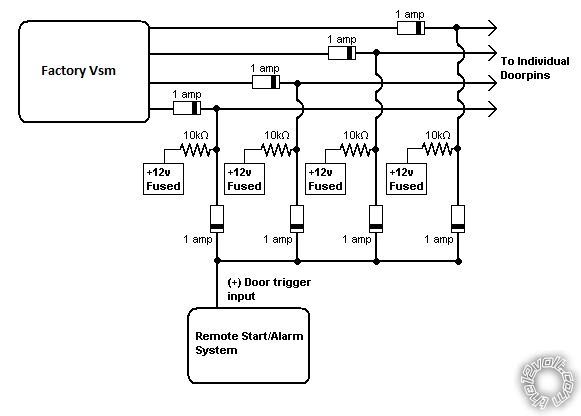

This is how I done it only because Using one diode/trigger does not always work on some vehicles...This way uses 8 diodes and 4 resistors. There are details on how to install them in detail in the blink below.
Door Triggers
door trigger? - Page 2 -- posted image.
When in doubt....kick it!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: November 24, 2012 at 11:21 AM / IP Logged
Vinchinzo, the diagram you're using has nothing to do with the OP or the original vehicle.
You're showing a Ford/Mazda/Volvo NC circuit.
As for Toyotas with time delay on the dome light, I've always gone to the switched domelight feed with no problems.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: November 24, 2012 at 11:26 AM / IP Logged
Ah clever me, I just went to that post.
Having said that it was a really good post well done!
Just remember how differently wired, some vehicles are to others.
zapster
Member - Posts: 16
Member spacespace
Joined: November 17, 2012
Posted: November 24, 2012 at 6:27 PM / IP Logged

howie II, is the wire color for the headlight relay wht/rd about 18awg? where is the input and output located at?  I need to connect  a wire to it. Thanx

cowboy
zapster
Member - Posts: 16
Member spacespace
Joined: November 17, 2012
Posted: November 24, 2012 at 6:41 PM / IP Logged
howie, do you know which doors are positive or negative? The doors showed 12v when closed and 0v when opened. thanx
cowboy
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: November 24, 2012 at 7:25 PM / IP Logged
To answer both questions;
a) Could be WHITE/ red the place to look is the steering column loom test as the door triggers when you turn on the headlights it's NEG (-) switching.
b) What you've described for the door trigger is NEG (-) switching.
With the doors closed the circuit is grounding through your DMM hence 12V+.
Here comes the blasphemy;
Use an incandescent bulb test light, e.g. Snap-On CT-42 or MAC equivalent.
On the above AND Toyota lock triggers it's far quicker than using a DMM.
Virtually every pro when they know a particular car will use that method rather than a meter.
zapster
Member - Posts: 16
Member spacespace
Joined: November 17, 2012
Posted: November 26, 2012 at 12:04 AM / IP Logged

So far, alarm is working. Tomorrow I just need to dress the wires, connect the doors to the alarm and put a fuse to the siren.

cowboy
zapster
Member - Posts: 16
Member spacespace
Joined: November 17, 2012
Posted: November 26, 2012 at 1:39 AM / IP Logged
2006 toyota sienna ? does anybody here know how to disable the airbag and remove it? I'm afraid to touch the airbag coz it might deploy. I need to access the wires under the steering column. Thanx
cowboy
zapster
Member - Posts: 16
Member spacespace
Joined: November 17, 2012
Posted: November 26, 2012 at 1:45 AM / IP Logged

 I just noticed that I mentioned the "doors" on my 1st post that might be misinterpreted. I meant connecting the power door locks. Thank You

cowboy
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: November 26, 2012 at 3:46 AM / IP Logged
Disable airbag? Yes but why?
You won't have to remove the steering wheel there are probably 2 screws facing you UNDER the hub securing the steering column cover (cowling).
Turn on engine and turn the steering wheel to access them.
