power folding mirrors

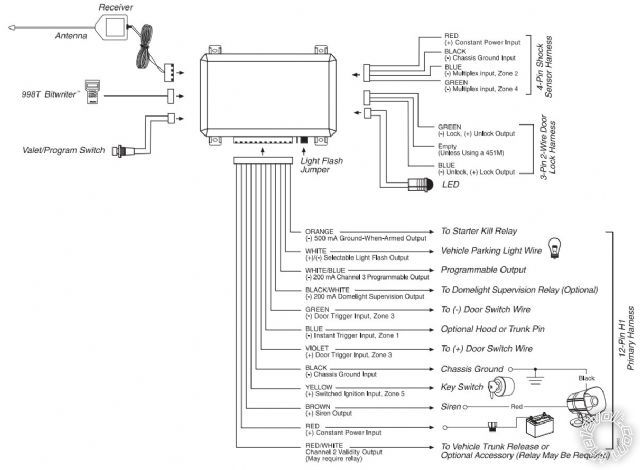

heres the diagram for the DEI 451M "since i just figured how to upload pictures." Viper 350HV wiring here the wiring diagram for the mirrors to the OEM relay box and to the main switch diagram hope this helps with the wiring diagram :D

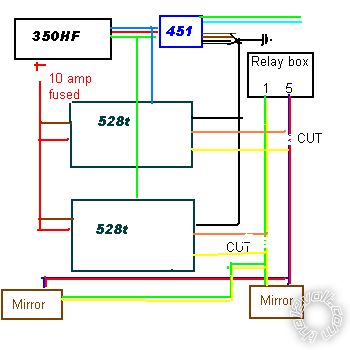

I wish I could cut and paste your pictures but anyway much less confusing now. Take the blue and green from the cable from 350 to 451 join to the BLACK/ white on each 528t Use a 10 amp fused feed to joined red and brown on 528ts, to ground, 451 BROWN / white, WHITE/ black and blacks from 528ts. Cut the RED / blue and the GREEN/ YELLOW between the mirror fold switch and the mirrors. In other words at 1 and 5 as per that diagram. mirror_fold_1.bmp

Right; saw the previous, you're wide awake now aren't you Now tell me how you did those pics 'cause I'm a granddad and my IT experts (daughter, son-in-law and grandchildren are all in New Zealand).

howie ll wrote: Right; saw the previous, you're wide awake now aren't you Now tell me how you did those pics 'cause I'm a granddad and my IT experts (daughter, son-in-law and grandchildren are all in New Zealand).

i got the diagrams either from honda-, directed.com, and etc tech and searching google. ive done alot of searching for the setup i have. @_@ Thanks again for the diagram! this would close my mirrors when the system arms, and open the mirrors when they unlock? just to clarify it.

as for pictures. when replying. you see the happy face icon at the top of the reply box? right next to it is a picture frame with an up arrow. click that. it lets you upload pictures from your computer and inserts it into the reply message automatically.

Yes and if you want, I'll show you the variant that folds when you turn off the ignition and unfolds when you turn the ignition on again.

Thanks, I've never succeeded, I've been told to resize them. Never mind. Trouble is with my pics you'd have to reverse them...sorry R/hand drive and my famed weird sense of humour.

howie ll wrote: Yes and if you want, I'll show you the variant that folds when you turn off the ignition and unfolds when you turn the ignition on again.

the wiring diagram you gave me should work open and close mirror when the alarm arms and disarms correct. i dont have a factor alarm or factory door locks. also on the second 528T do i leave the blue loop un cut? the first 528t was cut. thanks again

OK, Don't cut the loops. That determines the input polarity on the BLACK/ white 528t wire, uncut = NEG, cut = POS, that would explain fuse blowing since those wires REST AT GROUND.

howie ll wrote: OK, Don't cut the loops. That determines the input polarity on the BLACK/ white 528t wire, uncut = NEG, cut = POS, that would explain fuse blowing since those wires REST AT GROUND.

so on both of the 528t blue loops leave uncut? i really appreciate your time in answering my questions.
