ANYONE KNOW HOW TO CONNECT  H3 HARNESS OF CLIFFORD 590.2  ON HONDA ELEMENT 2003
adriantech
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 02, 2013 at 1:00 AM / IP Logged
Define your question
Where to connect it?
What colours?
How to test?
How to solder the joints?
This is all a bit vague.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 02, 2013 at 2:12 AM / IP Logged

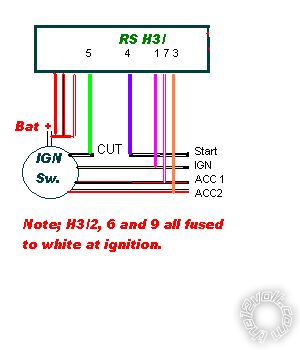

Here's one method:- honda_element.bmp

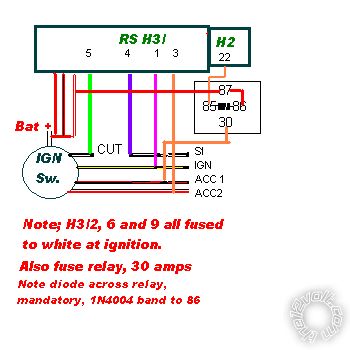

or this version:- 611_honda_element.bmp
Either will work, note most readily available relay is a 5 pin 87a, you can use that, just don't use terminal 87a.
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: February 02, 2013 at 7:51 AM / IP Logged

H3/2, 6, 9, and H1/2 to White 12 volt constant....H3/4 to car side of cut BLACK/ White starter wire, H3/5 to switch side of cut BLACK/ White.... H3/1 to BLACK / YELLOW...H3/3 to BLACK/ Red...

H3/7 to WHITE/ Red,( H3/7 need to be set as ACC2 in the brain of the clifford unit, Default is Ignition 2. Can be changed in Menu 3, Item 8, Option 2)

Test and verify the wires with a Digital Multi Meter BEFORE making your connections.  Solder and tape connections. Do Not use T-Taps or scotch locks connectors.

When all else fails, Read the Instructions
