94 4runner astrostart guidance

I am trying to install an astrostart RS-624 in my wifes 94 4runner 3.0 auto.

I think I'm close but yet so far away.

I have ignition output attached to ignition #2

I have no clue what to do with accessory output, 12vdc output, anything in H3 programmable outputs (especially Pulse Start Input), Green ouput when running.

Once that is set the levels of programing have me scratching my head

Please help me! Im heading out of town in a couple days and I really want to get this taken care of

Thanks!

The acc wire output goes to your acc wire on the 4 runner . Ur GWR wire is typically used for ur anti grind relay.No better feeling then getting a remote start to work right!

Wow how did I over look the accessory wire.. Any clarification on whether or not my ignition output goes to ignition one or two? Also pulse start input wire? Sounds important

You need to pick up both of the ignition wires. You can hook it up to ign. 1. Now look on the R/S for a wire that can be programed for 2nd ignition. Not sure if with this unit u have a + u can program for that. If not u typicaly have a -200ma for a 2nd ignition but you will need a relay to convert polarity. Theres a section on relays on this site. Take a look at it. Fyi make sure you test every wire you tap into. Make sure you pick up the right one.No better feeling then getting a remote start to work right!

Any key words for the wire that goes to ignition wire #2?

Here are a few resources... The 12 Volt : https://www.the12volt.com/installbay/vehicles.html Bulldog Security : http://www.bulldogsecurity.com/bdnew/vehiclewiringdiagrams.asp Audiovox : http://techservices.audiovox.com/AccessRequest.aspx    Requires free sign-up. DEI : http://www.readyremote.com/main.asp Download all the available guide lists, compile them into one list, then compare them to your vehicle. Use a Digital Multi Meter to locate and verify all necessary wires. You can also make up a "cheat sheet" listing all your connections and post it on the forum for member review and input. There will be many unused wires on the RS-624 system. Unfortunately I can't make out the diagrams you included and you will need an extra relay to power the trucks IGN2 wire. Hopefully one of the H3 programmable outputs can do that. Soldering is fun!

94 4runner has 2-3 ign wires Blk\yellow, a second blk\yellow and blk\red astro units have orange, white(p9) and I would use the green Plight wire as your third. It can be programed to ign. then take one of your programmable output (purple,brown,white,white\blue for plights and grab neg plights. do not hook up the pulsed start wire, this is similar to dei's activation wire.

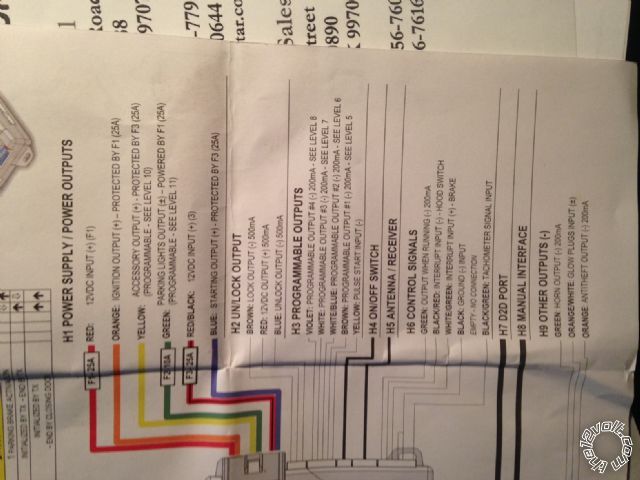

hope that picture is better. Im searching through the links posted. Thanks so much for the help thus far

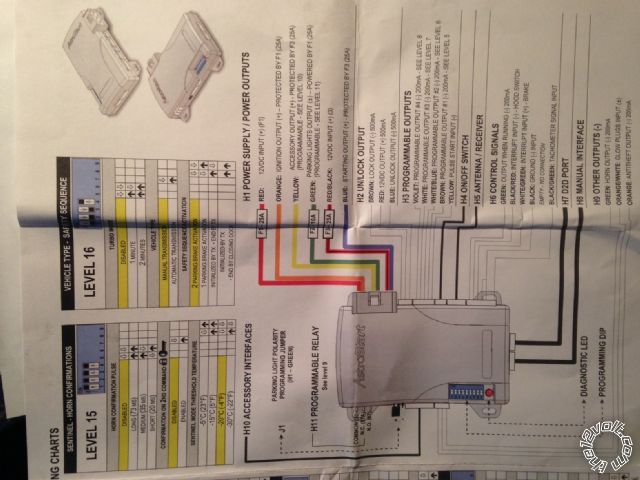

I have all the diagrams complied from the links. They all say the same as what is listed on this site. Could anyone take the time and go down the list of wires and tell me what I can omit so I have a smaller list to work with.
