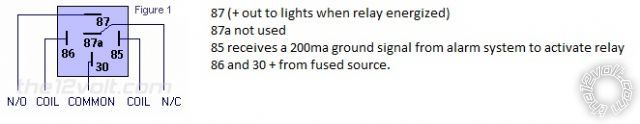

good day folks, here is the situation i need to resolve. i am using a relay to issue a + to a lighting system on my car. the relay is signaled by my alarm system issuing a -200MA ground. my issue. ive set the relay so that when triggered by a ground, it will output a + to the system. my problem is that there is a + feedback on the pin that is receiving the ground signal when the alarm system is sending the ground. ive tried to put a diode, but it will either block all signal or prevent the - to enter will keeping the + on the other side. what would be the way to fix this?
thank you
Eric

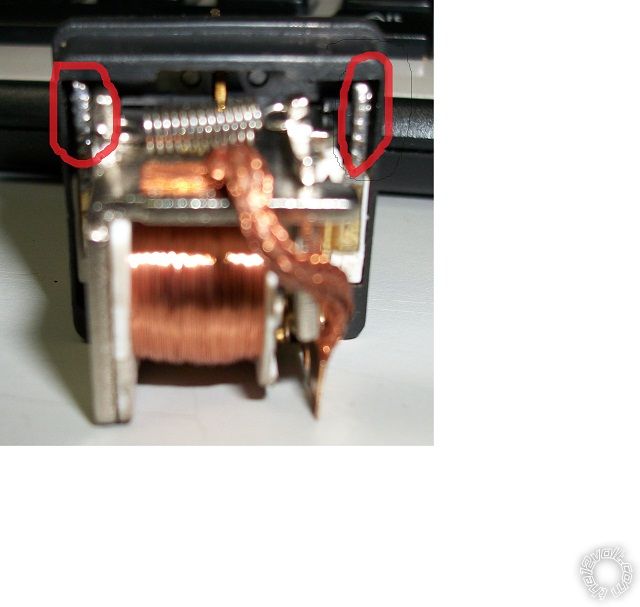

Good day, ive tried with a n4004 with one leg on each of these red spot that have solder on them and what seems to be the coil wire soldered on it. still no luck, with my test light, im still seeing a +12v signal on the input signal.
