viper 4706v & flcan bypass remote start


Post ReplyPost New Topic
< Prev Topic Next Topic >
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: December 17, 2014 at 5:48 PM / IP Logged
If I reset my flashlogic Flcan does that erase the firmware on it? I am having trouble getting my Viper remote start to respond to about anything. It is my first Viper install but I have done other brands. It is on 2012 Toyota Sienna. My Flashlogic gave me the red flashing light the first time I tried to program key to it (I am wondering if I forgot to select the W2W or D2D mode first before trying to program) and then I reset it with holding down the programming button while plugging in the D2D wire.
Well! Hello there. Can you help me? Hey, don't just walk away.
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: December 17, 2014 at 5:50 PM / IP Logged

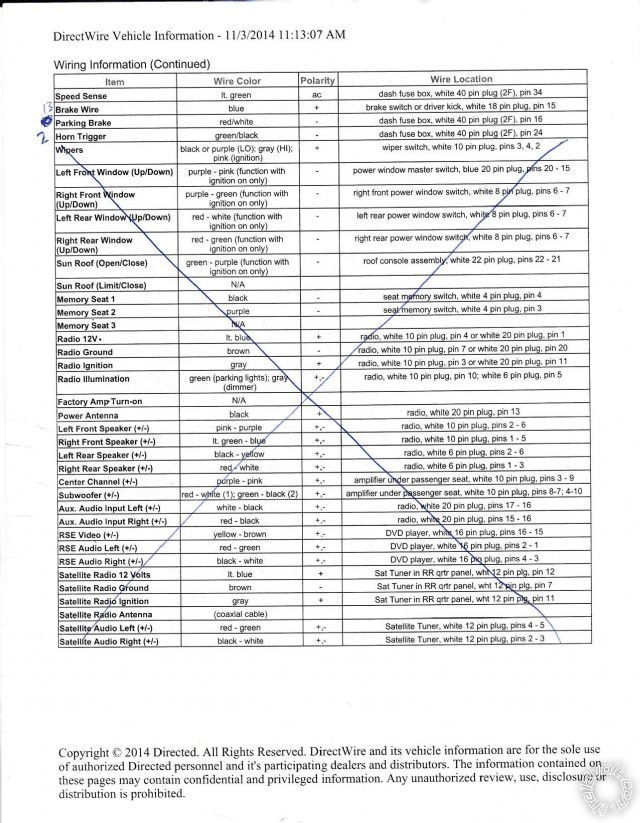

viper 4706v & flcan bypass remote start -- posted image.
Well! Hello there. Can you help me? Hey, don't just walk away.
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: December 17, 2014 at 5:51 PM / IP Logged

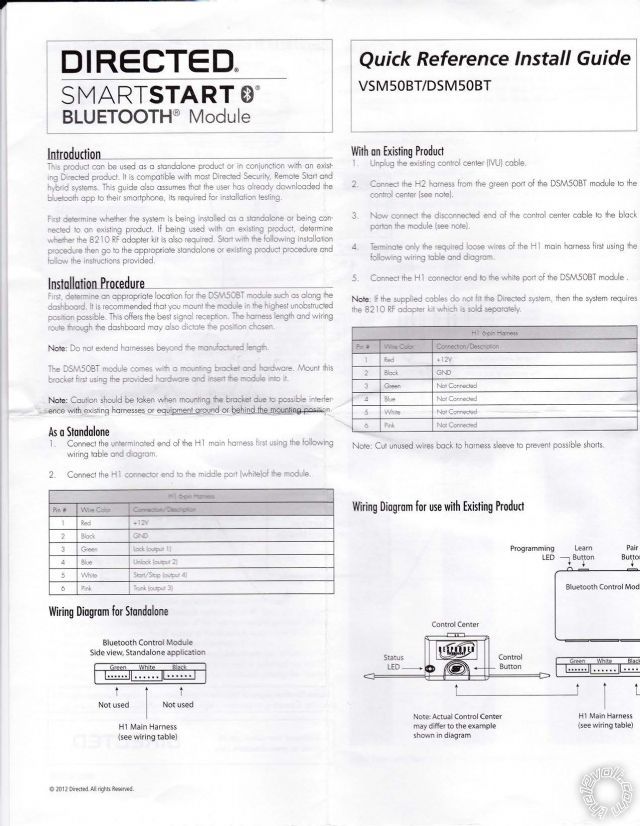

viper 4706v & flcan bypass remote start -- posted image.
Well! Hello there. Can you help me? Hey, don't just walk away.
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: December 17, 2014 at 5:52 PM / IP Logged

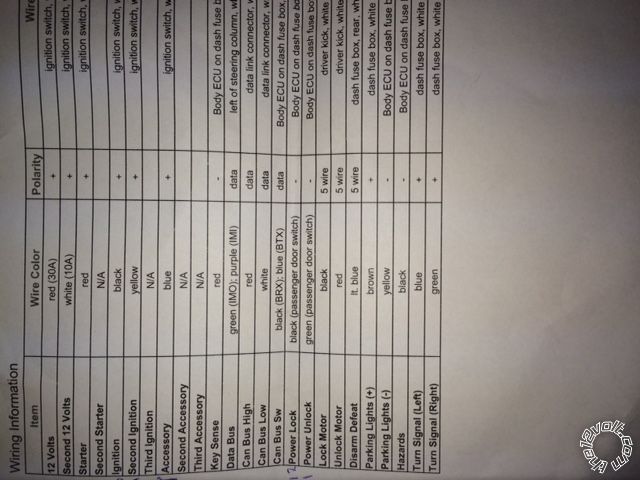

viper 4706v & flcan bypass remote start -- posted image.
Well! Hello there. Can you help me? Hey, don't just walk away.
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: January 26, 2015 at 11:02 AM / IP Logged

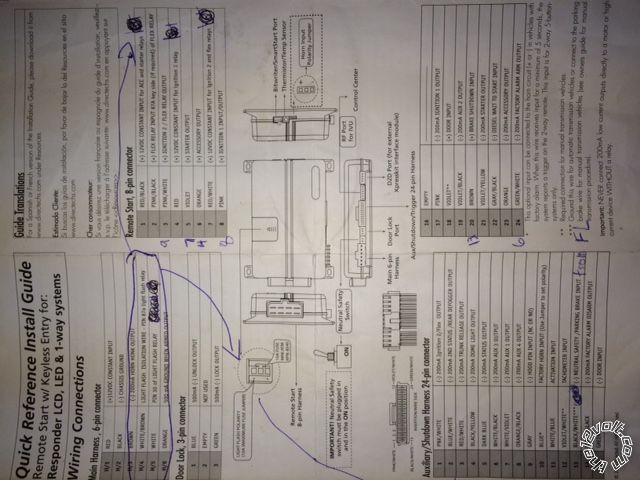

viper 4706v & flcan bypass remote start -- posted image.
Well! Hello there. Can you help me? Hey, don't just walk away.
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: January 26, 2015 at 11:02 AM / IP Logged
viper 4706v & flcan bypass remote start -- posted image.
Well! Hello there. Can you help me? Hey, don't just walk away.
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: January 26, 2015 at 11:03 AM / IP Logged
viper 4706v & flcan bypass remote start -- posted image.
Well! Hello there. Can you help me? Hey, don't just walk away.
auto enhancers
Copper - Posts: 203
Copper spacespace
Joined: April 09, 2012
Location: Indiana, United States
Posted: January 26, 2015 at 11:17 AM / IP Logged
it will only reset it if you do a master reset.
gojaly
Member - Posts: 21
Member spacespace
Joined: December 13, 2014
Location: Manitoba, Canada
Posted: January 26, 2015 at 11:54 AM / IP Logged
So in answer to my own question on whether resetting the flashlogic erases the firmware; it appears it does. I got a cable and reprogrammed the bypass module and now it programs the key and I get no error messages from the LED on it.
However I get no response from the Viper. No door locks, no remote start, and so on. I can pair the remote with the system and then the vehicle honks once it's paired but otherwise nothing. So can you help me? Here is my wiring information:
Main Harness
     H1 Red – goes to red 12 volts (30A) on ignition switch
     H2 Black – goes to chassis ground – I tested connection and it is solid
     H3 Brown – goes to GREEN/ black negative horn trigger
     H4 WHITE/ Brown – not used
     H5 White – goes to yellow negative parking lights (polarity jumper set to negative)
     H6 Orange – not used
Remote Start Harness
     1 RED / Black – goes to red 12 volts (30A) on ignition switch
     2 Pink/Black – not used
     3 Pink/White – goes to yellow second ignition
     4 Red – goes to red 12 volts (30A) on ignition switch
     5 Violet – goes to red starter on ignition switch
     6 Orange – goes to blue accessory on ignition switch
     7 RED / white – goes to red 12 volts (30A) on ignition switch
     9 Pink – goes to black ignition on ignition switch
Auxiliary/Shutdown Harness – if it’s not listed I didn’t use it.
     3 RED / White Trunk Release output – using diodes I wired this to my power sliding door trigers so when I press the trunk release (it doesn’t have a power trunk) it opens my doors. Should work right?
     9 Gray Hood pin input – I didn’t use it because the van has hood pin switch, see Flashlogic diagram.
     12 Violet/White Tachometer – I wired it to yellow tachometer but according to Flashlogic diagram I needn’t have.
     13 BLACK/ White Neutral Safety – Not used in data 2way?
     20 Brown Brake Shutdown – blue brake wire in driver kick.
Door Lock Harness – not used according to Flashlogic diagram?
FlashLogic Idatalink Harnesses – if it’s not listed I didn’t use it. I am using the D2D (2Way) mode.
     Data Wire connected from Viper to Flashlogic
     Parking light output – see H5 of Main Harness
     WHITE/ Black SIL – goes to vehicle side of SIL wire; it says the wire is a white wire on pin 10 but the only white wire on that harness is on pin 9.
     WHITE/ Red SIL – goes to connector side of SIL wire.
     BROWN / Red CANH – goes to Red Can Bus High pin 6 OBDII
     BROWN / Yellow CANL – goes to White Can Bus Low pin 14 OBDII
     Orang/Black Immobilizer Data – goes to White pin 7 OBDII
     ORANGE / White Doorlock Datat – goes to Pink pin 26 of 16 pin connector
     Pink Ignition Input – goes to Black Ignition on ignition harness
     Gray/Red Hood input – not used because of OEM hood switch
Well! Hello there. Can you help me? Hey, don't just walk away.
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: January 26, 2015 at 12:17 PM / IP Logged
once the idatalink is flashed, you cannot wipe the firmware off it. Not sure how your "reset" would have done it.
you need the main harness connected, remote start harness, ground your neutral safety wire, parking lights, change setting menu 3 item 1 to setting 2 for automatic transmission. with the DBI you wont need to do many connections.
Ted
