Hi I have just fitted a 3000lb 24v winch to my trailer to haul up my toro mower. I require a reverse polarity relay diagram for 24v system using common automotive relays that are available In australia. The winch is only used for short periods and average loads. Any help appreciated.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: December 23, 2014 at 1:32 AM / IP Logged Link to Post Post Reply Quote howie ll
Go to the relay section, look for locking, 5 wire it's essentially what you need.
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: March 29, 2015 at 6:59 PM / IP Logged Link to Post Post Reply Quote hotwaterwizard

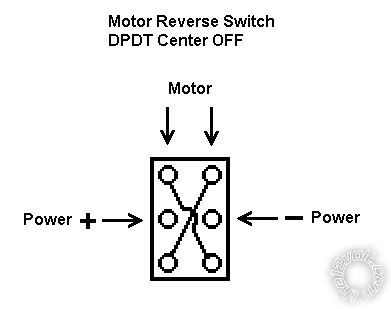

24v winch reversing -- posted image.You could use a switch or 2 standard 24 volt relays .

24v winch reversing -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
