How to Create a Ground While Armed?


Post ReplyPost New Topic
< Prev Topic Next Topic >
kulblue
Copper - Posts: 74
Copper spacespace
Joined: December 05, 2015
Posted: March 05, 2016 at 6:16 PM / IP Logged Link to Post Post Reply Quote kulblue
I have Alarm with out Ground-While-Armed. I want to add DEI 516U to my alarm and need to connect the Ground-While-Armed. How to Create a Ground-While-Armed? My car is Honda Accord 09.
the12volt
Administrator - Posts: 3,938
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: March 05, 2016 at 7:17 PM / IP Logged Link to Post Post Reply Quote the12volt
What alarm do you have? Does your alarm have door lock/unlock outputs? Do you have a manual for this alarm?
How to Create a Ground While Armed? -- posted image. the12volt • Support the12volt.com
kulblue
Copper - Posts: 74
Copper spacespace
Joined: December 05, 2015
Posted: March 05, 2016 at 7:27 PM / IP Logged Link to Post Post Reply Quote kulblue
I Bought my alarm from china and doesn't have a GWA. Yes have the lock/unlock output. The alarm fratures remote start/stop , push button start/stop and pke (passive keyless entry)
the12volt
Administrator - Posts: 3,938
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: March 05, 2016 at 7:51 PM / IP Logged Link to Post Post Reply Quote the12volt
You could wire relays to create a latch when disarmed/unlocked that would open one relay's normally closed terminals that would supply a ground when the alarm is armed/locked. When disarmed/unlocked the normally closed contacts would open. Wiring the relays (latch) to only energize while disarmed would prevent any additional drain on the vehicle's battery while the alarm is armed. I can draw this up, but would like more information about your alarm.
Are the door lock outputs from your alarm negative or positive outputs? Can you upload the manual for your alarm or take photos of it and post them here?
How to Create a Ground While Armed? -- posted image. the12volt • Support the12volt.com
kulblue
Copper - Posts: 74
Copper spacespace
Joined: December 05, 2015
Posted: March 05, 2016 at 8:16 PM / IP Logged Link to Post Post Reply Quote kulblue
Will do. I'll take photo shortly. Thanks for reply
The door lock has -/+ output. I used - neg door lock/unlock
i am an idiot
Platinum - Posts: 13,250
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: March 05, 2016 at 8:26 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Check the 2 wires that go to the LED. 1 of those may be ground when armed.
kulblue
Copper - Posts: 74
Copper spacespace
Joined: December 05, 2015
Posted: March 05, 2016 at 8:39 PM / IP Logged Link to Post Post Reply Quote kulblue
doesn't had LED
kulblue
Copper - Posts: 74
Copper spacespace
Joined: December 05, 2015
Posted: March 05, 2016 at 8:44 PM / IP Logged Link to Post Post Reply Quote kulblue

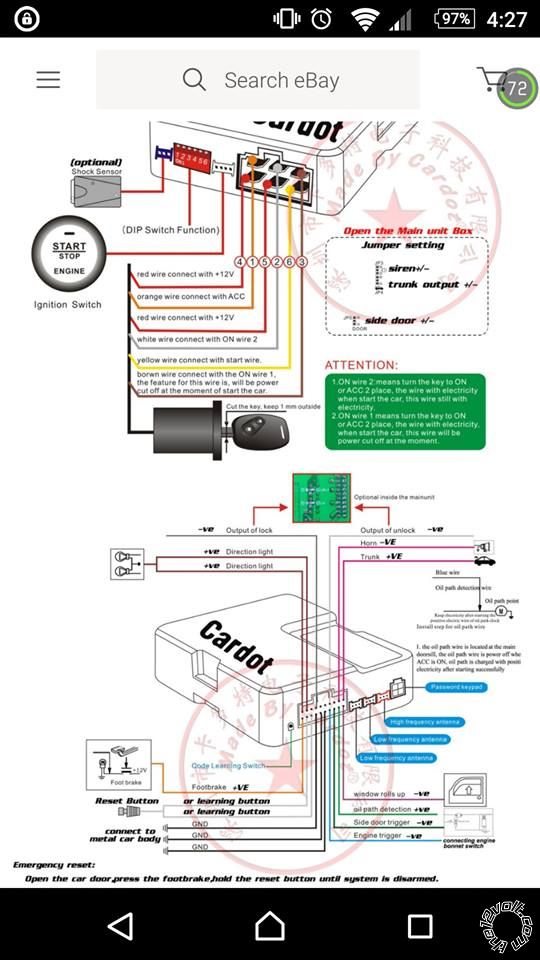

How to Create a Ground While Armed? -- posted image.
Ween
Platinum - Posts: 1,294
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: March 05, 2016 at 9:07 PM / IP Logged Link to Post Post Reply Quote Ween
A dual coil latching relay (such as this.. http://www./itm/Latching-Relay-Dual-Coil-12-Volt-/121913101427?hash=item1c62964c73:g:NJMAAMXQTM1R7dO3 ) connected to the door lock outputs would provide a ground while armed signal. The relay has two coils (set and reset). Set coil to lock output, reset to unlock output. The contacts of the relay wired accordingly.
kulblue
Copper - Posts: 74
Copper spacespace
Joined: December 05, 2015
Posted: March 05, 2016 at 9:30 PM / IP Logged Link to Post Post Reply Quote kulblue
The Link doesn't work. Do you have the Diagram? Thanks for reply.
