How to Create a Ground While armed?

Home / the12volt's Install Bay / Car Security and Convenience / How to Create a Ground While armed?

Welcome Guest :)

Members

< Prev Page Next Page > < Prev Topic Next Topic >

george20000

Member - Posts: 11

Joined: September 03, 2016

Location: Greece

Posted: September 04, 2016 at 1:45 PM / IP Logged

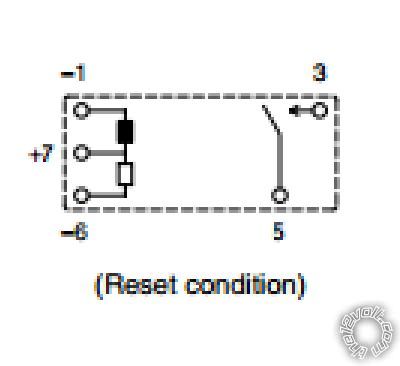

can anyone send me a link of this relay? How to Create a Ground While armed? - Page 2 -- posted image.

george20000

Member - Posts: 11

Joined: September 03, 2016

Location: Greece

Posted: September 04, 2016 at 1:48 PM / IP Logged

george20000 wrote:

can anyone send me a link of this relay and a diagram for simple relay? How to Create a Ground While armed? - Page 2 -- posted image.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: September 04, 2016 at 2:17 PM / IP Logged

We've already given you all the relevant information, part numbers, sources etc.

lurch228

Silver - Posts: 1,338

Joined: August 08, 2012

Posted: September 04, 2016 at 4:29 PM / IP Logged

A latching relay setup with simple relays are already on this site in the relay section. But are not non draw , ie they require voltage to maintain the connection that can drain the battery over time.

If you GOOGLE the part numbers ADW1212TW, G6CK-2114P-US-DC12, and G6CK-1117P-US-DC12 you will get all the links you want.

george20000

Member - Posts: 11

Joined: September 03, 2016

Location: Greece

Posted: September 04, 2016 at 7:11 PM / IP Logged

This relay can work?

http://www./itm/OMRON-MY2K-DC12-Dual-Coil-Latching-Relay-10Pin-DPDT-12V-/381020934133

lurch228

Silver - Posts: 1,338

Joined: August 08, 2012

Posted: September 04, 2016 at 8:38 PM / IP Logged

Yes it can but requires extra wiring for the +12v externally as the listed that we posted are internally connected. Also don't need all the extra connections for what you are using it for.

This is avaiable also and is cheaper. ADW1212TW

http://gr.mouser.com/ProductDetail/Panasonic-Industrial-Devices/ADW1212TW/?qs=RQeBXKCqX76WC9yMYwHr2A%3D%3D

george20000

Member - Posts: 11

Joined: September 03, 2016

Location: Greece

Posted: September 04, 2016 at 9:50 PM / IP Logged

How pin have this relay?can you send me a diagram?

lurch228

Silver - Posts: 1,338

Joined: August 08, 2012

Posted: September 04, 2016 at 11:12 PM / IP Logged

Which relay are you wanting a diagram for?

lurch228

Silver - Posts: 1,338

Joined: August 08, 2012

Posted: September 05, 2016 at 1:50 AM / IP Logged

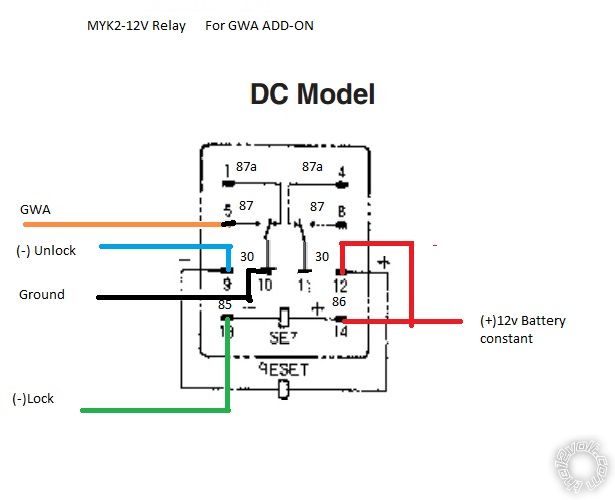

Diagram for your posted relay MYK2-DC12

You will need to use diodes to keep vehicle manual power lock/unlock from effecting the relay with band towards alarm and relay.

george20000

Member - Posts: 11

Joined: September 03, 2016

Location: Greece

Posted: September 05, 2016 at 8:16 AM / IP Logged

How pin have this relay?a diagram for this?

http://gr.mouser.com/ProductDetail/Panasonic-Industrial-Devices/ADW1212TW/?qs=RQeBXKCqX76WC9yMYwHr2A%3D%3D
