2018 Toyota Sienna LE Keypad Install


Post ReplyPost New Topic
< Prev Topic Next Topic >
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: May 14, 2018 at 8:28 PM / IP Logged
You could get a PAC TR-7 module and set it up in Mode 4 to take the add-on units single Unlock pulse and output a double pulse. That PAC TR-7 output connected to the Sienna's Blue Disarm wire will get all the doors unlocked with one code entry. PAC TR-7's can be had for $12, delivered, off EBay.
Here is a link to the PAC TR-7 install guide : https://www.the12volt.com/installbay/file.asp?ID=1031
Soldering is fun!
l_walker
Member - Posts: 16
Member spacespace
Joined: March 28, 2018
Location: United States
Posted: May 16, 2018 at 1:22 PM / IP Logged
Before you posted this, I ordered a Directed Electronics 452T. It was $10 shipped from the usual source. Not sure when I'll work up the motivation to hook it up and try it, but I'll report back when I do.
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: May 16, 2018 at 10:14 PM / IP Logged
The 452T is another option. Not sure what it's idle current draw is, so you might want to check that out. Everything you add to the vehicle uses power and you don't want your car battery going weak in a few days of non- use.
Soldering is fun!
jangelj
Member - Posts: 21
Member spacespace
Joined: September 05, 2006
Location: United States
Posted: June 20, 2018 at 11:07 AM / IP Logged
l_walker wrote:
Cool. Thanks!
Also, if anyone else is looking at this. Here are the other connections that worked for me
2018 Toyota Sienna LE Keypad Install - Page 4 -- posted image.
Thanks again for the info and this pic. I started to install today, but for the life of me I cannot get to the wiring harness in your pic. Did you remove the plastic housing around where the fuses are? Or did you loosen the body ECU and rotate it?
I am assuming this pic and the work was done from underneath th dash.
thanks!
jangelj
Member - Posts: 21
Member spacespace
Joined: September 05, 2006
Location: United States
Posted: June 20, 2018 at 11:35 AM / IP Logged
Never mind. I realized you removed the lower dash housing. I'm in. Thanks!
thanks!
l_walker
Member - Posts: 16
Member spacespace
Joined: March 28, 2018
Location: United States
Posted: June 20, 2018 at 11:35 AM / IP Logged
Yeah, you do have to do some disassembly. Check this post for instructions:
https://www.the12volt.com/installbay/forum_posts.asp?tid=139839
l_walker
Member - Posts: 16
Member spacespace
Joined: March 28, 2018
Location: United States
Posted: June 20, 2018 at 11:46 AM / IP Logged
BTW, about a week ago, I discovered there is still one glaring problem:
If you lock the car with the keypad, you cannot unlock it with the keypad. Locking it with the keypad requires my 6 digit PIN plus pressing 3/4. That's a pain, so I never did it. The only way I discovered this was by re-locking it by accident when I was trying to unlock it. I have since disconnected the lock pin so it can't happen again.
For problems like this, I hide a key in a magnetic box under the car.
jangelj
Member - Posts: 21
Member spacespace
Joined: September 05, 2006
Location: United States
Posted: June 20, 2018 at 1:32 PM / IP Logged
Sorry to bug you again, but there are several blue wires in the 30 pin harness. Can you tell me which one is 24?
thanks!
jangelj
Member - Posts: 21
Member spacespace
Joined: September 05, 2006
Location: United States
Posted: June 20, 2018 at 1:42 PM / IP Logged
Got the blue wire
Pins aren't numbered how I thought.
thanks!
l_walker
Member - Posts: 16
Member spacespace
Joined: March 28, 2018
Location: United States
Posted: June 20, 2018 at 3:50 PM / IP Logged

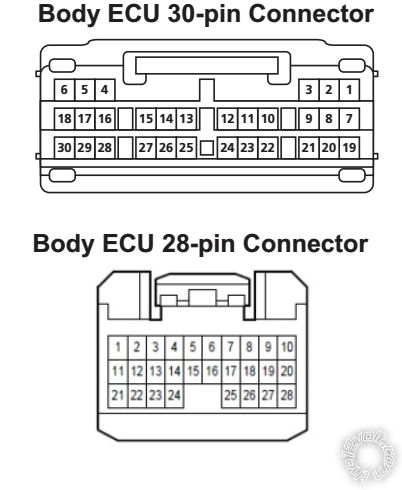

Just in case someone else needs it. 2018 Toyota Sienna LE Keypad Install - Page 4 -- posted image.
Page of 5
