Didn't realize the molex terminals and connectors could interchange. Plus terminal with mini-fit housing. Thanks
kramttocs
Member - Posts: 24
Member spacespace
Joined: January 20, 2020
Location: Missouri, United States
Posted: May 20, 2020 at 11:44 PM / IP Logged Link to Post Post Reply Quote kramttocs

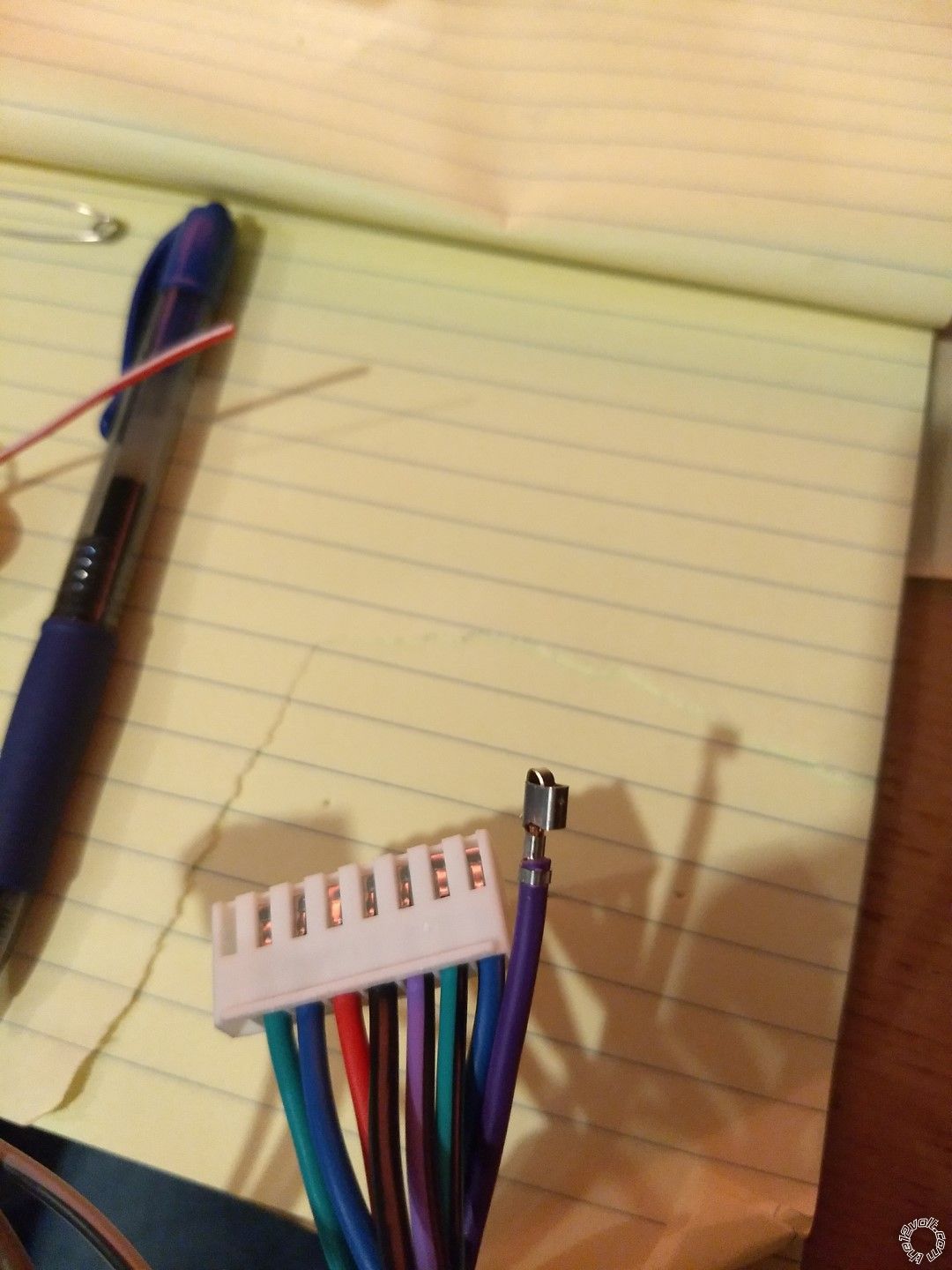

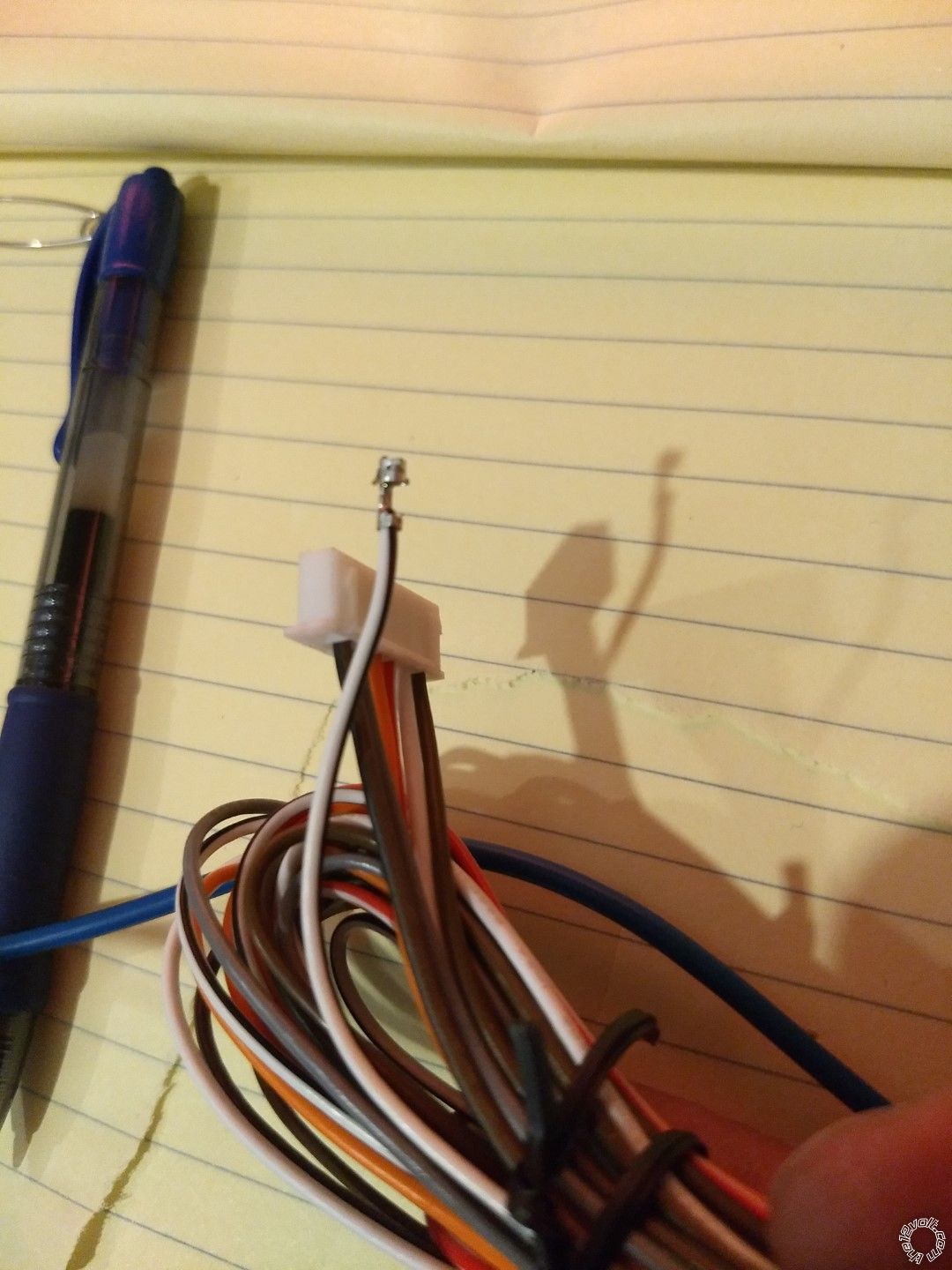

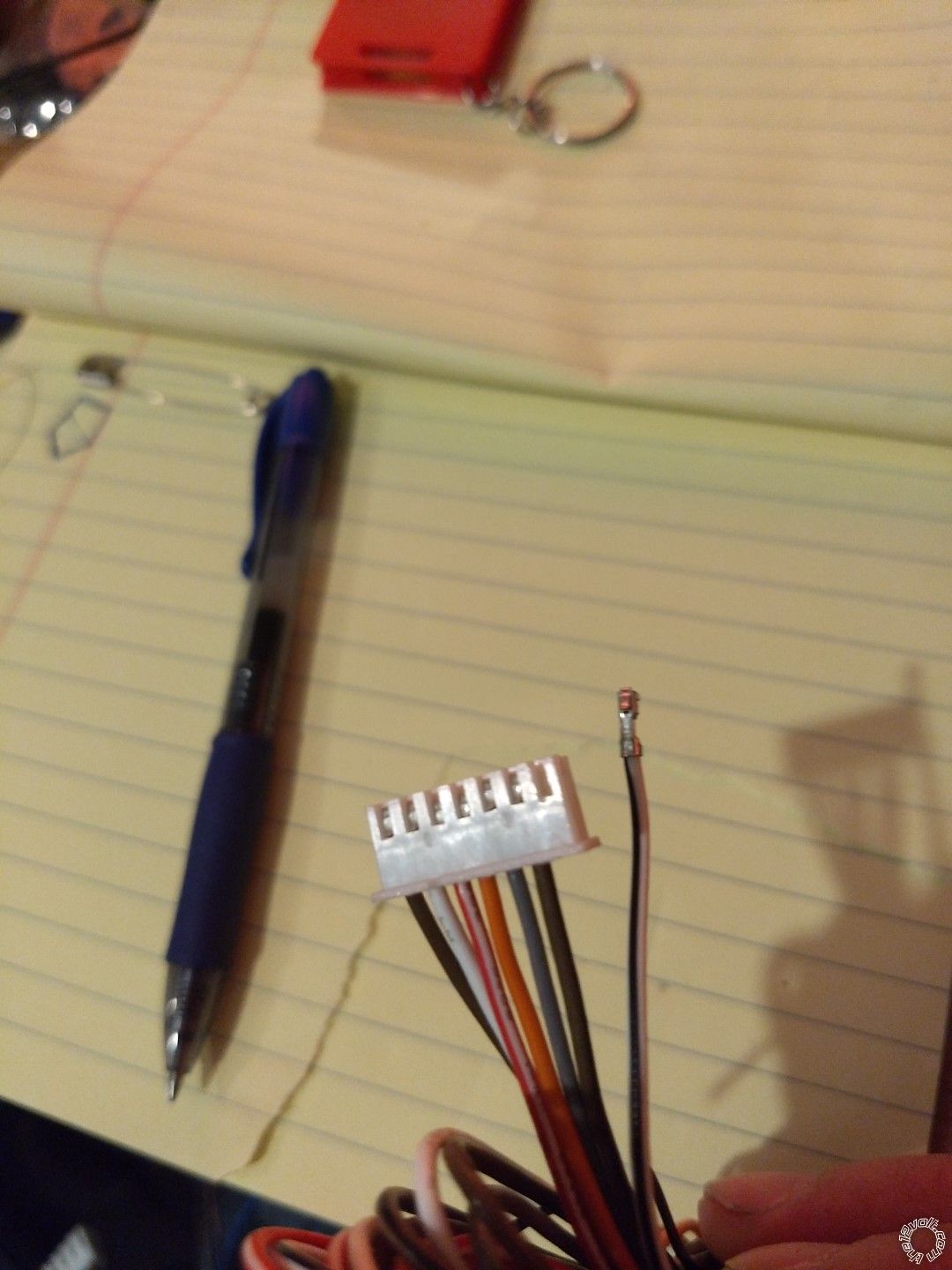

Finally installing these modules. Struggling with the 535T connectors. Been looking at photos (google and the jst site) but can't seem to find what I need to order.
Looks like there are just two. Same style but different sizes.
The small one is on a 22awg wire and the large one looks to be 14awg. Pictures aren't the greatest but I couldn't get my phone to focus any closer. Can find another camera if needed.
Viper/DEI Terminal Type - Page 2 -- posted image. Viper/DEI Terminal Type - Page 2 -- posted image. Viper/DEI Terminal Type - Page 2 -- posted image.
Photos don't seem to work so I've uploaded them to drive:
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: May 21, 2020 at 2:15 PM / IP Logged Link to Post Post Reply Quote geepherder
I can't see your pics, but found some decent one's on sonicelectronix:
The larger terminals look like they are SVH-41T-P1.1
I can't tell for sure (wrong angle), but the smaller ones may be SXH-001T-P0.6
My ex once told me I have a perfect face for radio.
kramttocs
Member - Posts: 24
Member spacespace
Joined: January 20, 2020
Location: Missouri, United States
Posted: May 21, 2020 at 2:58 PM / IP Logged Link to Post Post Reply Quote kramttocs
Thanks a lot! Really. I was having no luck at all. Just ordered some of both and will report back with confirmation when I get them.
