How To Transform An Intermittent Signal To A Constant One?


Post ReplyPost New Topic
< Prev Topic Next Topic >
saitch0
Member - Posts: 3
Member spacespace
Joined: September 05, 2021
Location: Quebec, Canada
Posted: September 05, 2021 at 7:46 PM / IP Logged Link to Post Post Reply Quote saitch0
Hi guys,
I want to use the intermittent signal of my blinkers and turn it into a constant signal to power cornering lights. I poked around and installing a capacitor is one of the solution. The draw of the cornering lights is about 1 amp.
I am pretty new to electronics but eager to learn. If I understand right I install a capacitor to the red wire that power the light and it will charge itself from the intermittent signal of the blinkers and it will be able to power the cornering lights when there is no power and making the signal constant. If I use capacitor that is too small it wont be able to hold enough power and there will still be an interruption in the signal. If I pick a capacitor that is too big it will power the circuit too long after the blinker signal is stopped. What size capacitor do you suggest so I can buy the correct set on amazon.
Vehicle is a Suzuki Carry if it matters.
Thanks
Ween
Platinum - Posts: 1,332
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: September 05, 2021 at 8:49 PM / IP Logged Link to Post Post Reply Quote Ween
This... https://www.the12volt.com/relays/relaydiagram22.html
With using the capacitor across the relay coil, the load current (cornering light) doesn't effect the 'on' time. The capacitor keeps the relay coil energized between flashes, and slightly after the turn signal is cancelled.
i am an idiot
Platinum - Posts: 13,470
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: September 05, 2021 at 9:30 PM / IP Logged Link to Post Post Reply Quote i am an idiot
saitch0
Member - Posts: 3
Member spacespace
Joined: September 05, 2021
Location: Quebec, Canada
Posted: September 06, 2021 at 9:05 AM / IP Logged Link to Post Post Reply Quote saitch0
Ok lets see if I understand everything.
The pink wire out of 86 represent the pulsed signal coming out of the flasher relay.
I need to connect one side of a 10k resistor and one side a 10kuf capacitor to that line. Then that line continues to my LED light.
I then need to link together the other side of the capacitor and resistor and ground them.
Resistor
Capacitor:
Are those the needed components?
Anyone can explain to me why I need to ground the capacitor and resistor and why a resistor is needed?
Thanks
Ween
Platinum - Posts: 1,332
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: September 06, 2021 at 5:06 PM / IP Logged Link to Post Post Reply Quote Ween
The resistor (10k ohms) isn't needed. The capacitor needs to be grounded so as to be able power the relay during the time when there isn't power being supplied through the diode. The diode is needed to isolate the power coming from the flasher. If it wasn't there, the capacitor would discharge into the front turn signal circuit.
saitch0
Member - Posts: 3
Member spacespace
Joined: September 05, 2021
Location: Quebec, Canada
Posted: September 07, 2021 at 1:26 PM / IP Logged Link to Post Post Reply Quote saitch0
Thanks Ween for the explanation. After more research I plan to go with those components:
Capacitor: Radial Electrolytic Capacitor 25V 10000UF 105C
Diode: HUABAN 1N5400 Rectifier Diode 3A 50V
Are those the right ones for my project?
Ween
Platinum - Posts: 1,332
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: September 07, 2021 at 9:23 PM / IP Logged Link to Post Post Reply Quote Ween
A 3A diode is a bit overkill for the project. 1N400* series diodes would be fine, !N4001 or !N4002.
pfix
Member - Posts: 2
Member spacespace
Joined: October 31, 2021
Location: Norway
Posted: October 31, 2021 at 11:26 AM / IP Logged Link to Post Post Reply Quote pfix

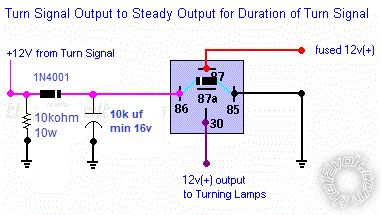

If u need a resistor to keep the blink-rate it may be solved like this
( modified version of : https://www.the12volt.com/relays/relaydiagram22.html )
If u got a LED blinker relay u don't need the 10k resistor
How To Transform An Intermittent Signal To A Constant One? -- posted image.
pfix
Member - Posts: 2
Member spacespace
Joined: October 31, 2021
Location: Norway
Posted: October 31, 2021 at 12:09 PM / IP Logged Link to Post Post Reply Quote pfix

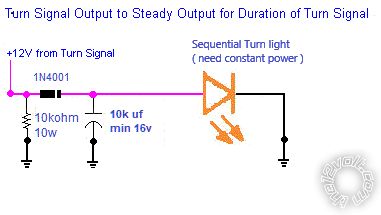

Here is what I used on a CBR1000 with "aftermarked" LED sequential rear turn-signals :
How To Transform An Intermittent Signal To A Constant One? -- posted image.
I plan to install LED's in the front turns also, then the 10k resistor will not be needed anymore :)
