Adding A Switch To Door Actuator With Compustar


Post ReplyPost New Topic
< Prev Topic Next Topic >
jdmegcoupe
Copper - Posts: 80
Copper spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: October 15, 2003
Location: Massachusetts, United States
Posted: August 01, 2022 at 8:54 PM / IP Logged Link to Post Post Reply Quote jdmegcoupe
Hello I’m trying to add a switch to my aftermarket actuator. I have a compustar alarm/ remote starter. I have keyless entry by adding the aftermarket 2 wire actuators. When I wired the switch, a 7 wire switch , it works for a few times then blows the fuse from the added fuse box I added for my accessories. If I disconnect the actuator from the harness that I made to go to the alarm/ remote start brain, the fuse does not blow. Do I need to add a diode to keep it from blowing? If so where do I add it?
Thanks
catback
Silver - Posts: 703
Silver spacespace
Joined: August 13, 2002
Location: Canada
Posted: August 04, 2022 at 11:13 AM / IP Logged Link to Post Post Reply Quote catback
Need more information. What compustar do you have? What aftermarket actuator? Does it (actuator) have a module or relay setup that goes with it? How is everything wired up/do you have a wiring diagram of your connections?
You don't need a diode but you do need to have things wired correctly so that things work without having a direct short condition which is what is blowing your fuse.
jdmegcoupe
Copper - Posts: 80
Copper spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: October 15, 2003
Location: Massachusetts, United States
Posted: August 04, 2022 at 1:10 PM / IP Logged Link to Post Post Reply Quote jdmegcoupe
CM7000AS, 2 wire actuators.

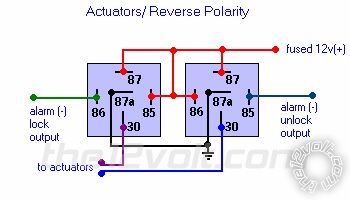

CN5 Pin 5 Blue/Light Green Lock 250mA (-) Negative output fort pulse for locking doors to pin 86 of Actuators/Reverse Polarity relay setup
CN5 Pin 7 Blue Unlock 250mA (-) Negative output for pulse unlocking doors to Pin 85 of Actuators/Reverse Polarity relay setup

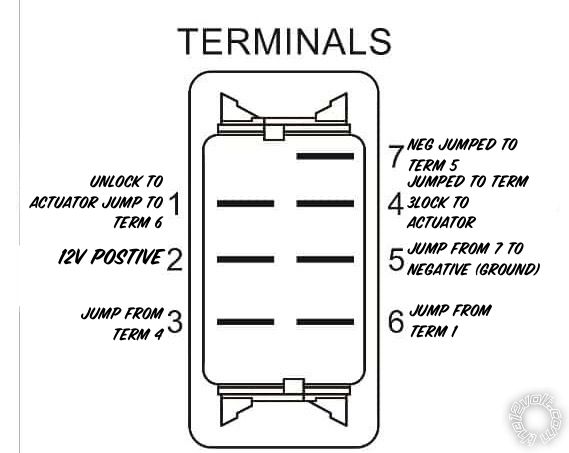

Switch is 7 wire Recoil LAS2 DPDT 20A 12V DC Motor Polarity Reversing Momentary Rocker Switch with Pigtail Wire Actuator Up/Down Blue LED
Adding A Switch To Door Actuator With Compustar -- posted image.
Adding A Switch To Door Actuator With Compustar -- posted image.
catback
Silver - Posts: 703
Silver spacespace
Joined: August 13, 2002
Location: Canada
Posted: August 06, 2022 at 9:33 AM / IP Logged Link to Post Post Reply Quote catback
You can't use that relay setup with that switch directly controlling the actuators. You either need two additional relays wired like this https://www.the12volt.com/relays/relaydiagram2.html or you need to rewire the switch to control the relays and not the actuators - Pin 2+5 to negative, Pin 1 to relay alarm (-) unlock output wire, Pin 6 to relay alarm (-) lock output wire, no jumpers.
