99 Honda Civic 2dr EX alarm

Home / the12volt's Install Bay / Car Security and Convenience / 99 Honda Civic 2dr EX alarm (

Topic Closed)

Welcome Guest :)

Members

< Prev Page Next Page > < Prev Topic Next Topic >

sparkie

Platinum - Posts: 2,061

Joined: November 06, 2003

Location: Canada

Posted: January 15, 2004 at 7:58 PM / IP Logged

The dorr trigger wire is light GREEN/ red (-). It can be found in the driver's kick panel or in a light green plug either behind or to the left of the radio. This plug is for the factory alarm.

sparky

krayzie2k3

Copper - Posts: 47

Joined: January 14, 2004

Location: United States

Posted: January 15, 2004 at 8:08 PM / IP Logged

is that for the left door or right door control to make it lock/unlock? thanks

auex

Platinum - Posts: 5,041

This member has made a donation to the12volt.com. Click here for more info.

Joined: December 23, 2002

Location: Arizona, United States

Posted: January 15, 2004 at 8:12 PM / IP Logged

The door triggers are not the lock wires. Here is a link to a diagram of your car.

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

turbodcivic99

Member - Posts: 4

Joined: January 15, 2004

Posted: January 15, 2004 at 11:06 PM / IP Logged

sorry for sounding so novice, but what is a door trigger? i understand that with door unlock/lock is where you attach the wires from the alarm harness. what does the door trigger do? thanks

Velocity Motors

Moderator - Posts: 12,488

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Fabrication. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: January 15, 2004 at 11:14 PM / IP Logged

The door trigger wire(s) tell the alarm that a door is open so that it will activate the alarm when it is armed.

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

Search for other posts by Velocity Motors

turbodcivic99

Member - Posts: 4

Joined: January 15, 2004

Posted: January 15, 2004 at 11:44 PM / IP Logged

ok, i understand that aspext.

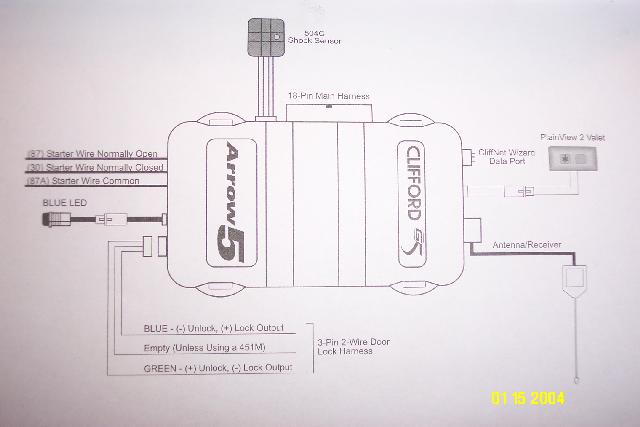

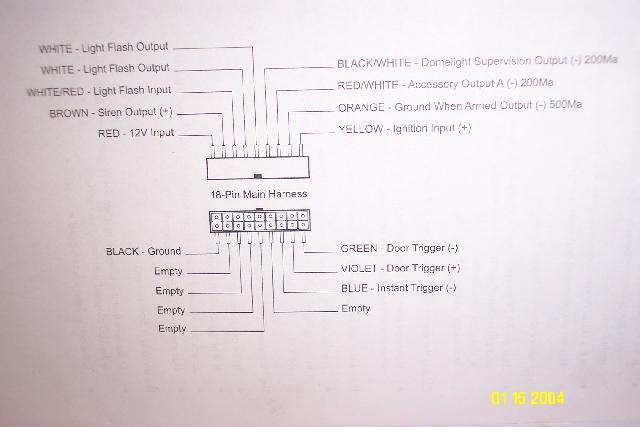

this is the diagram from the box http://www.geocities.com/sl_600_v12/clifford1.jpg and http://www.geocities.com/sl_600_v12/clifford1.jpg and im trying to make it work with my 99 ex https://www.the12volt.com/installbay/detail.asp?info=alarm&year=1999&make=Honda&model=Civic&ID=17975&type=Alarm

this is what i came up with so far:

harness | honda

ign yellow | BLACK/ white

instant trigger blue | blue/black

accessory RED / white | WHITE/ black

12v constant red | battery

horn brown | siren under hood

domelight dont care

starter black | BLACK/ white

light flash dont understand

door(guess) blue | GREEN / WHITE

Velocity Motors

Moderator - Posts: 12,488

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: January 16, 2004 at 9:28 AM / IP Logged

Not sure about that instant trigger wire ( maybe for the hood, trunk or any other (-) triggered spot on the car ). The only problem with the above list of colors is that ytour IGN wire is suppose to be BLACK / YELLOW at the ignition harness and your door trigger is supposed to be LIGHT GREEN/ RED at the OEM alarm plug to the right side of the steering column.

The light flash wire on the harness is suppose to go to the RED / BLACK wire at the keyless entry module ( white in color, and located in the drivers kick panel ). THis will flash the lights when locked and unlocked or keep them on when remote started.

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA

turbodcivic99

Member - Posts: 4

Joined: January 15, 2004

Posted: January 16, 2004 at 10:22 AM / IP Logged

is that for the light flash input or output?

turbodcivic99

Member - Posts: 4

Joined: January 15, 2004

Posted: January 16, 2004 at 10:41 AM / IP Logged

and for the door trigger, i connect the Green wire from the alarm to the Litght GREEN/ Red wire to the honda harness? and for the door lock/unlock i connect the GREEN / WHITE(-) to the Blue for the unlock and GREEN/ Orange(-) to the Green for unlock? thanks. i dont have to use diodes becuase the civic is internally relayed, correct me if im wrong.

Velocity Motors

Moderator - Posts: 12,488

Joined: March 08, 2002

Location: Manitoba, Canada

Posted: January 16, 2004 at 11:07 AM / IP Logged

The WHITE is suppose to go to the RED / BLACK at the at the keyless entry module. Yes, attach the GREEN from the alarm harness to the GREEN/ RED on the Honda. The door lock description you had is correct.

Jeff

Velocity Custom Home Theater

Mobile Audio/Video Specialist

Morden, Manitoba CANADA
