kenmci

Copper - Posts: 161

Joined: July 15, 2003

Location: United States

Posted: February 19, 2004 at 9:42 PM / IP Logged

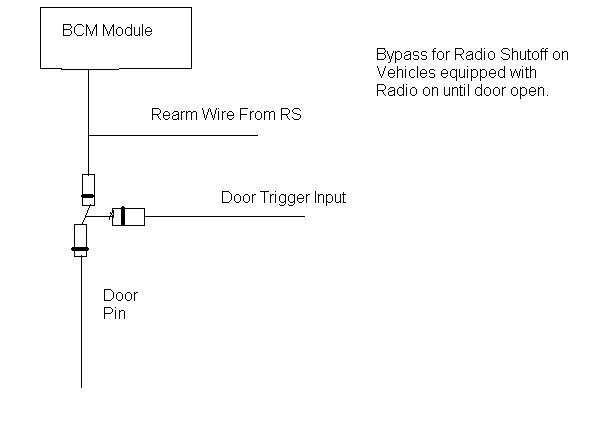

This might help a little, it will work if rearm pulse is negative and if door trigger is also negative, you should only have to do this on one door and it will work fine. Anyone please feel free to correct me if I am wrong and pm me so i know. I just think it right I have never tried this out. Keep in mind the wire going from door pin to BCM is the factory door trigger wire. If you need anything else let me know. I hope this helps. radio stays on need help - Page 2 -- posted image.

Back to Top

kenmci

Copper - Posts: 161

Joined: July 15, 2003

Location: United States

Posted: February 19, 2004 at 9:52 PM / IP Logged

Lower diode is not necessary unless you are diode isolating separate door triggers.

Back to Top

logger

Member - Posts: 14

Joined: December 28, 2002

Location: Canada

Posted: February 19, 2004 at 10:06 PM / IP Logged

so all I need to do is hit the BCM trigger wire with the rearm wire from the RS , right? because the door trigger wire is already installed with a diode as shown.

Back to Top

JWorm

Platinum - Posts: 2,208

Joined: December 11, 2002

Location: New Hampshire, United States

Posted: February 19, 2004 at 10:16 PM / IP Logged

The drivers door trigger gets CUT and a diode inserted in series. That would be the top diode in the diagram.

That probably wasn't done already

You probably already put in the diode on the right of the diagram. The bottom diode is not needed.

A total of 3 diodes get used. 2 for drivers door, 1 for passenger door. Pay careful attention to what side of the diode you connect the rearm wire to, or else it won't work.

Back to Top

logger

Member - Posts: 14

Joined: December 28, 2002

Location: Canada

Posted: February 19, 2004 at 10:28 PM / IP Logged

is the diagram correct for the placement of the rearm wire? between the diode and the BCM ?
