BumpNglow,

If looking for less expensive just stick to a thermal 3 terminal flasher. For upgrade to what is here look towards getting an electronic 3 terminal flasher. I once saw a electronic flasher that had a built-in Pot for adjustment. I personally would like to have one that gives out double pulses.

The more changes you make the more the cost to make. And there will come a time when the cost will be high enough that you might as well buy a premade unit.

(owner/installer)

Chase's Accessories

Ridgecrest, CA

in business since 92

Search for other posts by chasesaccessori

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: April 12, 2004 at 1:35 PM / IP Logged

Chase,

Is 87 or 87a being spliced to the light wire?

chasesaccessori

Copper - Posts: 198

Joined: August 22, 2002

Location: United States

Posted: April 12, 2004 at 2:06 PM / IP Logged

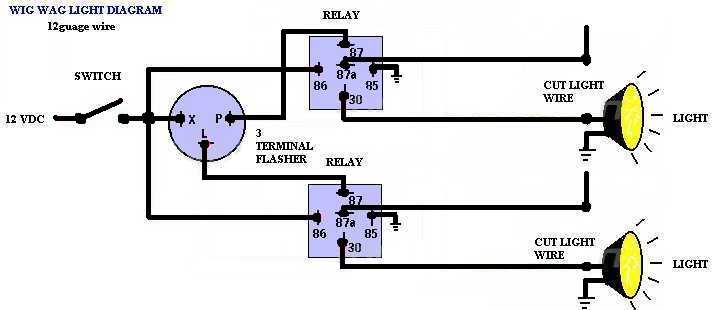

87a goes to lights switch

87 goes to the light

in converting from .bmp to .jpg the drawings loose their clearity. Sorry.

I'm in hopes that the12volt will take my sketch and redo it and post in in the Diagrams.

(owner/installer)

Chase's Accessories

Ridgecrest, CA

in business since 92

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: April 12, 2004 at 2:27 PM / IP Logged

thanks for even posting it. Appreciated

chasesaccessori

Copper - Posts: 198

Joined: August 22, 2002

Location: United States

Posted: April 14, 2004 at 10:00 AM / IP Logged

Wig-Wag Diagram - Page 2 -- posted image.

I corrected the wrong image. Sorry.

Thack79, Sorry I told you wrong. 30 goes to light and 87a goes to switch.

(owner/installer)

Chase's Accessories

Ridgecrest, CA

in business since 92

Thack79

Silver - Posts: 526

Joined: December 02, 2003

Location: Virginia, United States

Posted: April 15, 2004 at 7:22 AM / IP Logged

: ) no problems.

BumpNGlow

Member - Posts: 43

Joined: March 24, 2003

Location: United States

Posted: April 15, 2004 at 1:50 PM / IP Logged

I couldn't find any terminal flashers on allelectronics.com -- do you know what online place would have them?

chasesaccessori

Copper - Posts: 198

Joined: August 22, 2002

Location: United States

Posted: April 16, 2004 at 10:31 AM / IP Logged

BumpNglow,

terminal flashers?

I think what you need to be looking for is a (3)three terminal, Thermal flasher. (wagner #537, 12 volt, 3 terminal, thermal flasher)

a three terminal electronic flasher.

(owner/installer)

Chase's Accessories

Ridgecrest, CA

in business since 92

chasesaccessori

Copper - Posts: 198

Joined: August 22, 2002

Location: United States

Posted: April 16, 2004 at 10:43 AM / IP Logged

http://www.12voltdreams.com/it110005.html

I found these guys have them for $5. course I bought mine at Kragen for $3

(owner/installer)

Chase's Accessories

Ridgecrest, CA

in business since 92

chrias

Member - Posts: 7

Joined: May 26, 2003

Location: Canada

Posted: May 24, 2004 at 6:49 PM / IP Logged

Chase,

I followed your diagram to the T but it does not alternate the headlights on my 86 Grand Prix. It just flashes both lights at the same time. Any ideas as to what the problem may be?
