Monitor Install, 04 Avalanche w/sunroof


Post ReplyPost New Topic
< Prev Topic Next Topic >
t_smith3
Member - Posts: 1
Member spacespace
Joined: May 20, 2004
Location: United States
Posted: May 20, 2004 at 12:12 PM / IP Logged

I am planning on installing a 6.8" monitor in an Avalanche with sunroof.  Can someone please advise on how to mount monitor.  I did alot of car audio work in the past so the wiring shouldn't be a problem.  I am not sure the best way to mount unit.

Is there bars to fasten too or do they normally fasten to head liner on this size unit?

securinu
Silver - Posts: 772
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: September 15, 2002
Location: United States
2004
Member - Posts: 16
Member spacespace
Joined: February 20, 2004
Posted: May 24, 2004 at 10:37 AM / IP Logged

I believe the avalanche has the option of coming with a 7 inch factory drop down monitor / dvd, similar to the one that comes in the Escalade EXT, Silverado, and Tahoes. You may want to look into trying to get one of these. I know it will probably cost more, but it could be easier to install, since the holes and bars to bolt it to are probably already cut-out, but just hidden under the headliner. Although the wiring may be a bit more difficult.

Anyways, I know the ones installed in suburbans are mounted to bars, not just the headliner.

Hope this helps

rabenoja
Copper - Posts: 61
Copper spacespace
Joined: April 28, 2004
Location: United States
Posted: May 25, 2004 at 10:40 PM / IP Logged
There should be a metal brace in the headliner about 10 inches back from the dome light.  Also if you remove the domelight there is a metal sunroof brace that  can also be used.
audioconnection
Member - Posts: 45
Member spacespace
Joined: June 13, 2003
Location: United Kingdom
Posted: May 25, 2004 at 11:11 PM / IP Logged
go to autozone or a body shop and get some kitty hair that you mix like bondo...mix it on a small piece of wood that will fit between the metal of the roof and the headliner and press it up, when it dries you will have plenty to screw to and the monitor wont shake while driving.
remember...Friends Dont let friends Install, Take it to a pro..
NowYaKnow
Gold - Posts: 1,217
Gold spacespace
Joined: December 18, 2002
Posted: May 26, 2004 at 6:05 AM / IP Logged

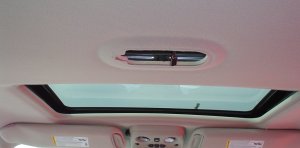

For an avalanche with a sunroof you want to first remove the domelight. Doing so reveals a factory beam which you can screw into. Look at the beam and note the low spots/dips in the beam. These are where you want to screw into. Position your tv accordingly so that the screw holes on your tv lineup with the grooves in the beam and mark the beam. Drill a 1/8" pilot holes in the beam and find screws that are just long enough to screw into the beam a few threads. Depending on the tv you will probably have to cut the domelight opening a little bigger.
Now for the other side of the tv you want to put a piece of wood on top of the headliner. Nothing crazy just small piece of 1/2" MDF maybe 3" x 10" or something again depending on your tv. Lineup your first holes with the tv and then mark the other holes on the headliner so you know where to position the wood. Cut out a portion of the headliner where your other holes are and secure the wood up there. Basically take some short screws and screw through the headliner into your wood to keep it in place. Otherwise you will never get a screw into the wood because you'll just be pushing it up.

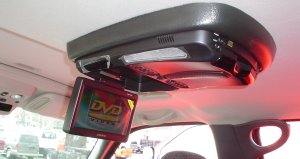

Once that's all done run your wires and put the tv in place once again, screw it up. After that VERY SLOWLY push the sunroof shade back to see if it hits anything or catches any screws. If so, back those screws out. Anytime you have a sunroof your not dealing with a lot of space which is why finding the right length screws is so important.
Good luck,
Mike
Monitor Install, 04 Avalanche w/sunroof - Last Post -- posted image.
Monitor Install, 04 Avalanche w/sunroof - Last Post -- posted image.
my12volts
Member - Posts: 36
Member spacespace
Joined: January 09, 2003
Posted: May 26, 2004 at 6:26 PM / IP Logged
You should take it to a local audio shop..They should do the entire install for around 250.00
tonyIrv
Member - Posts: 24
Member spacespace
Joined: May 10, 2004
Location: United States
Posted: May 26, 2004 at 9:30 PM / IP Logged
I paid $350 to have an over head installed in a Tahoe with sunroof.
