ksingh

Copper - Posts: 62

Joined: November 16, 2004

Posted: March 07, 2005 at 11:06 PM / IP Logged

installing a viper 791 on this vehicle, i am aware that you can use the remote to slide the doors on the vehicle can anyone please help me out on how to have the doors functioning the same with the viper alarm

if anyone have any info for ex: like wire diagrams on this vehicle and also any diagrams on how to wire up the doors to slide with the viper alarm i will appreciate that thanks again for your time fellas

Kenny

Back to Top

boomer_106

Silver - Posts: 710

Joined: November 25, 2003

Location: United States

Posted: March 08, 2005 at 1:32 AM / IP Logged

Not sure about the doors but here is the rest.

Honda

Odyssey

2005

Remote Starter Wiring Colors and Notes
Function	Vehicle Color	Location
Start:	BLACK/ White (+)	Ignition switch harness
Ignition #1:	BLACK / YELLOW (+)	Ignition switch harness*
Ignition #2:	BLACK/ Red(+)	Ignition switch harness
Ignition #3:	N/A	Ignition switch harness
Accessory:	WHITE/ Red(+)	Ignition switch harness
Brake Light:	WHITE/ Black (+)	Brake pedal switch
Tach Signal:	Not Yellow/Black(AC)	Any Fuel injector
Parking Lights:	RED / Black (+)	17 pin harness at the bottom of the fuse box
Headlights:	N/A
Diesel Glow Plug:	N/A
Clutch Bypass Wire:	N/A
Notes:	This vehicle is equipped with a Transponder Anti-Theft system. Use Universal Alarm Bypass Module part # 2x402 where X can be any number. You may also use Vehicle Specifit Bypass Module part # 23551. *The tach test connector is a 2 pin plug above the brake master cylinder.

Honda

Odyssey

2005

Alarm and Keyless Entry Wiring Colors and Notes
Function	Vehicle Color	Location
Constant +12 Volts:	White (+)	Ignition switch harness
OEM Alarm Disarm:	BLACK/ red or White	Drivers door module inside the door
Dome Lights/Superv:	BLACK/ Red (-)	Domelight on/off switch
OEM Horn:	Lt.GREEN/ YELLOW (-)	Steering column harness
Power Lock:	Not available
Power Unlock:	Not available
Trunk Release:	N/A
Alarm Input Wire:	BLACK/ Red (-)	Domelight on/off switch
Notes:	**See Note #201 Negative Trigger Door Locks

Back to Top

ken984

Copper - Posts: 78

Joined: February 25, 2005

Location: United States

Posted: March 08, 2005 at 4:03 PM / IP Logged

If youo have access to Mobile Electronics magazine the March 05 issue has the diagram on page 85.

It requires 4 relays the wires are easily located at the switch on the dash.

If i get a chance i will try to scan it and post it for you.

Back to Top

ken984

Copper - Posts: 78

Joined: February 25, 2005

Location: United States

Posted: March 08, 2005 at 4:17 PM / IP Logged

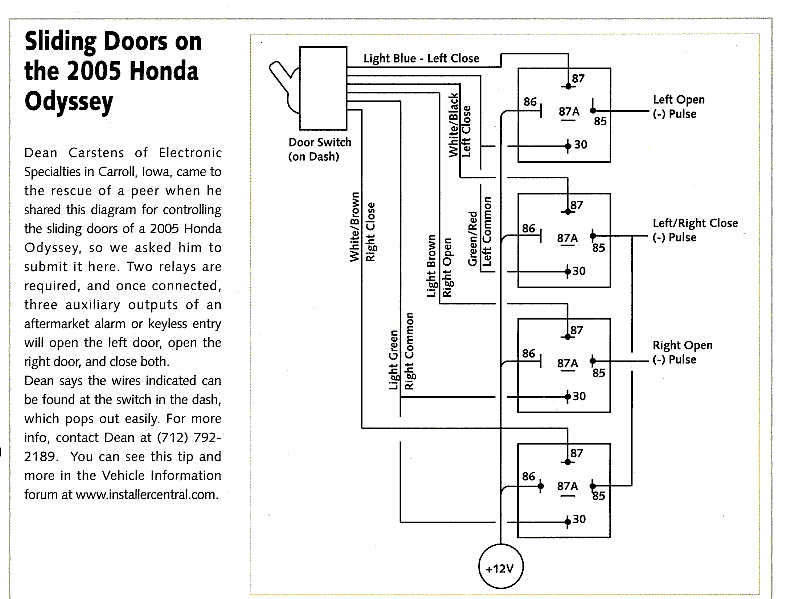

Here is the diagram. I hope, never posted a pic before.

2005 honda odessy, viper 791 -- posted image.

Back to Top
