2004 toyota tundra 4 door, locks

Home / the12volt's Install Bay / Car Security and Convenience / 2004 toyota tundra 4 door, locks (Topic Closed Topic Closed)
Welcome Guest :)

Post ReplyPost New Topic
< Prev Topic Next Topic >
hondastunt
Member - Posts: 2
Member spacespace
Joined: January 08, 2006
Location: United States
Posted: January 09, 2006 at 9:16 PM / IP Logged

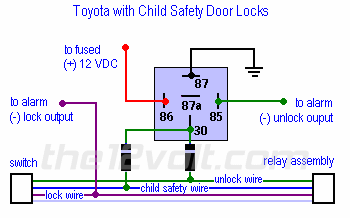

2004 toyota tundra 4 door, locks -- posted image.

what is used for this child safety door lock system? diode OR resistor

Chris Luongo
Platinum - Posts: 3,746
Platinum spaceThis member consistently provides reliable informationspace
Joined: May 21, 2002
Location: Massachusetts, United States
Posted: January 09, 2006 at 9:19 PM / IP Logged
The black pieces are diodes, but that is not the correct diagram for your Tundra. Hopefully someone will come along with a link to the right one.
mo12v
Platinum - Nominee - Posts: 2,748
Platinum - Nominee spaceThis member consistently provides reliable informationspace
Joined: September 30, 2003
Location: Afghanistan
Posted: January 09, 2006 at 9:30 PM / IP Logged
http://www.directechs.com/techtips/pdfs/resources/security/directed_techtips/1070.pdf
MO
Don't Learn from Others Mistakes
You Might Be the One That Knows.
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: January 10, 2006 at 6:31 AM / IP Logged
That diagram is for the 4 door Tundra only. If it's a 2 door or extended cab you use just negative pulse locks, WHITE/ green for lock and blue/red for unlock with a double pulse.
Mike M2
Tech Manager
CS Dealer Services
mo12v
Platinum - Nominee - Posts: 2,748
Platinum - Nominee spaceThis member consistently provides reliable informationspace
Joined: September 30, 2003
Location: Afghanistan
Posted: January 10, 2006 at 8:51 AM / IP Logged
HMMM............
Topic: 2004 toyota tundra 4 door
MO
Don't Learn from Others Mistakes
You Might Be the One That Knows.
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: January 10, 2006 at 4:45 PM / IP Logged
2004 toyota tundra 4 door, locks -- posted image. oh....yea.......
Mike M2
Tech Manager
CS Dealer Services
hondastunt
Member - Posts: 2
Member spacespace
Joined: January 08, 2006
Location: United States
Posted: January 11, 2006 at 1:38 AM / IP Logged
what size diodes do I use.
05gt
Silver - Posts: 628
Silver spacespace
Joined: October 30, 2005
Location: British Columbia, Canada
Posted: January 11, 2006 at 2:21 AM / IP Logged
just use the 1 ampers, they will be fine
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: January 11, 2006 at 6:33 AM / IP Logged
Also, you can use 12V from inside the door, you don't need to run it. Use the large blue wire on the back of the switch mod....
Mike M2
Tech Manager
CS Dealer Services

Sorry, you can NOT post a reply.
This topic is closed.
