Ford premium sound system


Post ReplyPost New Topic
< Prev Topic Next Topic >
pincky
Member - Posts: 25
Member spacespace
Joined: November 11, 2002
Location: United States
Posted: August 07, 2006 at 5:31 PM / IP Logged
I Have a ford premium sound system.
Its a Ford tape deck. I got a 4ch amp for it but i diden't get the ford bypass plug for it i just cliped all the wires and took the factory amp out

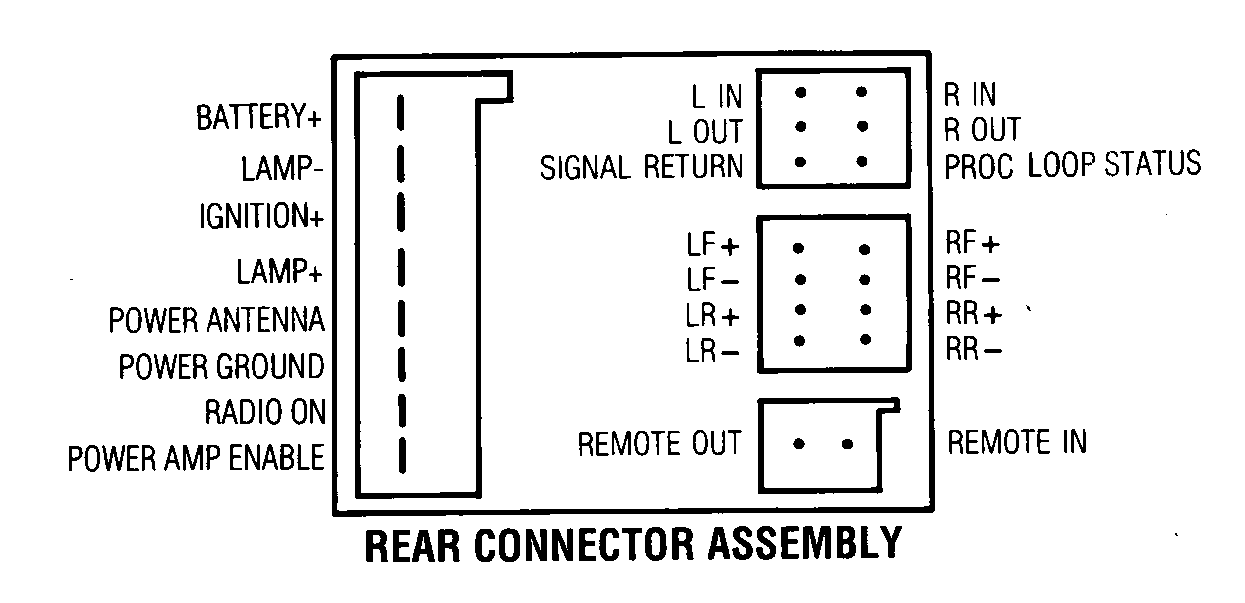

i bought 2 line out converters for it and i had a digram i found on the internet here
Ford premium sound system - Last Post -- posted image.
my question is
Everything is hooked up corectely but i got VERY low sound comming out of the speakers i have the level on the amp up and the level on the line out converters up.
I bareley hear anything on the speakers when i turn the radio volume all the way up.
now on that digram there a connector label radio ON am i suppose to have power going to that connecter or is that power comming out of that connector?
thanks!
vince
Velocity Motors
Moderator - Posts: 12,487
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Fabrication. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 08, 2002
Location: Manitoba, Canada
Posted: August 08, 2006 at 9:08 AM / IP Logged
What you should do is on the output side of the OEM amp you will find the speaker wires for all your speakers and hook up the appropriate wires to the speakers from this point. If you grabbed the signal before the OEM amplifier this will give you the low level signal. If you grab the wires after the OEM amp, you will have the high level signal.
Jeff
Velocity Custom Home Theater
Mobile Audio/Video Specialist
Morden, Manitoba CANADA
snoracer98
Member - Posts: 15
Member spacespace
Joined: May 11, 2005
Location: United States
Posted: August 08, 2006 at 3:08 PM / IP Logged
or i belive he could just solder the ends for rca's right onto the output of the radio in this case and that would give him the low outputs, skip the converter.. i belive you are trying to take low level outs and then run them threw a converter droping them even more.
pincky
Member - Posts: 25
Member spacespace
Joined: November 11, 2002
Location: United States
Posted: August 10, 2006 at 4:45 PM / IP Logged
I like that option i am going to try it and see what happends
thanks!
