Are all relays the same?


Post ReplyPost New Topic
< Prev Topic Next Topic >
hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: August 20, 2006 at 12:13 AM / IP Logged
I bought the DF005 relay from autozone to do the radio on until door open mod. But it is working the opposite way as it should. I have to start with the door open and to get the radio to turn off, I have to shut the door.
I am wondering if the layout of is different than the ones shown on the diagrams here.
Thanks
Hornshockey
Silver - Posts: 520
Silver spacespace
Joined: January 31, 2005
Location: Texas, United States
Posted: August 20, 2006 at 1:22 AM / IP Logged
sounds like your vehicle has positive doorpins.  What is the make/model/year?
Life moves pretty fast; if you don't stop and look around once in a while; you could miss it.
auex
Platinum - Posts: 5,041
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 23, 2002
Location: Arizona, United States
Posted: August 20, 2006 at 1:25 AM / IP Logged
Ford?
Certified Security Specialist
Always check info with a digital multimeter.
I promise to be good.
Tell Darwin I sent you.
I've been sick lately, sorry I won't be on much.
Hornshockey
Silver - Posts: 520
Silver spacespace
Joined: January 31, 2005
Location: Texas, United States
Posted: August 20, 2006 at 1:34 AM / IP Logged
that's the only make I can think of off the top of my head that uses positive doorpins
Life moves pretty fast; if you don't stop and look around once in a while; you could miss it.
hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: August 20, 2006 at 2:13 AM / IP Logged
My car is a 2005 Nissan Altima. If it does have positive door triggers, how would I get around that??
hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: August 20, 2006 at 2:16 AM / IP Logged
Either that, or could it be that one of the relays is not working properly???? But it does do what it's supposed to, except in the opposite order.
Hornshockey
Silver - Posts: 520
Silver spacespace
Joined: January 31, 2005
Location: Texas, United States
Posted: August 20, 2006 at 2:35 AM / IP Logged

that car should have negative door pins

your post made it sound as though you're only using one relay; if that's the case you should be using two or three depending on whether or not you're isolating the radio from the rest of the accessory circuit.

if you are using the correct setup, perhaps you had inadvertently connected the wire from terminal 86 on the left-hand relay to the 87 terminal instead of 87a on the right-hand relay?  that would have the result you're describing.

Life moves pretty fast; if you don't stop and look around once in a while; you could miss it.
hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: August 20, 2006 at 2:58 AM / IP Logged
I'm using two relays as the diagram states to do. I followed it and I don't think I wired it incorrectly, but I will check it again to make sure.
hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: August 20, 2006 at 3:05 AM / IP Logged

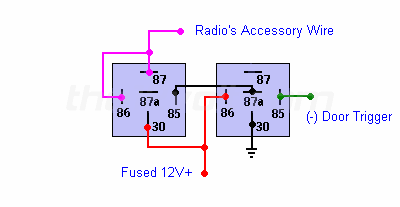

This is the diagram I used:
https://www.the12volt.com/relays/page5.asp#drto Are all relays the same? -- posted image.
hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: August 20, 2006 at 3:20 PM / IP Logged
I just noticed that the relay I am using does not have and 87 and an 87a........they are both 87's, and the little diagram on top of the relay has both 87's connected together, so it is basically the same point. I am guessing that is why my setup is working in the opposite direction.
