2 12w6v2 to alpine pdx 1000


Post ReplyPost New Topic
< Prev Topic Next Topic >
adrian314
Member - Posts: 6
Member spacespace
Joined: October 08, 2006
Location: United States
Posted: October 18, 2006 at 12:14 PM / IP Logged

Topic is self explanatory. How do I wire these two DVC subs to this amp? With Jumper positioning on the subs.

jumpers on subs(page 3) http://mobile.jlaudio.com/pdfs/7876.pdf

sub http://mobile.jlaudio.com/products_subs.php?series_id=4

amp http://www.alpine-usa.com/en/products/product.php?model=PDX-1.1000&lang=en&tab=F

Thank you very much

hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: October 18, 2006 at 1:28 PM / IP Logged
Wire the subs' voice coils in series (Like Diagram A), to make each sub 8 ohms, then wire the subs in parallel at the amp, since it is a mono amp, only one channel. The amp should see a total impedance of 4 ohms; it puts out the same power at 2 ohms and 4 ohms, so it should be fine.
I have mine wired like I told you, but I am using the JL Audio 500/1, yours just puts out a bit more power.
adrian314
Member - Posts: 6
Member spacespace
Joined: October 08, 2006
Location: United States
Posted: October 18, 2006 at 2:00 PM / IP Logged

I appreciate the reply but what do you mean wire in parallel at the amp?

hemanjoyman
Copper - Posts: 77
Copper spacespace
Joined: August 18, 2006
Location: United States
Posted: October 18, 2006 at 2:36 PM / IP Logged
Take the wire from the 1st sub (+ and -), and connect it to the amps (+ and -), then take the wire from the second sub and connect it to the same points on the amp (+ and -)...so both subs plus and minus will be going to the the same plus and minus on the amp.

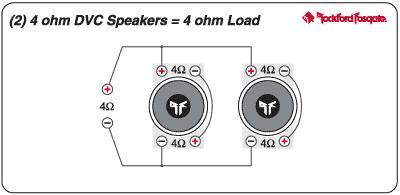

Like the picture I am uploading for you:2 12w6v2 to alpine pdx 1000 -- posted image.
