compustar dome light 06 f150


Post ReplyPost New Topic
< Prev Topic Next Topic >
TooDark
Copper - Posts: 163
Copper spacespace
Joined: September 10, 2002
Location: United States
Posted: November 17, 2012 at 9:41 AM / IP Logged
What wire on remote starter would be used to have dome light when truck is unlocked and will there have to be a change in any of the settings?
Thanks
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: November 17, 2012 at 11:56 AM / IP Logged
Just looked at 500 and 600 series.
Doesn't appear to be a dome light supervision wire.
Does your dome light come on when you unlock the vehicle.
If so you don't need it.

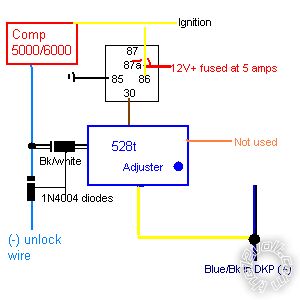

If not wire like so using a 528t timer relay from DEI set for 1 minute:-

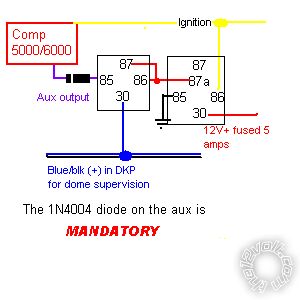

2nd. Method would be to take an aux output program it if you can for 1 minute to come on with unlock and wire as follows. BA3_f150_dome.bmp
In the first picture the upper relay shuts the dome off once you engage ignition.
In the second diagram the left hand relay changes the aux wire polarity from NEG (-) to POS (+) and the right hand relay again shuts the dome light off with ignition.
I've shown a 4 pin relay on the left and a 5 pin on the right. You can use 5 pin for both (more commonly available, R/Shack, Auto parts etc.), just don't use 87a on the left relay.
ERROR! Sorry, the first diagram should also have a red and a black wire on the 528t. The red goes to 87a on the upper relay, the black to ground (85 on the upper relay).
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: November 17, 2012 at 1:37 PM / IP Logged

You probably don't need it on that truck but...

If you have the CM5x00 or CM6x00 series and the OP-500 programmer, you can use any unused POC output on CN2 by programming it to Option 9.

Soldering is fun!
TooDark
Copper - Posts: 163
Copper spacespace
Joined: September 10, 2002
Location: United States
Posted: November 17, 2012 at 2:22 PM / IP Logged
kreg357 wrote:

You probably don't need it on that truck but...

If you have the CM5x00 or CM6x00 series and the OP-500 programmer, you can use any unused POC output on CN2 by programming it to Option 9.

Thanks,that is what I was looking for.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: November 17, 2012 at 4:04 PM / IP Logged
Which would of course be my second diagram.
Left hand relay to change the polarity, right hand to turn off the dome light with ignition.
kreg357
Platinum - Posts: 7,781
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: November 17, 2012 at 4:13 PM / IP Logged
Teamwork in action!    compustar dome light 06 f150 -- posted image.
Soldering is fun!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: November 17, 2012 at 4:26 PM / IP Logged
That wouldn't be a dig at a certain soccer non-team would it?
Paranoia aside the last laugh is when we get rid of our POS manager we snatch Klinsmann the US manager, he is after all a Spurs ex-player (A Jew by adoption).
