New member, new keyless and first


Post ReplyPost New Topic
< Prev Topic Next Topic >
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: July 30, 2016 at 7:38 PM / IP Logged Link to Post Post Reply Quote lurch228
You will need to follow what I posted above using either 5A diodes or relays and I prefer the constant light output for remote start indication, lights will still flash when locking or unlocking. Flashing the Bosch lights is not good for there longevity either. Using diodes is less wiring and parts as the unit can handle up 15A positive output. The way you have it now you are risking frying the light control in the Code Alarm powering all those lights.
thorvald
Member - Posts: 17
Member spacespace
Joined: July 27, 2016
Location: Norway
Posted: July 31, 2016 at 7:32 AM / IP Logged Link to Post Post Reply Quote thorvald
Thank you so much for the help. Then I have ordered some diodes.
I hope I can ask you one more question.
I thought all was good, but it might have done some damages wired the way it was. All of a sudden the Montero Sport are missing one rear left tail light. The right one is still there. The strange thing is that there is 12 volt to the lamp socket, but when I insert a bulb, the 12 signal drops out. It comes back when I remove the bulb.
I have no disconnected the Code Alarm waiting for the diodes, so thats not the problem at this point.
What could cause this?

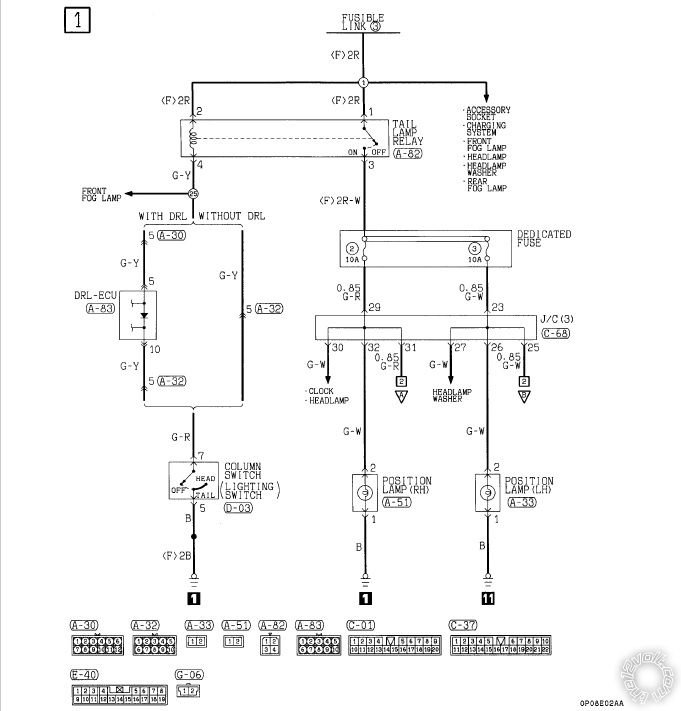

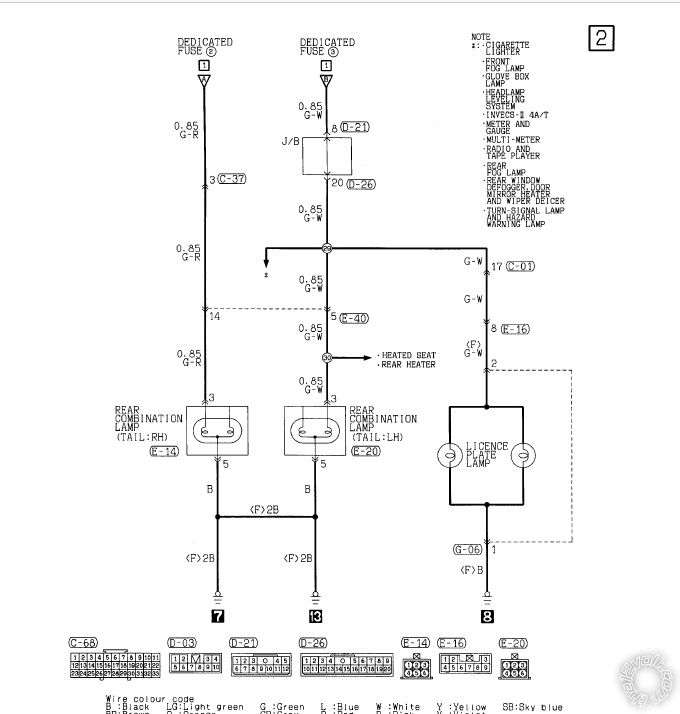

Wiring diagram:
New member, new keyless and first - Page 2 -- posted image.
New member, new keyless and first - Page 2 -- posted image.
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: July 31, 2016 at 7:57 AM / IP Logged Link to Post Post Reply Quote lurch228
Sounds like blown dedicated fuse #3 10 Amp. Grounds are tied after tail, so with no bulb you can registrar 12v from right hand tail to chassis ground. Putting bulb re connects everything connected between right ground and fuse if blown. If fuse is good. One other thing is to make sure bulb filament isn't broken and shorted to the other inside the bulb, since it is a combination lamp/tail.
thorvald
Member - Posts: 17
Member spacespace
Joined: July 27, 2016
Location: Norway
Posted: July 31, 2016 at 8:33 AM / IP Logged Link to Post Post Reply Quote thorvald
Fuse is not blown. Tried 3 different bulbs, also the one bulb proven OK at the right side. Right comb lamp functions as it should.
As soon as I connect the bulb, it looses 12v.
Could I have fried some wires the way it was wired, making a short when I insert a bulb?
thorvald
Member - Posts: 17
Member spacespace
Joined: July 27, 2016
Location: Norway
Posted: July 31, 2016 at 8:46 AM / IP Logged Link to Post Post Reply Quote thorvald
Licence plate lamp tied onto the same wire, functions as it should
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: July 31, 2016 at 9:17 AM / IP Logged Link to Post Post Reply Quote lurch228
With bulb out and lights off check plug for continuity to ground. Then turn lights back on and test other connectors that weren't for +12v to chassis ground.
thorvald
Member - Posts: 17
Member spacespace
Joined: July 27, 2016
Location: Norway
Posted: July 31, 2016 at 9:50 AM / IP Logged Link to Post Post Reply Quote thorvald
At the known good side there are continuity between brake and ground, also between taillight and ground. At the left problem side there are only continuity between ground and one of the circuits.
thorvald
Member - Posts: 17
Member spacespace
Joined: July 27, 2016
Location: Norway
Posted: July 31, 2016 at 9:52 AM / IP Logged Link to Post Post Reply Quote thorvald
This with lights off
thorvald
Member - Posts: 17
Member spacespace
Joined: July 27, 2016
Location: Norway
Posted: July 31, 2016 at 10:39 AM / IP Logged Link to Post Post Reply Quote thorvald
Did some more checking and it is the left problem side taillight that has no continuity when power off. Brake light has continuity power off. Right side has continuity on both circuit continuity.
thorvald
Member - Posts: 17
Member spacespace
Joined: July 27, 2016
Location: Norway
Posted: July 31, 2016 at 4:27 PM / IP Logged Link to Post Post Reply Quote thorvald
Spent most of the day trying to fix this but at this point I'm stuck
